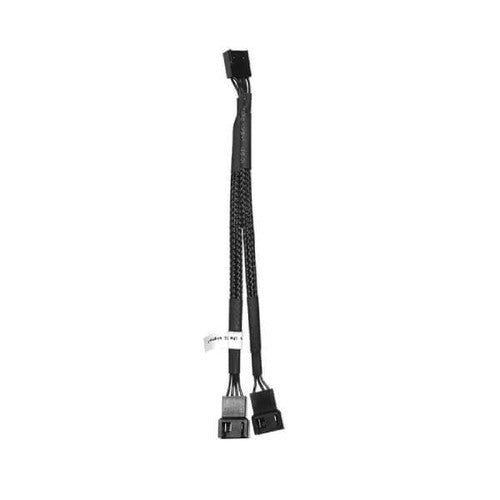

The Motherboard Adaptor Y-Type Cable is for users wanting to connect the UNI FANs directly to the motherboard, bypassing the UNI HUB.
The cable is compatible with ASUS, MSI, GIGABYTE, and ASROCK addressable RGB motherboard.

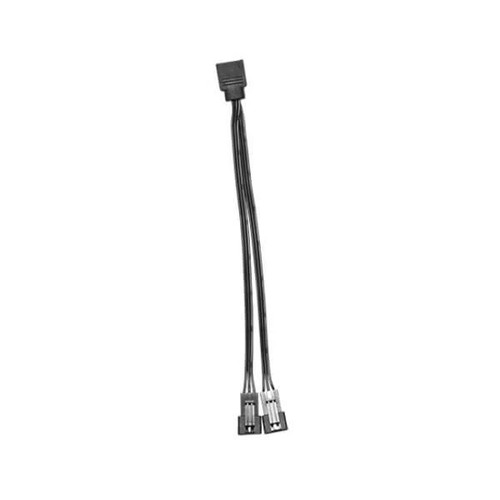

Y-TYPE 3P SIGNAL CABLE LIGHT BAR

EXTENSION CABLE(3P) FAN LED

EXTENSION CABLE(4P)

ARGB header for light effect synchronization
Compatible with all motherboard supporting ARGB
Control the UNI FAN lighting modes via the motherboard

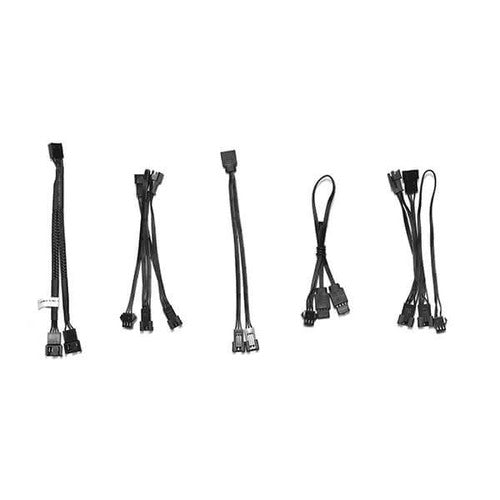

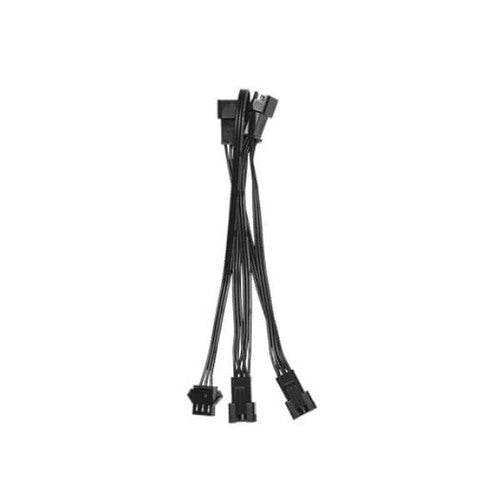

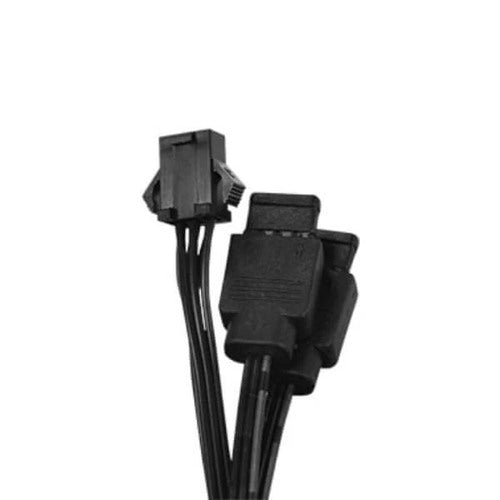

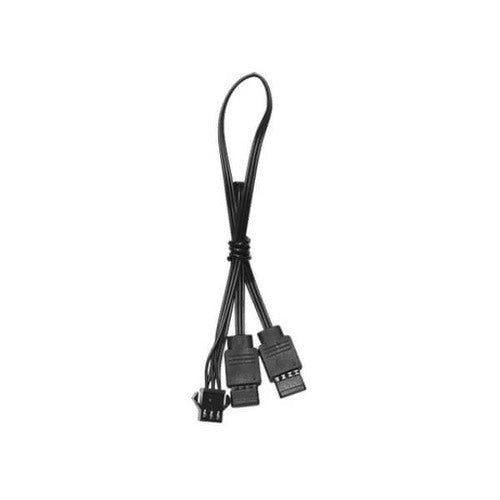

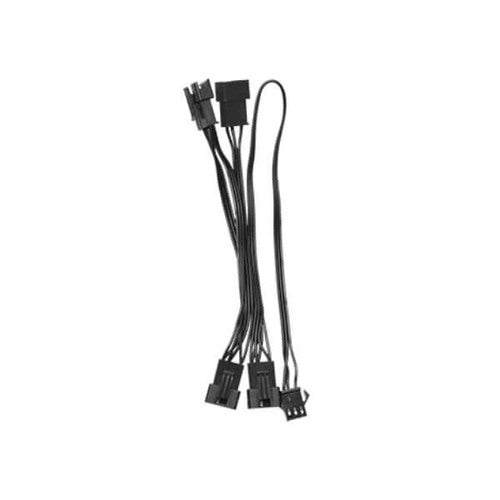

Those three cables are extension ARGB cables to connect to the UNI HUB. Each cable supports different products, depending on which connector fits. Cables could also connect to motherboard directly through Motherboard Adaptor Y-Type Cable.

NOTE: Every single group of UNI HUB supports up to 10W and the number of LEDs cannot exceed 100 pcs. Please find bellow a chart which references how many LEDs each product has.
Please note that it is not recommended to operate all LEDs in white color.

Please be aware, when connecting the Strimer Plus controller to the UNI HUB via a Y-Type 3P signal cable, do not connect other devices to the other pin to avoid in sufficient power.

Note: It may cause Strimer Plus 8/24/TRIPLE 8 PINS LEDs glimmer due to insufficient signal from motherboard when trying to synchronize with the motherboard, during this specific connection.

If user would like to synchronize the Strimer Plus 8/24/TRIPLE 8 PINS LEDs with the motherboard, recommend to connect Strimer Plus controller 5v header directly to the motherboard.
