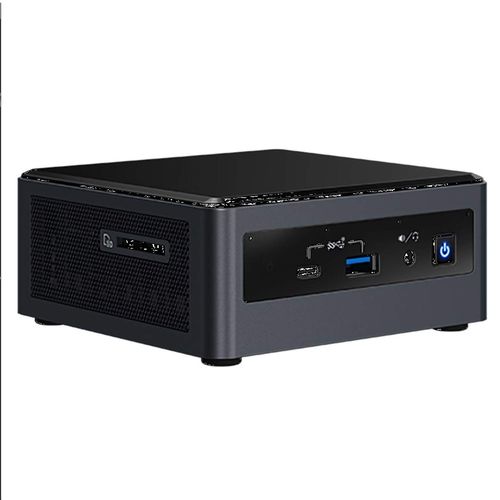

Intel NUC 10 NUC10i7FNH Barebone Kit

Features of Intel NUC 10 NUC10i7FNH Barebone Kit

1. 10th Generation Intel Core i7-10710U Processor, 1.1 GHz – 4.7 GHz Turbo, 6 core, 12 thread, 12 MB Cache, 25W. Intel UHD Graphics, 300 MHz – 1.15 GHz.
2. Dual-channel DDR4 SODIMM slots , M.2 22x42/80 slot, 2.5" 7mm SATA drive bay.

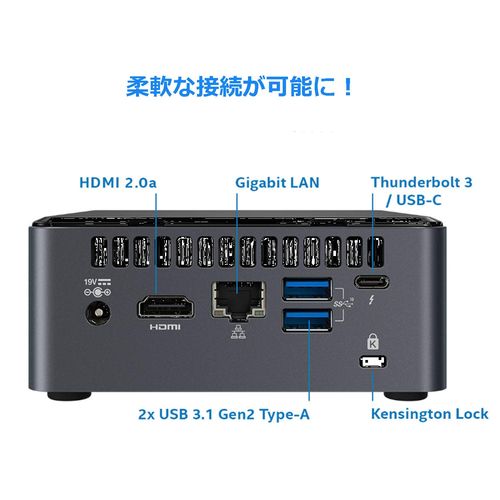

3. HDMI* 2.0a, ThunderboltTM 3, Front USB 3.1 Gen2 Type-C Port (fast charging), 2 USB 3.1 Gen2 Ports,
4. Intel WiFi 6 and Bluetooth* v5, Intel Gigabit LAN, SDXC Card Slot, Consumer Infrared Sensor, Kensington Lock Ready, 3-Year Limited Warranty
5. Power supply adapter (19V DC 120W) is included. Power Cord is included.

Processor

maximum 25 W TDP, 2.1 GHz base, 4.1 GHz Turbo, 4 threads
• Intel® UHD Graphics
• 4 MB Intel® Smart Cache
• Integrated memory controller
• Integrated PCH
• A soldered-down 10th generation Intel® Core™ i5-10210U quad-core processor with a
maximum 25 W TDP, 1.6 GHz base, 4.2 GHz Turbo, 8 threads
• Intel® UHD Graphics
• 6 MB Intel® Smart Cache
• Integrated memory controller
• Integrated PCH
• A soldered-down 10th generation Intel® Core™ i7-10710U six-core processor with a
maximum 25 W TDP, 1.1 GHz base, 4.7 GHz Turbo, 12 threads
• Intel® UHD Graphics
• 12MB Intel® Smart Cache
• Integrated memory controller
• Integrated PCH

Memory

• Two 260-pin 1.2 V DDR4 SDRAM Small Outline Dual Inline Memory Module (SO-DIMM)
sockets
• Support for DDR4 2666 MHz SO-DIMMs
• Support for 8 Gb and 16 Gb memory technology†
• Support for up to 64 GB of system memory with two SO-DIMMs using 16 Gb memory
technology†
• Support for non-ECC memory
• Support for 1.2 V low voltage JEDEC memory only
Note: 2 Gb and 4 Gb memory technology (SDRAM Density) is not compatible

Graphics

• Integrated graphics support for processors with Intel® Graphics Technology:
• One High Definition Multimedia Interface* (HDMI*) v2.0b back panel connector
• One DisplayPort signal via USB Type C back panel connector

Audio

• Intel® High Definition (Intel® HD) Audio via the HDMI and USB Type C interfaces through
the processor
• Realtek HD Audio via a stereo microphone/headphone 3.5 mm jack on the front panel††
• Quad digital microphone array (DMICS) connector (internal)

Storage

• SATA ports:
One SATA 6.0 Gbps port (black) for 2.5“ storage device
• One SATA 6.0 Gbps port is reserved for an M.2 storage module supporting M.2 2242 and
M.2 2280 (key type M) modules
Note: Supports key type M (PCI Express* x4 and SATA)

Expansion Capabilities

• One M.2 connector supporting M.2 2242 and M.2 2280 (key type M) modules
• One Standard SDXC slot
• One Thunderbolt™ 3 via back panel USB Type C connector

Peripheral Interfaces

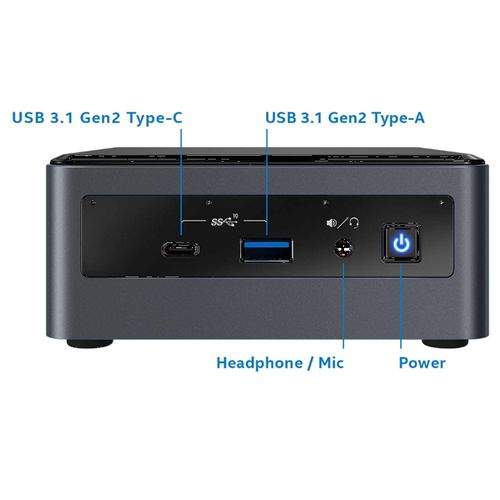

• USB 3.1 (Gen 2/10 Gbps) Type C ports:
• One port is implemented via the external front panel Type C connector
• One port is implemented via the external back panel Type C connector
• USB 3.1 (Gen 2/10 Gbps) Type A ports:
• One port is implemented via the external front panel connectors (blue)
• Two ports are implemented via the external back panel connectors (blue)
• USB 2.0 ports:
• Two ports via two single-port internal 1x4 1.25 mm pitch headers (white)
• One port is reserved for the NGFF 1216 Wireless module Bluetooth capability
• Consumer Infrared (CIR)

Specifications of Intel NUC 10 NUC10i7FNH Barebone Kit
