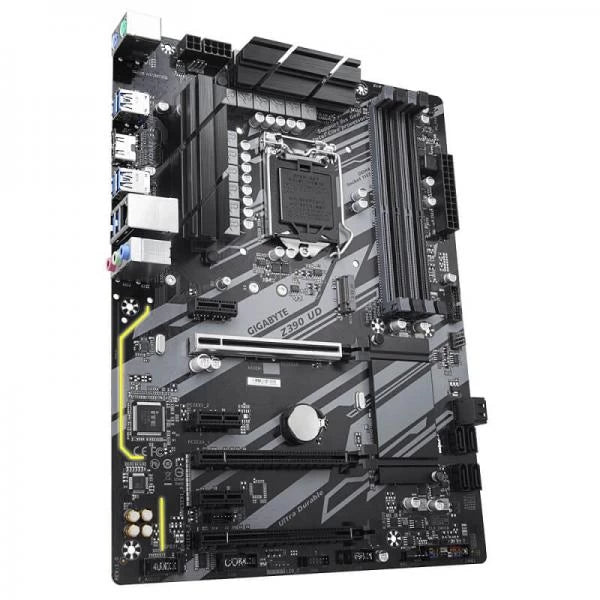

GIGABYTE Z390 UD DDR4 Intel Motherboard

Feature of Gigabyte Z390 UD DDR4

Supports 9th and 8th Gen Intel® Core™ Processors

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

New 10+2 Phases Digital PWM Design

NVMe PCIe Gen3 x4 22110 M.2 Connector

Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

Support RGB Light Strip in Full Colors

CEC 2019 Ready, Save Power With a Simple Click

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

Lightning-Fast Intel® Thunderbolt™ 3 AIC Support

Intel® Optane™ Memory Ready

Storage and Memory

One M.2 slot is available, supporting up to type 22110 SATA and PCIe NVMe SSDs.
Six SATA III headers are available for hard drives and 2.5" SSDs.
RAID 0, 1, 5, and 10 configurations are supported.
Intel Optane memory modules are supported, which enhance mechanical disk drives by caching frequently accessed data.
Up to 128GB of dual-channel DDR4-4266 (OC) memory can be installed across four slots.

Enhanced Cooling

Smart Fan 5 allows users to interchange fan headers to correspond with the thermal sensors located across the motherboard so that the system stays cool while maintaining a high level of performance for games and other demanding applications.
Fan Stop lets you to take control of your computer's noise level by allowing specified fans to halt when the system drops to a designated temperature level. These settings may be customized according to your preferences.
Hybrid Fan Headers automatically detect the connected liquid- or air-cooling systems, enabling Smart Fan 5 to monitor information such as flow-rate.

Performance Features

The GIGABYTE Z390 UD DDR4 features a digital PWM controller with Low RDS(on) MOSFET, which includes 10+2 phases that efficiently provide power to critical components.

AMD CrossFireX Support

Installing multiple graphics cards will enhance the computer's performance for demanding tasks such as CAD, 3D rendering, video editing, and more. This motherboard supports Quad-GPU and 2-Way AMD CrossFireX configurations.

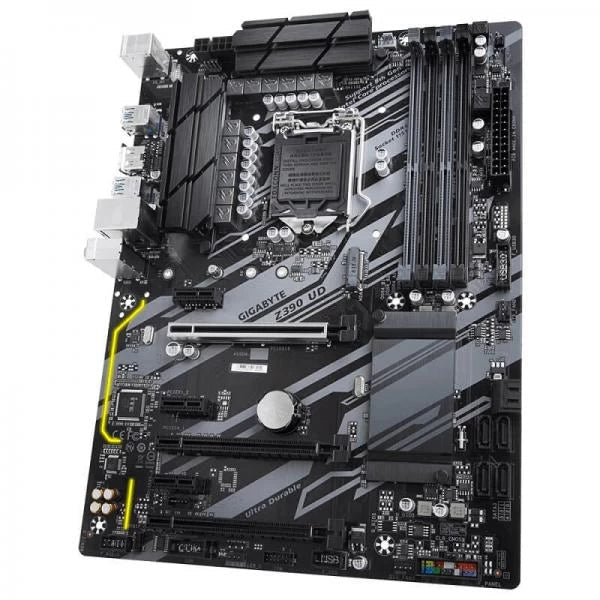

Designed for Durability

Double locking brackets keep PCIe slots securely affixed to the motherboard.
A stainless steel shield reinforces the PCIe connectors, providing extra strength to support heavy graphics cards.
Solid plated ATX 24-pin and 8-pin power connectors deliver a stable power supply to key components.

Immersive Audio

The Realtek ALC887 audio codec provides vibrant 7.1-channel surround sound.
High-quality, durable capacitors help to deliver clear sound to audio equipment.
A noise guard separates the board's sensitive audio components from areas that may cause interference and noise pollution.

Network Performance

The Gigabit Ethernet port provides a fast network connection with high-speed data transfers using compatible devices.

RGB Lighting

You can customize your computer by installing an RGB lighting strip alongside compatible components and peripherals for incredible effects.

Specifications of Gigabyte Z390 UD DDR4

CPU

Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel®Core™ i3 processors/Intel® Pentium® processors/
Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU

Chipset

Intel® Z390 Express Chipset

Memory

4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Actual support may vary by CPU.

Audio

Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Interface

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready

Multi-Graphics Technology

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

USB

8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports available through the internal USB header

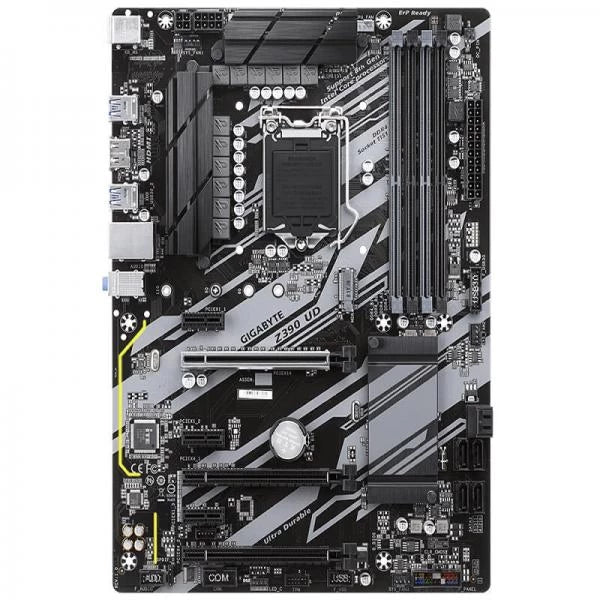

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x S/PDIF Out header
1 x Thunderbolt™ add-in card connector
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper

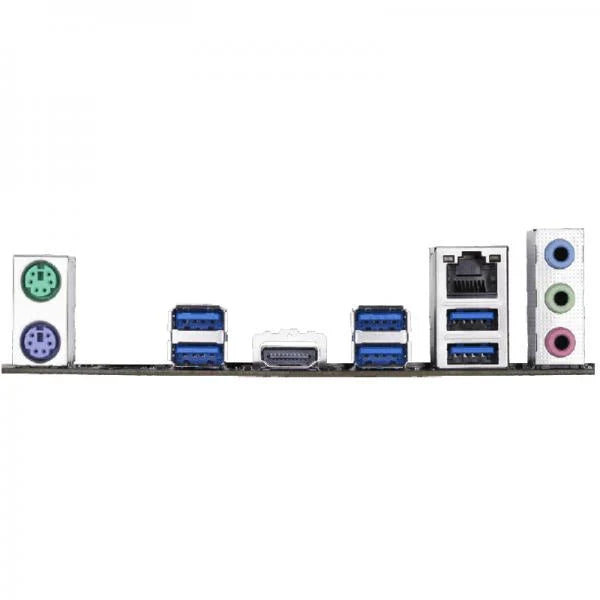

Back Panel Connectors

1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x HDMI port
6 x USB 3.1 Gen 1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install

Bundle Software

Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating System

Support for Windows 10 64-bit

Form Factor

ATX Form Factor; 30.5cm x 23.0cm

Warranty

3 Years

Note

***Features, Price and Specifications are subject to change without notice.
