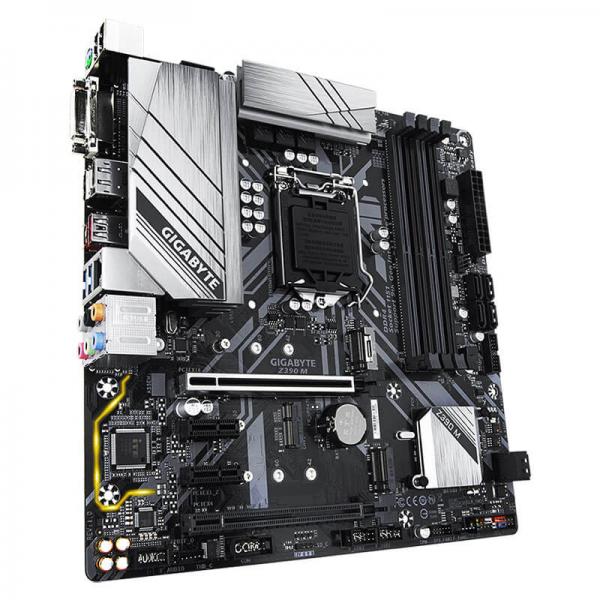

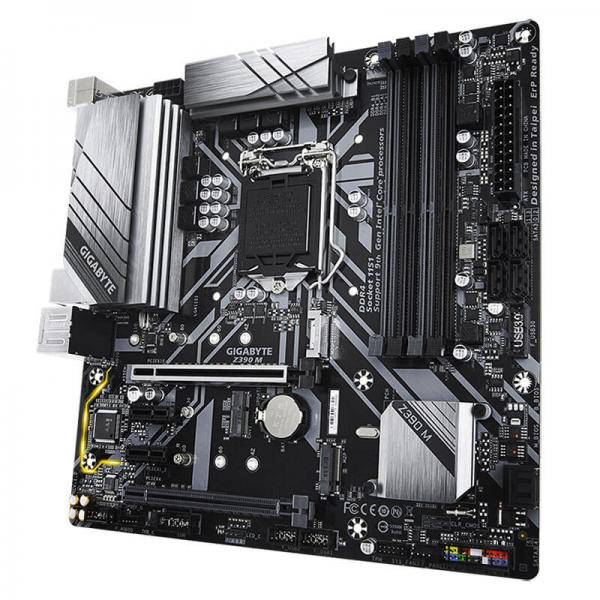

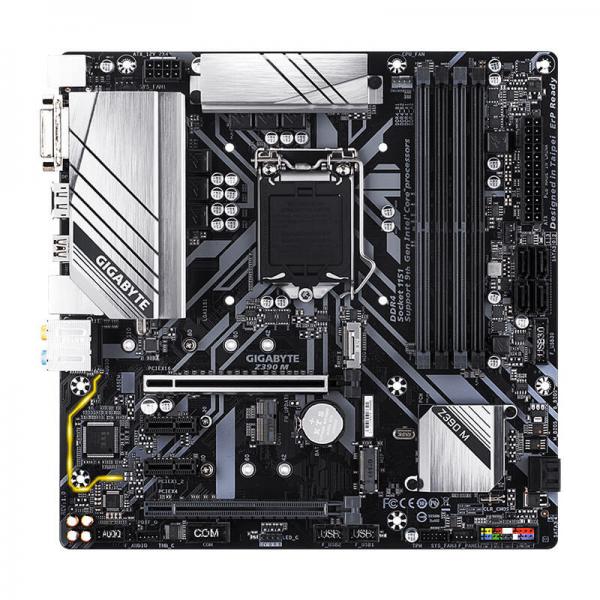

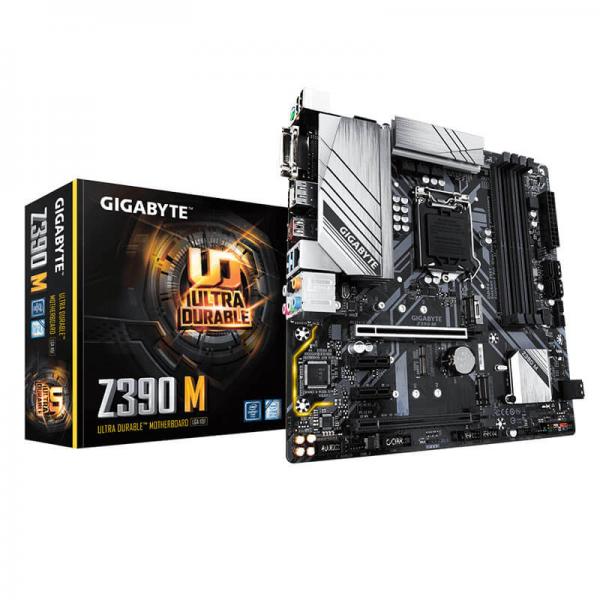

GIGABYTE Z390 M DDR4 Intel Motherboard

Rs. 14,500.00 Rs. 12,400.00

Availability : Out Of Stock

Brand : Gigabyte

SKU : Gigabyte-Z390-M

Tags : CATP_GIGABYTE, CATQ_Motherboard, Gigabyte, MOB10_None, MOB11_4, MOB12_1, MOB13_Gen3, MOB14_Gen3, MOB15_Black, MOB16_0, MOB17_6, MOB18_5, MOB19_0, MOB1_Z390, MOB20_1, MOB21_0, MOB22_2, MOB23_55, MOB24_Intel Motherboard, MOB2_MATX, MOB3_LGA1151, MOB4_128, MOB5_4266, MOB6_4, MOB7_DDR4, MOB8_2, MOB9_0

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of Gigabyte Z390 M DDR4

Supports 9th and 8th Gen Intel® Core™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
New 10+2 Phases Digital PWM Design
NVMe PCIe Gen3 x4 22110 M.2 Connector
Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
Support RGB Light Strip in Full Colors
CEC 2019 Ready, Save Power With a Simple Click
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
Intel® Optane™ Memory Ready

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

The Industry's Leading LAN Static-Electricity & Surge Protection

GIGABYTE Z390 M DDR4 motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

NVMe PCIe Gen3 x4 22110 M.2 Connector (Up to 32 Gb/s)

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Specifications of Gigabyte Z390 M DDR4

CPU	Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel®Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
Chipset	Intel® Z390 Express Chipset
Memory	4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB Actual support may vary by CPU.
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
USB	8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x S/PDIF Out header 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper

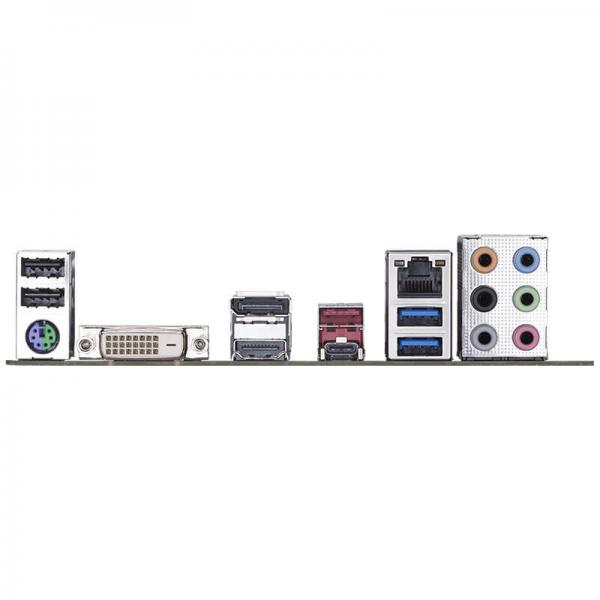

Back Panel Connectors	1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x HDMI port 6 x USB 3.1 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Ambient LED AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install
Bundle Software	Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 23.0cm
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
