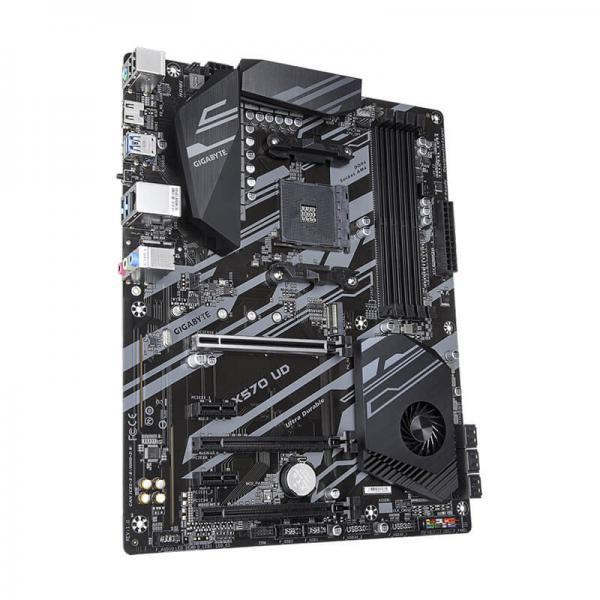

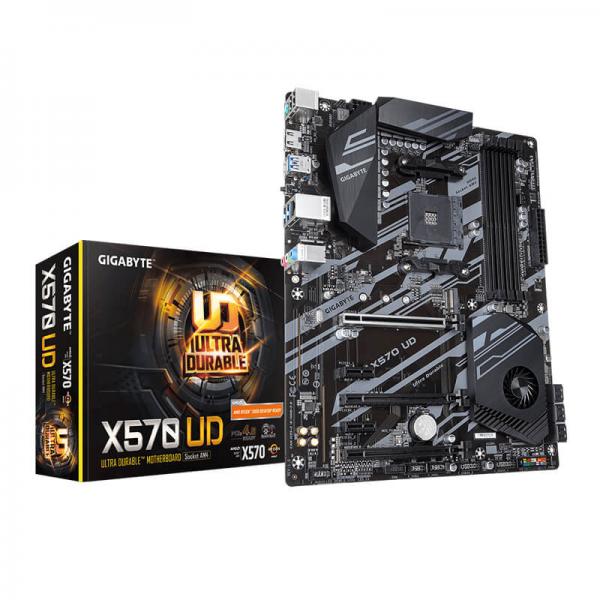

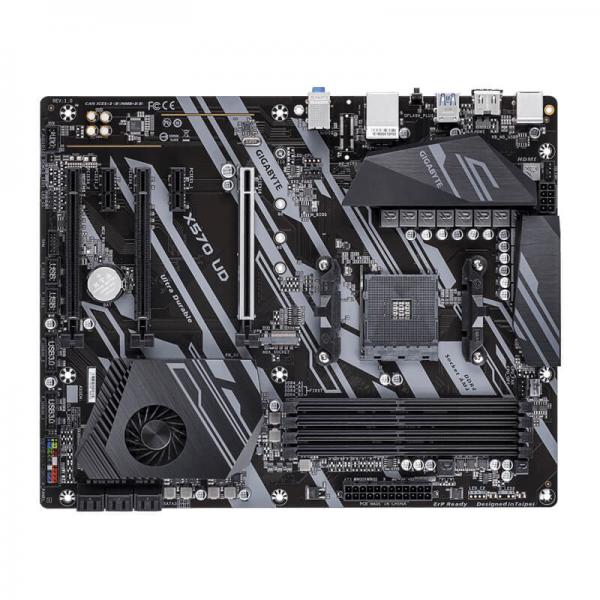

GIGABYTE X570 UD DDR4 AMD Motherboard

Rs. 19,999.00 Rs. 14,070.00

Availability : Out Of Stock

Brand : Gigabyte

SKU : GIGABYTE-X570UD-MOTHERBOARD

Tags : CATP_GIGABYTE, CATQ_Motherboard, Gigabyte, MOB10_RGB, MOB11_3, MOB12_1, MOB13_Gen4, MOB14_Gen4, MOB15_Black, MOB16_0, MOB17_6, MOB18_6, MOB19_0, MOB1_X570, MOB20_1, MOB21_0, MOB22_1, MOB23_75, MOB24_Intel Motherboard, MOB2_ATX, MOB3_AM4, MOB4_128, MOB5_4733, MOB6_4, MOB7_DDR4, MOB8_2, MOB9_0

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of Gigabyte X570 UD DDR4

GIGABYTE X570 UD DDR4 Motherboard with 10 2 Phases Digital VRM, Advanced Thermal Design with Enlarge Heatsink, PCIe 4.0 x4 M.2 Connector, PCIe 4.0 x16 Slot Armor with Ultra Durable™ Design, GIGABYTE Gaming GbE LAN with Bandwidth Management, HDMI 2.0

Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
10 2 Phases Digital VRM Solution
Advanced Thermal Design with Enlarge Heatsink
Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connector
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
GIGABYTE Gaming GbE LAN with Bandwidth Management
Supports RGB Light Strip in Full Colors
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
Featured HDMI 2.0 support
Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card

GET READY FOR AMD RYZEN™ 5000 SERIES

GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for latest AMD Ryzen™ 5000 Series Processors. The all-new design is a testament to GIGABYTE dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0, USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users’ performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 5000 Series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.

AMD StoreMI technology

GIGABYTE X570 motherboards maximize your PC’s potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

Optimized for AMD 3000 series CPU

GIGABYTE X570 motherboards use a 10*+2 phase PWM + Lower RDS(on) MOSFETs design to support the latest AMD Ryzen™ 3000-series CPUs by offering incredible precision in delivering power to the motherboard’s most power- hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Smart Chipset Fan Heatsink

Smart Fan

Provides 3 different operating modes to minimize noise and extend the fan’s longevity. Silent, Balanced and Performance modes, choose the mode that suits you the best in any situation.

High Durability

X570 motherboards adopt a high quality ball bearing fan which guarantees 60,000* working hours.

Specifications of Gigabyte X570 UD DDR4

CPU	AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors (Please refer "CPU Support List" for more information.)
Chipset	AMD X570
Memory	3rd Generation AMD Ryzen™ processors: Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1-channel
LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	Integrated in the CPU: · 3rd Generation AMD Ryzen™ processors:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset: 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
USB	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 4 x USB 3.2 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper

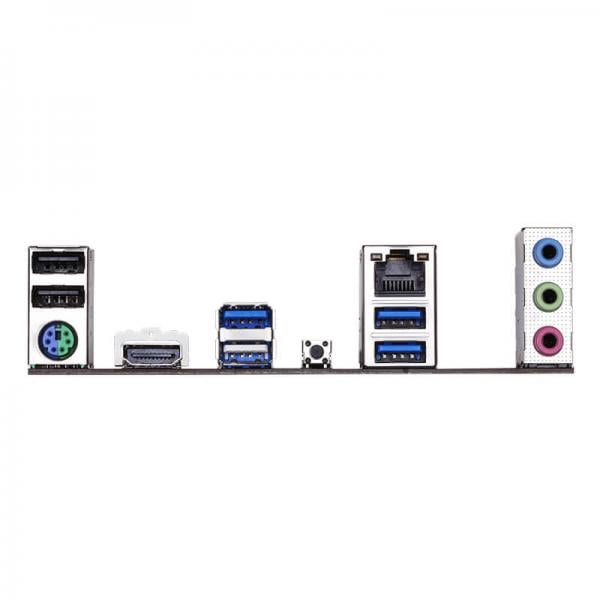

Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
