Feature of Gigabyte TRX40 Designare WiFi DDR4

1. Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors
2. Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs
3. 16 3 Phases Infineon Digital VRM Solution with 70A Power Stage
4. Triple Thermal Protection with Fin-Arrays and 8mm Maga-Heatpipe
5. Dual Intel® Gigabit LAN with cFosSpeed to shorten response time
6. 4 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards
7. Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5 with Antenna
8. 120dB SNR AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors
9. Bundled 40Gb/s GC-Titan Ridge Add-In Card
10. Exclusive AORUS Gen4 AIC Adaptor for Extra 4 NVMe PCIe 4.0/3.0 x4 M.2
11. USB TurboCharger for Mobile Device Fast Charge Support
12. RGB FUSION with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
13. Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
14. Front & Rear USB 3.2 Gen 2 Type-C™ Header
15. Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

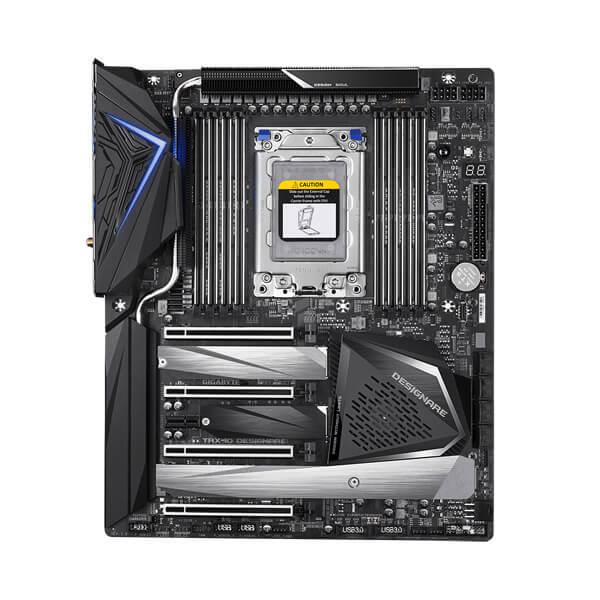

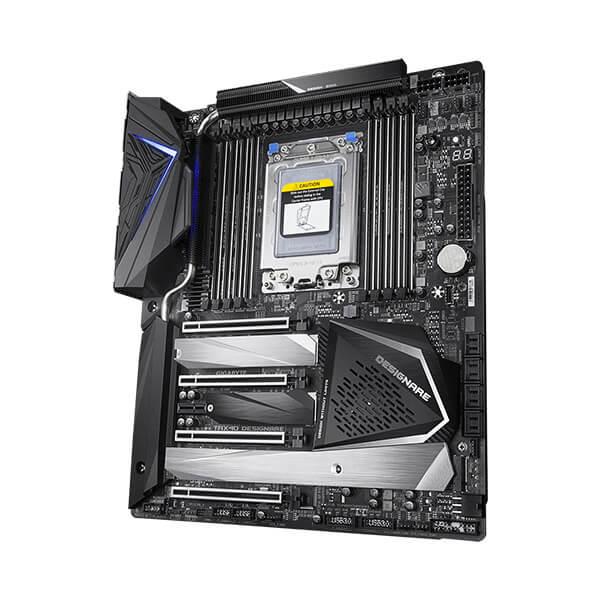

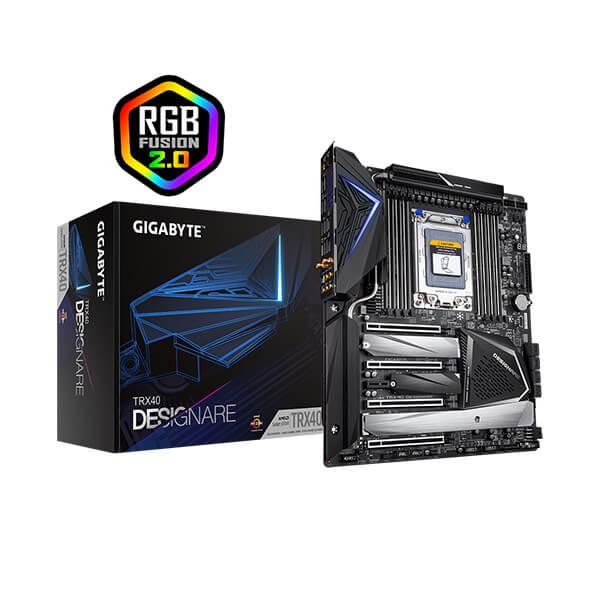

The  GIGABYTE TRX40 Designare Wifi DDR4 Motherboard from GIGABYTE is engineered to deliver an unparalleled performance and exceptional thermal solution, specifically designed to support the 3rd Gen AMD Ryzen™ Threadripper™ Processors. This powerhouse motherboard is packed with advanced features to cater to the needs of professionals, gamers, and tech enthusiasts. It ensures unrivaled speed, exceptional connectivity, and superior audio quality while maintaining stability and efficiency.

Processor Support

Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors

The compatibility with AMD's 3rd Gen Threadripper processors harnesses the sheer power and multi-core performance, making it ideal for demanding applications and multitasking.

Memory and Storage

Quad Channel ECC/Non-ECC Unbuffered DDR4, 8 DIMMs

The TRX40 DESIGNARE supports ECC (Error-Correcting Code) and Non-ECC unbuffered DDR4 memory with a total of 8 DIMM slots, allowing for an expansive capacity and improved reliability, crucial for professional workloads.

4 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards

The motherboard is equipped with four M.2 slots, supporting PCIe 4.0 x4 NVMe SSDs. These slots come with enlarged thermal guards, ensuring that drive temperatures are managed efficiently to prevent throttling and maintain high-performance storage operations.

Power and Thermal Design

16+3 Phases Infineon Digital VRM Solution with 70A Power Stage

This motherboard incorporates an advanced VRM (Voltage Regulator Module) design for optimum power delivery. The 16+3 phase Infineon digital VRM ensures precise and stable power to the CPU, enabling robust performance and overclocking potential.

Triple Thermal Protection with Fin-Arrays and 8mm Mega-Heatpipe

Featuring an innovative cooling design, the TRX40 DESIGNARE uses Fin-Arrays heatsinks and an 8mm Mega-Heatpipe for efficient thermal dissipation. This ensures that the motherboard maintains ideal operating temperatures, even under heavy loads.

Network Connectivity

Dual Intel® Gigabit LAN with cFosSpeed

Equipped with dual Intel Gigabit LAN ports, the motherboard offers high-speed networking with optimized bandwidth usage, reduced latency, and reliable connections, essential for tasks that require extensive data transfers or online gaming.

Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5 with Antenna

The inclusion of Intel WiFi 6 (802.11ax) ensures ultrafast wireless connectivity, with increased efficiency and lower latency compared to previous standards. The integrated Bluetooth 5 adds convenience for connecting peripherals wirelessly.

Expansion and Customization

Bundled 40Gb/s GC-Titan Ridge Add-In Card

This Thunderbolt 3 add-in card allows for a blazing-fast 40Gb/s connection, providing unparalleled transfer speeds and versatile connectivity options for numerous devices.

Exclusive AORUS Gen4 AIC Adaptor for Extra 4 NVMe PCIe 4.0/3.0 x4 M.2

The AORUS Gen4 AIC adaptor further extends the motherboard’s storage capabilities by accommodating up to four additional NVMe PCIe 4.0/3.0 x4 M.2 slots, ensuring vast and rapid storage solutions.

Audio Enhancement

120dB SNR AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors

Delivering superior audio performance, the onboard 120dB SNR AMP-UP audio solution includes ALC1220-VB codec and high-quality WIMA capacitors. This setup ensures crystal-clear sound, making it perfect for audiophiles and immersive gaming experiences.

USB Connectivity

Front & Rear USB 3.2 Gen 2 Type-C™ Header

The motherboard includes both front and rear USB 3.2 Gen 2 Type-C headers, providing versatile, high-speed data transfer capabilities for modern USB-C devices.

RGB and Fan Control

RGB FUSION with Multi-Zone Addressable LED Light Show Design

GIGABYTE's RGB FUSION technology provides extensive customization for your system’s lighting. It supports addressable LED and RGB LED strips, allowing users to create stunning visual effects and synchronized light shows across multiple zones.

Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection

Smart Fan 5 technology ensures your system stays cool and operates silently. This feature levies multiple temperature sensors and hybrid fan headers, which can automatically stop fans when temperatures are below a certain threshold, minimizing noise levels.
