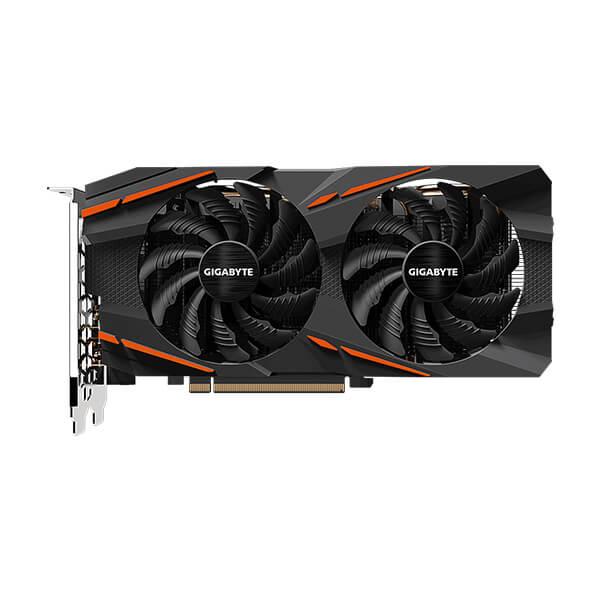

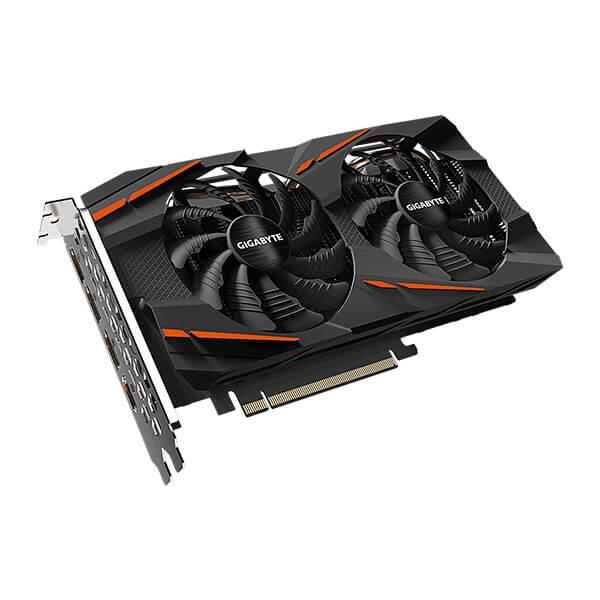

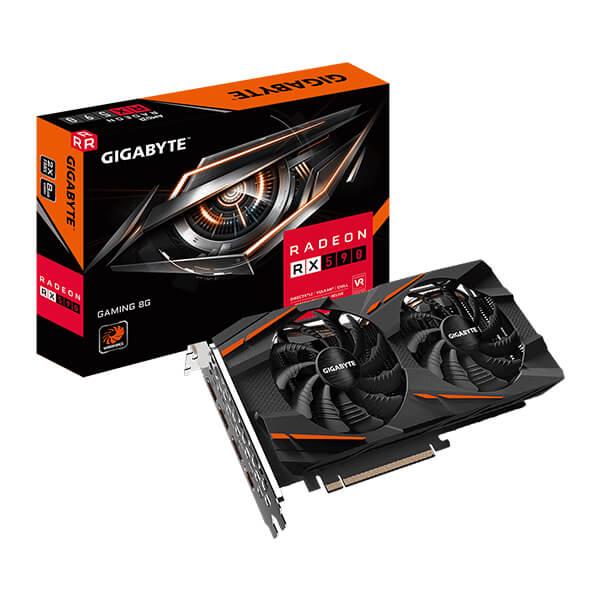

Features of GIGABYTE Radeon RX 590 Gaming 8GB AMD Graphics Card

Powered by Radeon ™ RX 590
WINDFORCE 2X with 90mm Blade Fan Design
RGB Fusion 2.0 – synchronize with other AORUS devices
Stylish Metal Back Plate
Intuitive AORUS Engine

WINDFORCE 2X Cooling System

The WINDFORCE 2X cooling system features 3 pure copper composite heat-pipes, heat-pipe direct touch GPU, 90mm unique blade fan design, 3D active fan with LED indicators, stylish metal back plate, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

90mm Unique Blade Fan Design

The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow.

3D Active Fan with LED Indicators

The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. The LED fan indicator on the top of the graphics card provides an instant display of the fan status.

Composite heat-pipe

The composite heat-pipe combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.

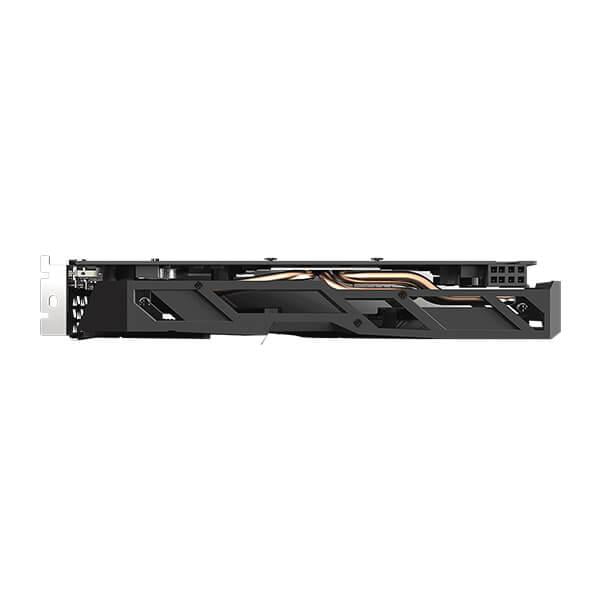

3 Heat-Pipes Direct Touch

The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.

RGB Fusion 2.0

With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

STYLISH METAL BACK PLATE

The metal back plate offers rigidity and protection to the structure, while adding a sleek, clean look to the product.

Built for OverClocking with 6+2 power phases

6+2 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output.

Ultra Durable Materials

Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.

AORUS Engine

The cutting edge intuitive interface allows you to tune the clock speeds, voltage, fan performance, and power target in real-time according to your own gaming requirement.

One-click Overclocking

With a simple click on AORUS engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.

1. Powered by Radeon ™ RX 590
2. WINDFORCE 2X with 90mm Blade Fan Design
3. Stylish Metal Back Plate
4. Intuitive AORUS Engine

Specifications of GIGABYTE Radeon RX 590 Gaming 8GB AMD Graphics Card
