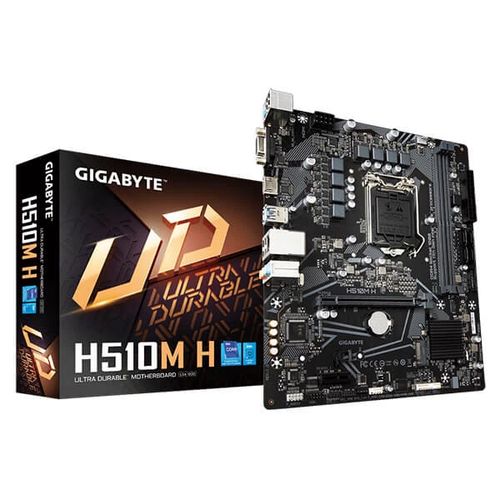

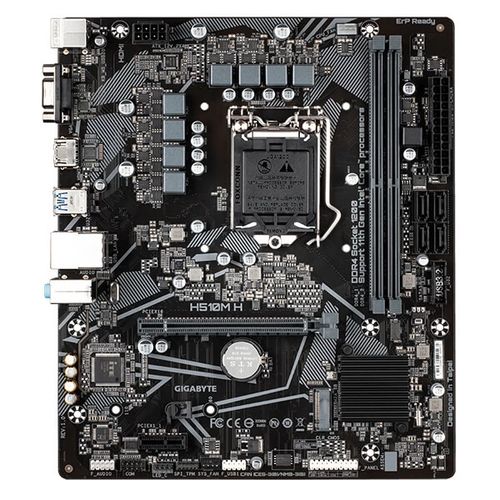

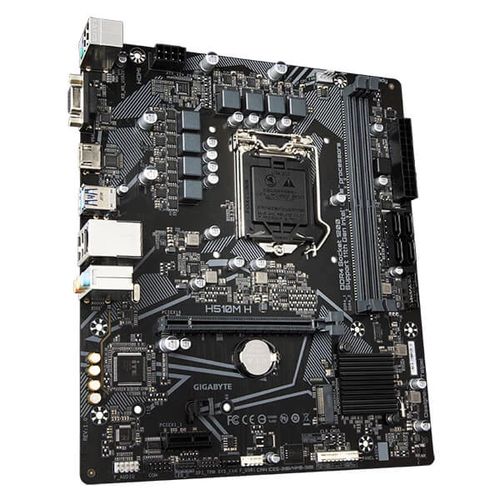

Feature of GIGABYTE H510M H DDR4 Intel Motherboard

GIGABYTE H510M H DDR4 Motherboard supports 11th and 10th Gen Intel Core Series Processors along with Ultra-Fast M.2 with PCIe 4.0* design. Also, it comes with Realtek GbE LAN with high ESD Protection, Anti-Sulfur Resistor and 6+2 Phases Digital VRM.

Moreover, from high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging.

EFFICIENT POWER DELIVERY

Cleaner and more efficient power delivery to the CPU with better thermal performance. Thus, ensure stability under high CPU frequencies and heavy loading.

• 6+2 Phases Low RDS (ON) MOSFET’s.
• Solid capacitors to improve transient response and minimize oscillation.
• 8-pin Solid Pin CPU Power Connector.

SMART FAN 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

COOLING FEATURES

• High Current Support – Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.
• Precision Control – Up to 7 temperature/fan speed control points for precise fan curve.
• Dual Curve Mode –  Slope/Stair dual mode for different user scenario.
• Fan Stop – Fan can stop completely below users’ specified temperature point.

REALTEK GbE LAN WITH BANDWIDTH MANAGEMENT

Realtek Gigabit LAN features a network bandwidth management application which thus helps to improve network latency and maintain low ping times. So, it delivers better responsiveness in crowded LAN environments.

ULTRA DURABLE

GIGABYTE Ultra Durable debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and thus extended motherboard lifespan.

SOLID PIN POWER CONNECTORS

H510 motherboards feature solid plated ATX 12V 8pin power connectors. Therefore, it offers a stable power supply during CPU overloading.

Solid Pin Power connector advantages:

• Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.

ULTRA PERFORMANCE

GIGABYTE uses Solid Caps (Capacitors) for CPU VRM and Low RDS(on) MOSFETs which are rated to work at higher temperatures in order to provide a longer lifespan.

ELECTROSTATIC PROTECTION

GIGABYTE motherboards feature High Resistance ICs which thus help protect the motherboard against electrostatic discharge.

APP CENTER

GIGABYTE App Center gives you easy access to wealth of GIGABYTE apps that help you get the most from the motherboard. Moreover, using a simple, unified user interface, GIGABYTE App Center allows you to launch all GIGABYTE apps installed on your system.

Specifications of GIGABYTE H510M H DDR4 Intel Motherboard
