GIGABYTE GA-H61M-S DDR3 Intel Motherboard

360˚

- -4%

Motherboard

GIGABYTE GA-H61M-S DDR3 Intel Motherboard

Rs. 7,245.00

Availability : Out Of Stock

Brand : Gigabyte

SKU : Gigabyte-GA-H61M-s

Tags : CATP_GIGABYTE, CATQ_Motherboard, Gigabyte, MOB10_None, MOB11_2, MOB12_0, MOB13_Gen3, MOB14_None, MOB15_Black, MOB16_0, MOB17_4, MOB18_4, MOB19_0, MOB1_H61, MOB20_0, MOB21_0, MOB22_1, MOB23_55, MOB24_Intel Motherboard, MOB2_MATX, MOB3_LGA1155, MOB4_16, MOB5_1333, MOB6_2, MOB7_DDR3, MOB8_0, MOB9_0

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Features of GIGABYTE GA-H61M-S DDR3 Intel Motherboard

Humidity Protection PCB design with GIGABYTE GA-H61M-S
Electrostatic Protection and Power Failure Protection design
Supports 3rd Gen. Intel® 22nm C.P.Us and 2nd Gen. Intel® Core™ C.P.Us (LGA1155 socket)
Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
Supports 3rd generation PCI-Express interface
Enhanced Intel HD Graphics 2000/3000 integrated with the processor

Specifications of GIGABYTE GA-H61M-S DDR3 Intel Motherboard

CPU	Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package L3 cache varies with CPU (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)

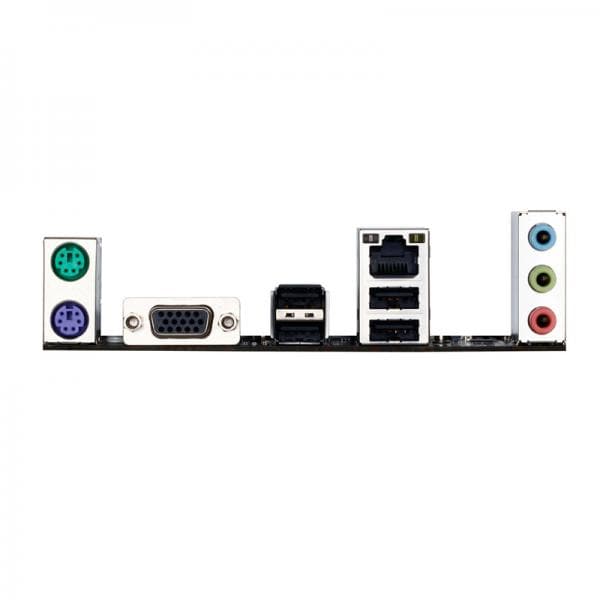

Back Panel Ports	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 4 x USB 2.0/1.1 headers 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
Chipset	Intel® H61 Express Chipset
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper
Memory	2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.Dual channel memory architectureSupport for DDR3 1333/1066/800 MHz memory modulesSupport for non-ECC memory modulesSupport for Extreme Memory Profile (XMP) memory modules * To support XMP memory, you must install an Intel® 22nm (Ivy Bridge) CPU.(Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor: 1 x D-Sub port Maximum shared memory of 1 GB
Expansion Slots	1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
Storage	Chipset: 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
USB	Chipset: Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Unique Features	Support for @BIOS Support for Q-Flash Support for Xpress Recovery2 Support for EasyTune * Available functions in EasyTune may differ by motherboard model. Support for ON/OFF Charge
Operating System Support	Support for Windows 8.1/8/7/XP
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Form Factor	Micro ATX Form Factor; 19.0cm x 17.0cm
Bundle Software	Norton® Internet Security (OEM version)
Warranty	3 Years
Note*	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website. Price, feature and specifications are subject to change without notice.
