Description

Features of GIGABYTE GA-H110M-H (Rev. 2.0) Intel Motherboard

Supports 7^th / 6^th Generation Intel^® Core™ Processors
Dual Channel DDR4, 2 DIMMs with GIGABYTE GA-H110M-H
Audio Noise Guard with High Quality Audio Capacitors
HDMI 1.4, D-sub ports for multiple display
Realtek^® GbE LAN with cFosSpeed Internet Accelerator Software
All new GIGABYTE™ APP Center, simple and easy use
Support Intel^® Small Business Basics

Specifications of GIGABYTE GA-H110M-H (Rev. 2.0) Intel Motherboard

CPU	Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel®Pentium® processors/Intel® Celeron® processors in the LGA1151 package* For 7th Generation Intel® Core™ processors support need to update the latest BIOS. L3 cache varies with CPU
Chipset	Intel® H110 Express Chipset
Memory	2 x DDR4 DIMM sockets supporting up to 32 GB of system memory* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Onboard Graphics	Integrated Graphics Processor - Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz* Support for HDMI 1.4 version. Maximum shared memory of 1024 MB
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16(The PCI Express x16 slot conform to PCI Express 3.0 standard.) 2 x PCI Express x1 slots(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface	Chipset: 4 x SATA 6Gb/s connectors
USB	Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper

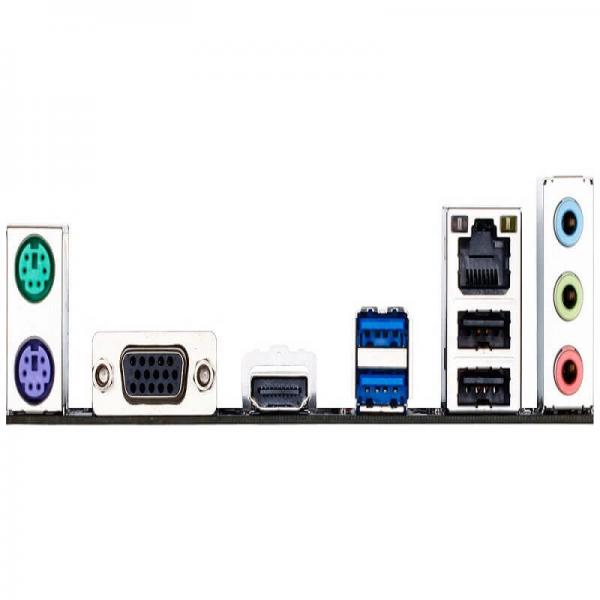

Back Panel Connectors	1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x HDMI port 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.3D OSD@BIOSAutoGreenCloud StationEasyTuneFast BootSmart TimeLockSmart KeyboardSmart BackupSystem Information ViewerUSB Blocker Support for Q-Flash Support for Smart Switch Support for Xpress Install
Bundle Software	Norton® Internet Security (OEM version) cFosSpeed
Operating System	Windows® 10 64-bit (for 7th Generation Intel® Processors) Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor	Micro ATX Form Factor; 22.6cm x 17.4cm
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
