Description

Feature of Gigabyte GA-A320M-S2H DDR4

All New GIGABYTE™™ APP Center, Simple and Easy Use
GIGABYTE™ UEFI BIOS
Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
High Quality Audio Capacitors and Audio Noise Guard
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Supports AMD Ryzen™ & 7th Generation A-series/ Athlon™ Processors

GET READY FOR AMD RYZEN™ 3000-SERIES

GIGABYTE GA-A320M-S2H DDR4 AM4 motherboards are ready to support the latest AMD Ryzen™ 3000 Processors and are backwards compatible with AMD Ryzen™ 2000 and 1000 Processors. With a rich list of features on GIGABYTE AM4 motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design, GIGABYTE AM4 motherboards are perfect for users looking to build the best AMD platform systems

4K Ultra HD Support

K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon^® Graphics via HDMI.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

All Hybrid Fan Pin Headers

• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
• Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.

New Smart Fan 5 Software

Interoperable Sensors and Fans
Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve

Customize fan curves based on specific temperatures with the intuitive graphical UI.

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds

Enhanced BIOS Interface

The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows.

Specifications of Gigabyte GA-A320M-S2H DDR4

CPU	AM4 Socket: AMD Ryzen™ processor AMD 7th Generation A-series/ Athlon™ processor
Chipset	AMD A320
Memory	2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 3200(O.C.)/2933(O.C.)/2667/2400/2133 MHz memory modules Actual support may vary by CPU. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version.
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) * Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ processor. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
USB	Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header

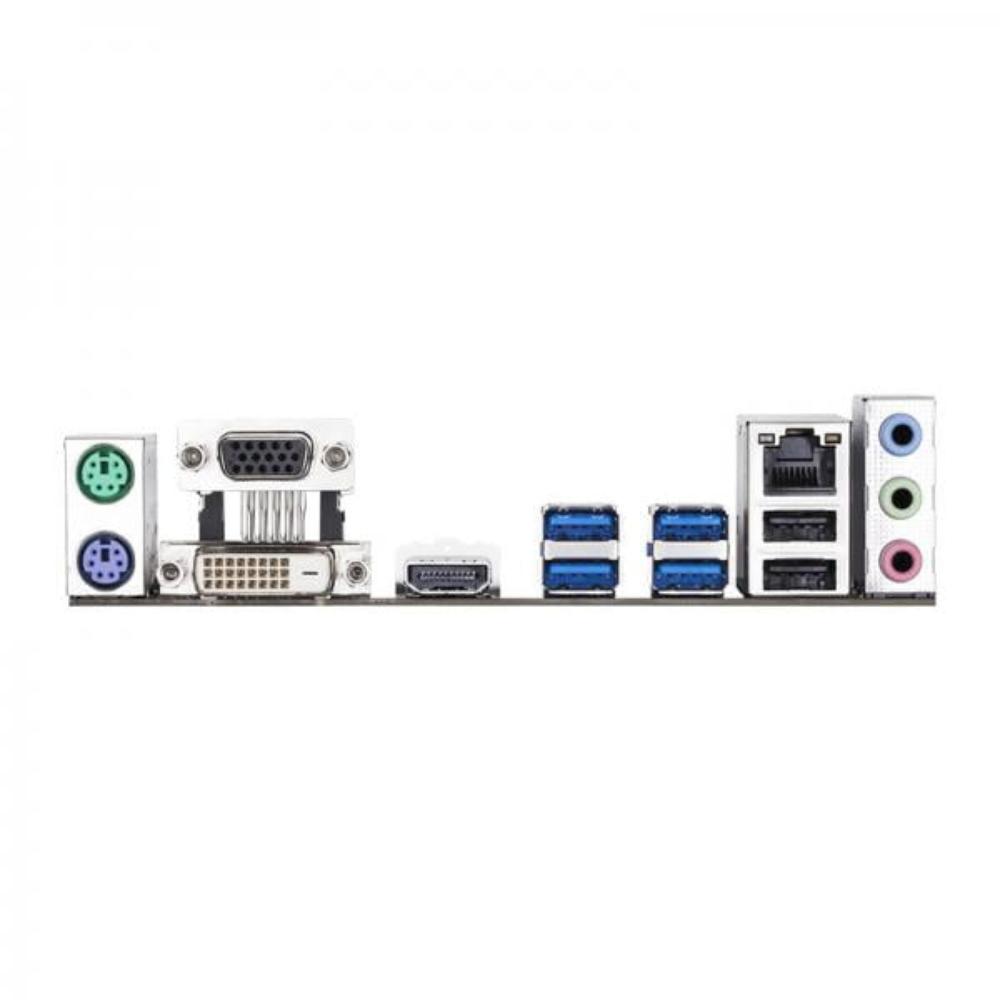

Back Panel Connectors	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS 3D OSD AutoGreen BIOS Setup Cloud Station Color Temperature EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup Smart Keyboard Smart TimeLock System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install
Bundle Software	Norton® Internet Security (OEM version) CFosSpeed
Operating System	Support for Windows 10 64-bit Support for Windows 7 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 19.5cm
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
