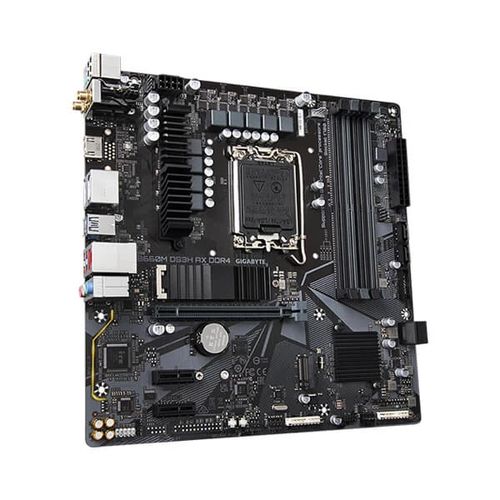

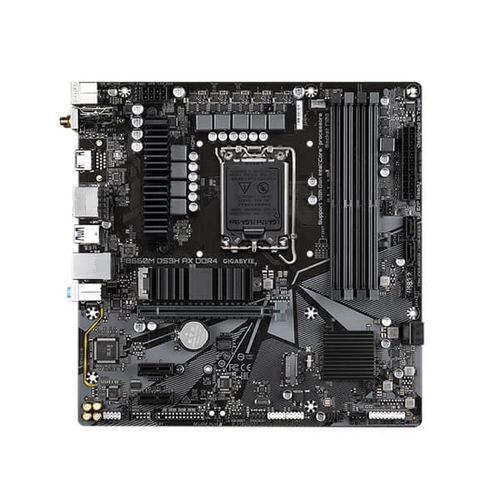

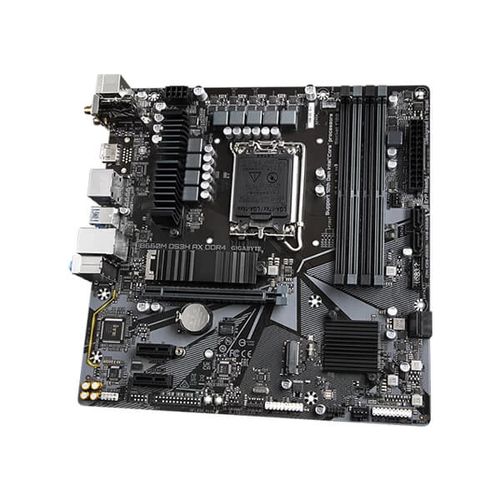

GIGABYTE B660M DS3H AX Wifi DDR4 Intel Motherboard

Rs. 20,999.00 Rs. 12,655.00

Availability : Out Of Stock

Brand : Gigabyte

SKU : gigabyte-b660m-ds3h-wifi

Tags : CATP_GIGABYTE, CATQ_Motherboard, Gigabyte, MOB10_ARGB, MOB11_4, MOB12_1, MOB13_Gen4, MOB14_Gen4, MOB15_Black, MOB16_0, MOB17_4, MOB18_5, MOB19_1, MOB1_B660, MOB20_1, MOB21_1, MOB22_1, MOB23_55, MOB24_Intel Motherboard, MOB2_MATX, MOB3_LGA1700, MOB4_128, MOB5_5333, MOB6_4, MOB7_DDR4, MOB8_2, MOB9_1

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of GIGABYTE B660M DS3H AX Wifi DDR4 Intel Motherboard

Supports 12th Gen Intel® Core™ Series Processorsâ€‹â€‹
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMsâ€‹â€‹
6+2+1 Phases Hybrid Digital VRM with MOS Heatsinkâ€‹
WIFI 6 802.11ax 2T2R & BT5 with AERO Antennaâ€‹
Fast 2.5 GbE LAN with Bandwidth Managementâ€‹â€‹
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guardâ€‹â€‹
Rear SuperSpeed USB 3.2 Gen 2 TYPE-C® for Fast and Versatile Connections â€‹â€‹
High Quality Audio Capacitors and Audio Noise Guardâ€‹
RGB FUSION 2.0 supports Addressable LED & RGB LED Stripsâ€‹â€‹
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOPâ€‹â€‹
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Cardâ€‹â€‹

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

2X Faster than ever

Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1 GbE networking, perfectly designed for gamers with ultimate online gaming experience.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Hybrid Power Design

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

PCIe 4.0 Design

GIGABYTE B660M DS3H AX DDR4 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

Support for DDR4 XMP Up to 5333MHz and Beyond*

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

Hybrid Cores Optimization

With new Intel Hybrid technology, GIGABYTE exclusively creates two new " CPU Upgrade " in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.

Q-Flash Plus

With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

RGB FUSION 2.0

B660 motherboards feature RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC.

Specifications of GIGABYTE B660M DS3H AX Wifi DDR4 Intel Motherboard

CPU	LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors L3 cache varies with CPU (Please refer to "CPU Support List" for more information.)
Chipset	Intel® B660 Express Chipset
Memory	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. (Graphics specifications may vary depending on CPU support.)Support for up to 3 displays at the same time
Audio	Playback Device to change the default setting first."}">Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel® Wi-Fi 6 AX201 (For PCB rev. 1.0)WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6 AX200 (For PCB rev. 1.1)WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX211 (For PCB rev. 1.2)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x1 slots (The PCIEX1 slots conform to PCI Express 3.0 standard.)
Storage Interface	CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset:1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10Intel® Optane™ Memory Ready * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connector supported by the Chipset.
USB	Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs:4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version) Realtek® Gaming LAN Bandwidth Control Utility
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
