GIGABYTE B660M D2H DDR4 Intel Motherboard

360˚

- -1%

Motherboard

GIGABYTE B660M D2H DDR4 Intel Motherboard

Rs. 10,000.00

Availability : Out Of Stock

Brand : Gigabyte

SKU : Gigabyte-B660M-D2H-DDR4

Tags : CATP_GIGABYTE, CATQ_Motherboard, Gigabyte, MOB10_ARGB, MOB11_3, MOB12_1, MOB13_Gen4, MOB14_Gen4, MOB15_Black, MOB16_1, MOB17_4, MOB18_6, MOB19_0, MOB1_B660, MOB20_1, MOB21_1, MOB22_1, MOB23_55, MOB24_Intel Motherboard, MOB2_MATX, MOB3_LGA1700, MOB4_128, MOB5_5333, MOB6_4, MOB7_DDR4, MOB8_2, MOB9_0

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of GIGABYTE B660M D2H DDR4 Intel Motherboard

Supports 12th Gen Intel® Core™ Series Processors??
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+2+1 Phases Hybrid Digital VRM with MOS Heatsink?
Fast 2.5 GbE GAMING LAN with Bandwidth Management??
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2?
High Quality Audio Capacitors and Audio Noise Guard?
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips??
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP??
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

XMP Up to 5333MHz and Beyond

GIGABYTE B660M D2H DDR4 motherboard is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

HDMI 2.0 for 4K UHD Display and HDCP 2.2 supported

GIGABYTE B660M D2H DDR4 HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.

High-End Audio Capacitors

GIGABYTE B660M D2H DDR4 motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE B660M D2H DDR4 motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card or enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

Solid Pin Power Connectors

GIGABYTE B660M D2H DDR4 motherboards feature solid plated ATX 12V 8 pin power connectors to offer a stable power supply during CPU overloading.

RGB FUSION 2.0

GIGABYTE B660M D2H DDR4 motherboards feature RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC.

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

EasyTune™

GIGABYTE’s EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.

Specifications of GIGABYTE B660M D2H DDR4 Intel Motherboard

BRANDS	GIGABYTE
CPU	LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
	L3 cache varies with CPU
	* Please refer to “CPU Support List” for more information.
Chipset	Intel® B660 Express Chipset
Memory	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(Please refer “Memory Support List” for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
	1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support native HDMI 2.1 TMDS compatible ports.
	(Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	Support for S/PDIF Out
	* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16)
	(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
	2 x PCI Express x1 slots
	(The PCI Express x1 slots conform to PCI Express 3.0 standard.)
Storage Interface	CPU:
	1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	4 x SATA 6Gb/s connectors
	Support for RAID 0, RAID 1, RAID 5, and RAID 10
	Intel® Optane™ Memory Ready
	* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB	Chipset:
	6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
	4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	Chipset+2 USB 2.0 Hubs:
	4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	2 x system fan headers
	1 x addressable LED strip header
	1 x RGB LED strip header
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x S/PDIF Out header
	1 x USB 3.2 Gen 1 header
	3 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x serial port header
	1 x Q-Flash Plus button
	1 x reset button
	1 x reset jumper
	1 x Clear CMOS jumper
	＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

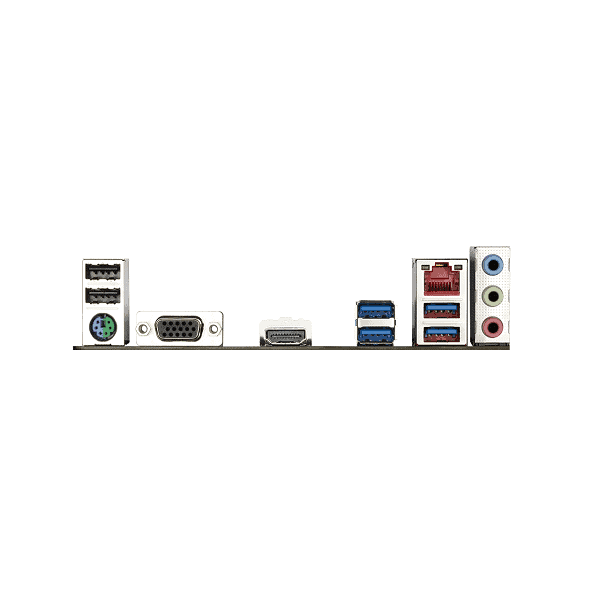

Back Panel Connectors	1 x PS/2 keyboard/mouse port
	1 x D-Sub port
	1 x HDMI port
	4 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Overheating warning
	Fan fail warning
	Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	EasyTune
	Fast Boot
	Game Boost
	ON/OFF Charge
	RGB Fusion
	Smart Backup
	System Information Viewer
	Support for Q-Flash Plus
	Support for Q-Flash
	Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version)
Bundled Software	Realtek® Gaming LAN Bandwidth Control Utility
Operating System	Support for Windows 11 64-bit
Operating System	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 22.5cm x 24.4cm
