GIGABYTE B650 Aorus Elite V2 DDR5 AMD Motherboard

360˚

- 41%

Motherboard

GIGABYTE B650 Aorus Elite V2 DDR5 AMD Motherboard

Rs. 31,499.00 Rs. 18,339.00

Availability : Out Of Stock

Brand : Gigabyte

SKU : gigabyte-B650-aorus-elite-v2-ddr5

Tags : CATP_GIGABYTE, CATQ_Motherboard, Diwalisale, Gigabyte, Important_Product, Independence, MOB10_ARGB, MOB11_6, MOB12_1, MOB13_Gen4, MOB14_Gen5, MOB15_Black, MOB16_1, MOB17_4, MOB18_11, MOB19_1, MOB1_B650, MOB20_1, MOB21_3, MOB22_1, MOB23_75, MOB24_AMD Motherboard, MOB2_ATX, MOB3_AM5, MOB4_192, MOB5_5200, MOB6_4, MOB7_DDR5, MOB8_3, MOB9_1, price_sync, topp, Valentine

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Features of GIGABYTE B650 Aorus Elite V2 DDR5 AMD Motherboard

AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Superfast Storage：1* PCIe 5.0 x4 and 2* PCIe 4.0 x4 M.2 Connector
Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN
Extended Connectivity：HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Maximize DDR5 performance with your memory settings

AMD EXPO™/ Intel® XMP 3.0 User Profile empowers you to optimize your memory settings and achieve the best performance for your system.

SPD Re-defined or retrieve from database

Users can define two empty SPD profiles and transfer them to another computer.

Performance Simulation

Simulate memory performance quickly by inputting clock and timing parameters.

Save/Load Profile

Save and load memory profiles for online sharing.

Boost non-overclockable DDR5 memory frequency

Increase the frequency of non-overclockable DDR5 memory.

One-click Clear Profile

Reset memory settings conveniently.

VRM Thermal Armor Advanced

High coverage MOSFETs and integrated molded heatsinks improve thermal efficiency by enhancing airflow and heat exchange.

3X Large Surface

The surface area has been increased up to 3X larger compared to traditional heatsinks, resulting in improved heat dissipation from the MOSFETs.

Real One-piece Build

The TRUE single-piece heatsink offers superior cooling performance compared to competitors’ multi-piece designs, thanks to its one-piece construction and larger surface area.

Multi-Cut Design

With its Multi-Cut Design, this heatsink includes multiple channels and inlets to enhance airflow, resulting in improved heat transfer performance.

6mm Heatpipe

6mm heatpipe helps to transfer heat between two heatsinks which improves overall thermal balance of the MOSFETs.

7W/mK Thermal Pad

Optimize hardware performance with our advanced 7W/mK Thermal Pad for efficient heat dissipation.

2X Copper Enhancement

Enhances system performance with improved heat dissipation, power handling, and seamless overclocking support.

M.2 Thermal Guard

prevents throttling and bottlenecks from high speed Gen5 M.2 SSDs

Smart Fan 6

ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.

High Current Support

Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.

Precision Control

Multiple temperature/fan speed control points for precise fan curve.

Dual Curve Mode

Slope/Stair dual mode for different user scenario.

Fan Stop

Fan can stop completely below users’ specified temperature point.

Enhance Fan Curve UI

Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.

Slope/Stair Dual Graph Mode

Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.

Manual Input

For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.

EZ Tuning

Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.

Fan Curve Profile

Save your customized fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.

Build effortless

Building your own PC is meant to be joyful and effortless. AORUS serious motherboard the most DIY-friendly ever.

EZ-Latch Designs

Effortless mechanisms that enable easy installations of components.

Specifications of GIGABYTE B650 Aorus Elite V2 DDR5 AMD Motherboard

Model:	B650 AORUS ELITE AX V2
CPU:	AMD Socket AM5, support for: AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors * Please refer to "CPU Support List" for more information.
Chipset:	AMD B650
Memory:	Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/ 6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics:	Integrated Graphics Processor with AMD Radeon Graphics support: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. *Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Audio:	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN:	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module:	Realtek Wi-Fi 6E RTL8852CE WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless (Actual data rate may vary depending on environment and equipment.)
Expansion Slots:	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Storage Interface:	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB:	CPU:1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors:	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

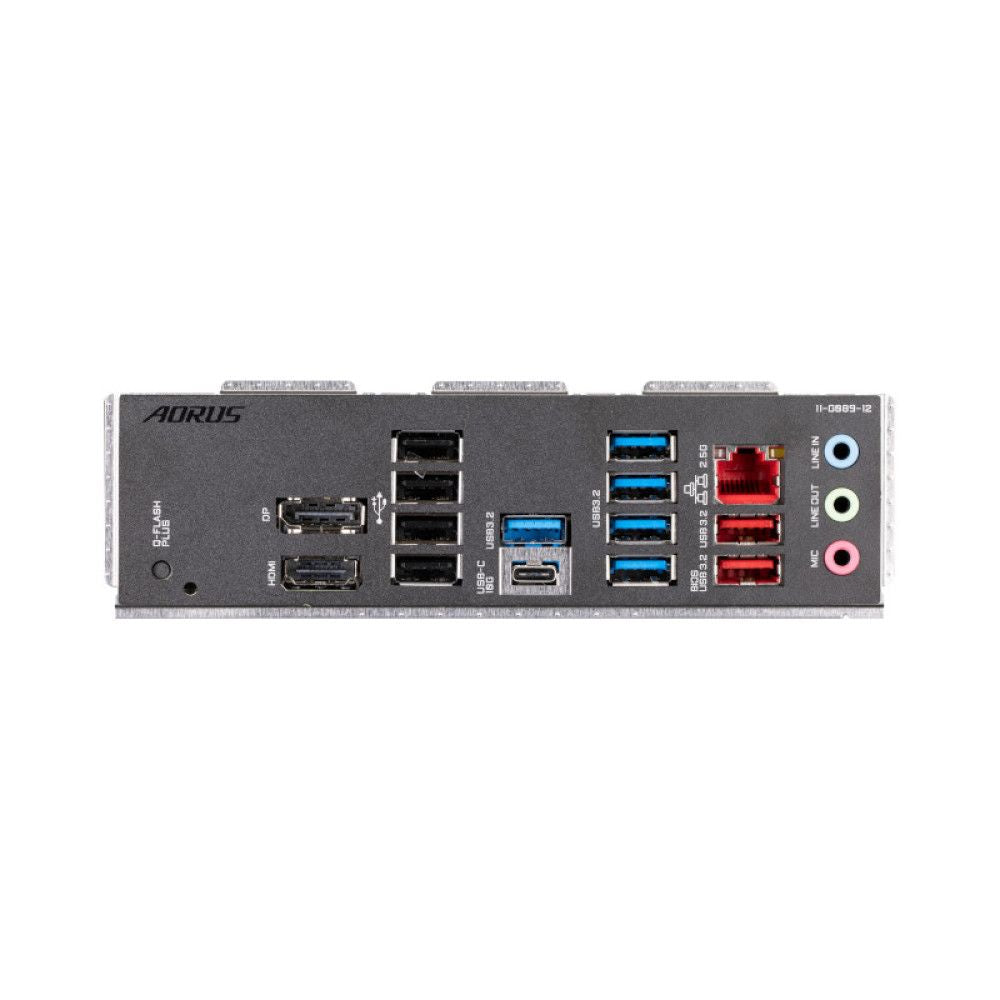

Back Panel Connectors:	1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R)jk 1 x DisplayPort 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller:	iTE I/O Controller Chip
H/W Monitoring:	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install
BIOS:	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software:	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System:	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor:	ATX Form Factor; 30.5cm x 24.4cm
Warranty:	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
