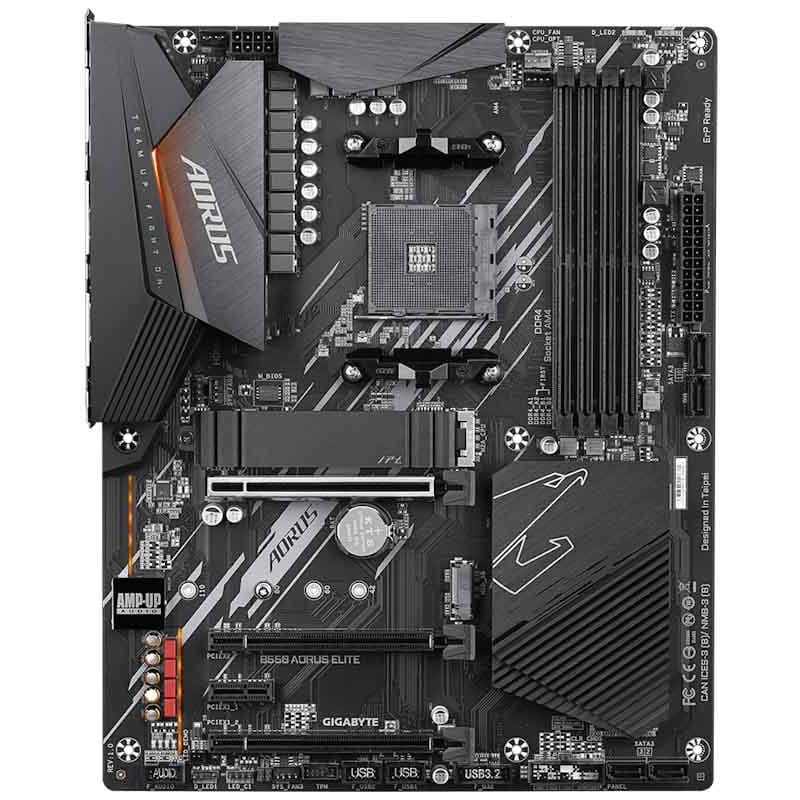

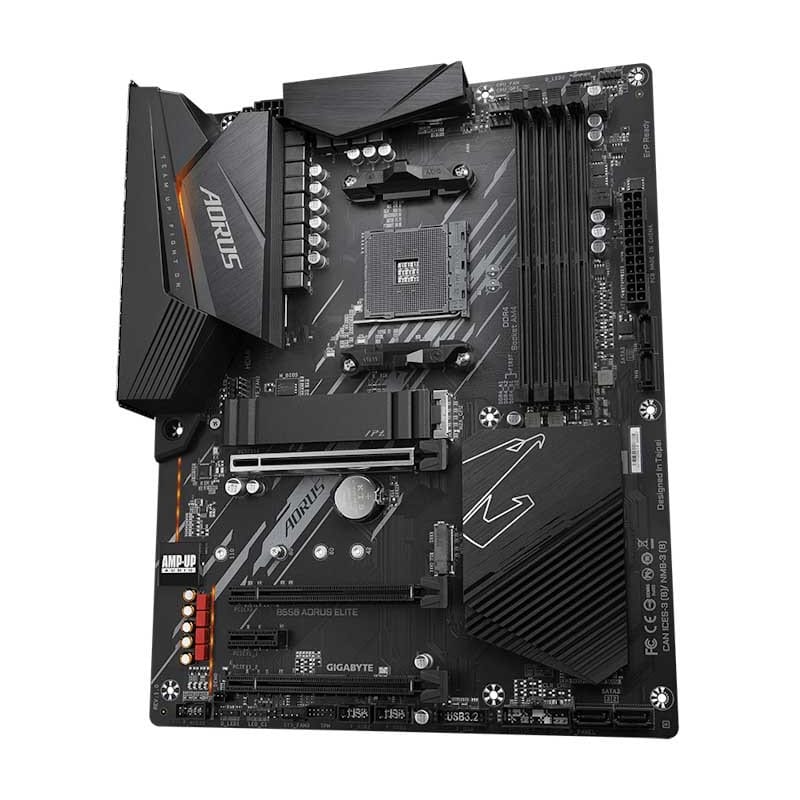

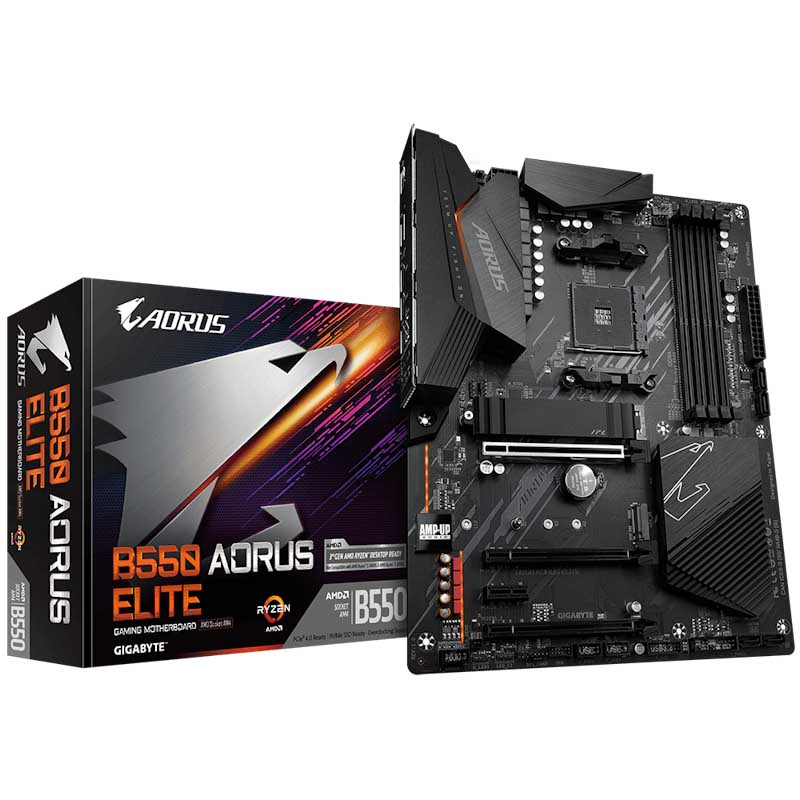

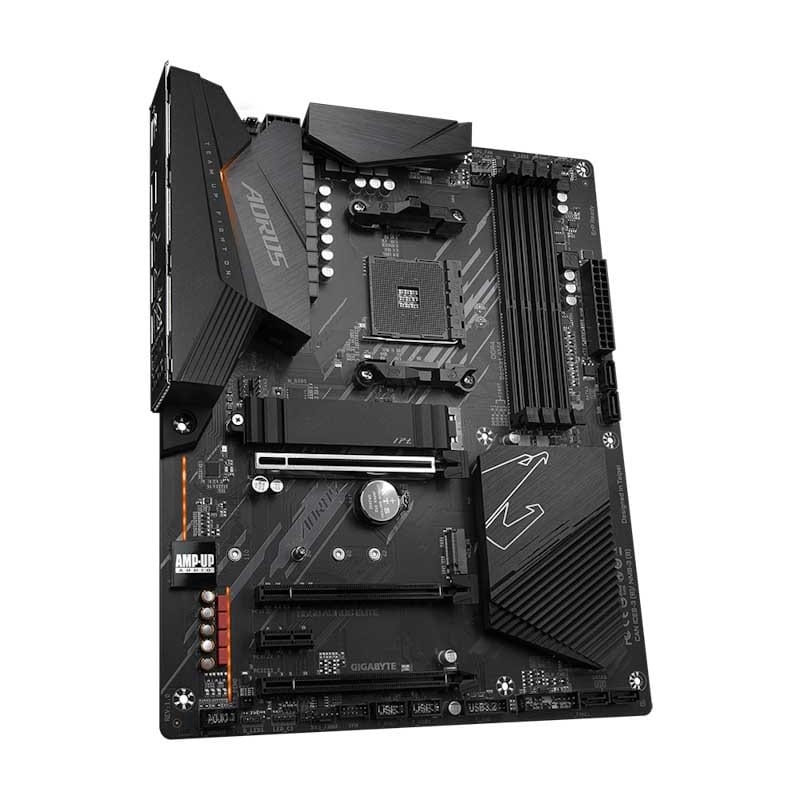

Feature of Gigabyte B550 Aorus Elite DDR4

1. Supports 3rd Gen AMD Ryzen™ Processors
2. Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
3. True 12 2 Phases Digital VRM Solution with 50A DrMOS
4. Advanced Thermal Design with Enlarged Surface Heatsinks
5. Ultra Durable™ PCIe 4.0 x16 Slot
6. Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
7. AMP-UP Audio with ALC1200 and WIMA Capacitors
8. Blazing Fast 2.5GbE LAN with Bandwidth Management
9. Rear DisplayPort & HDMI Support
10. RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
11. Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
12. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
13. Pre-installed IO Shield for Easy and Quick Installation

GIGABYTE B550 Aorus Elite DDR4  Motherboard with True 12+2 Phases Digital VRM, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with One Thermal Guard, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus

-Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
-Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
-True 12+2 Phases Digital VRM Solution with 50A DrMOS
-Advanced Thermal Design with Enlarged Surface Heatsinks
-Ultra Durable™ PCIe 4.0 x16 Slot
-Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
-AMP-UP Audio with ALC1200 and WIMA Capacitors
-Blazing Fast 2.5GbE LAN with Bandwidth Management

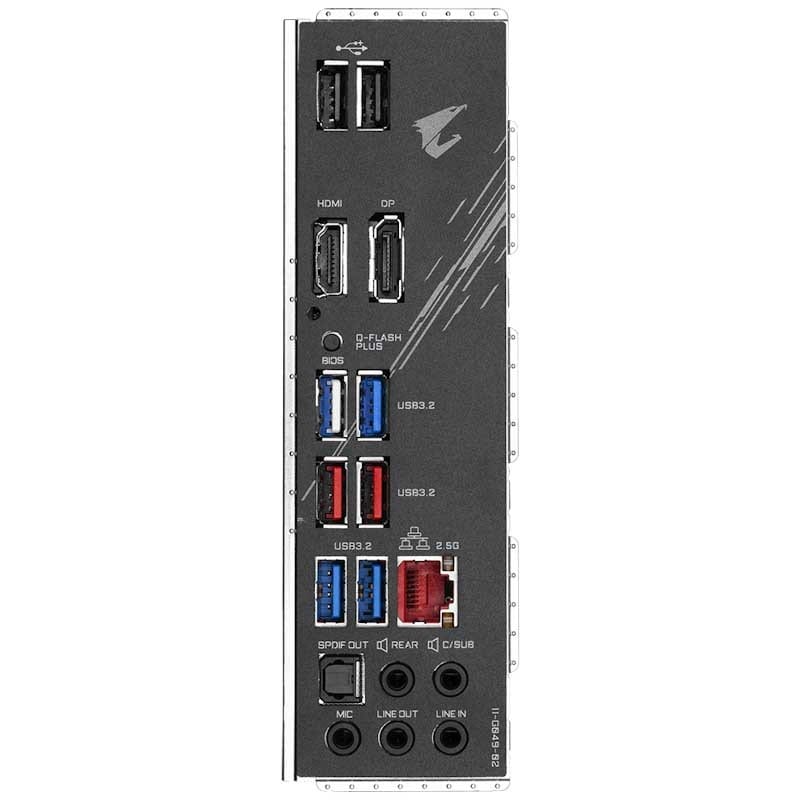

-Rear DisplayPort & HDMI Support
-RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
-Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
-Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
-Pre-installed IO Shield for Easy and Quick Installation

DESIGN CONCEPT DOMINANT IN DARKNESS

In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

AMD StoreMI Technology

GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

ULTIMATE POWER DESIGN

To fully support the latest 3rd Gen AMD Ryzen™ processors, B550 AORUS motherboards equip with the ultimate power solution which is true direct, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 AORUS motherboards for enthusiast. No Compromise and never stop to achieve higher.

CPU Power Connector
True 12+2 Phases Digital Power Design

-Digital PWM Controller delivers appropriate voltage to the CPU
-True 12+2 Phases DrMOS with PWM Doublers design to deliver stable power to the CPU. With capability to handle up to 700 Amps current in a total.
-All-solid capacitors to improve Transient response and minimize oscillation.
-24pin+8pin Solid Pin CPU Power Connectors
B550 AORUS ELITE motherboard uses an True 12+2 phases digital power design which includes PWM controller, doublers and DrMOS. These 100% digital controller offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen™ processors.

UNPARALLELED PERFORMANCE

GIGABYTE realize that customer won't stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade.

ADVANCED THERMAL SOLUTION

Unthrottled performance is guaranteed by the advanced thermal solution which including Enlarged Heatsinks, High Quality Thermal Conductivity Pads and Thermal Guards. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading. It provides lower temperatures for enthusiasts, overclockers and professional gamers.

NEXT GENERATION CONNECTIVITY

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 AORUS motherboards provide all next generation network, storage, and WIFI connectivity to keep you up to speed.

HI-FI AUDIO SYSTEM

For enthusiasts, sound quality is just as essential to the gaming experience. B550 motherboards are equipped with high quality audio components such as Hi-Fi grade WIMA FKP2 capacitors and Nichicon Fine Gold capacitors to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

DEFINITIVE AESTHETICS

B550 motherboards feature RGB FUSION 2.0 and offer the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make your PC unique and stylish.

ULTRA DURABLE

GIGABYTE is reputable for its product durability and high standard of manufactured process. Needless to say, we use the best, high quality components on B550 motherboards and reinforce each part of components to be solid and durable.

GIGABYTE BIOS & APP CENTER

Good software goes hand in hand with perfect hardware. B550 motherboards bundled several useful and intuitive software to help users to control every aspect of motherboard.

Specifications of Gigabyte B550 Aorus Elite DDR4
