- 12%
Motherboard

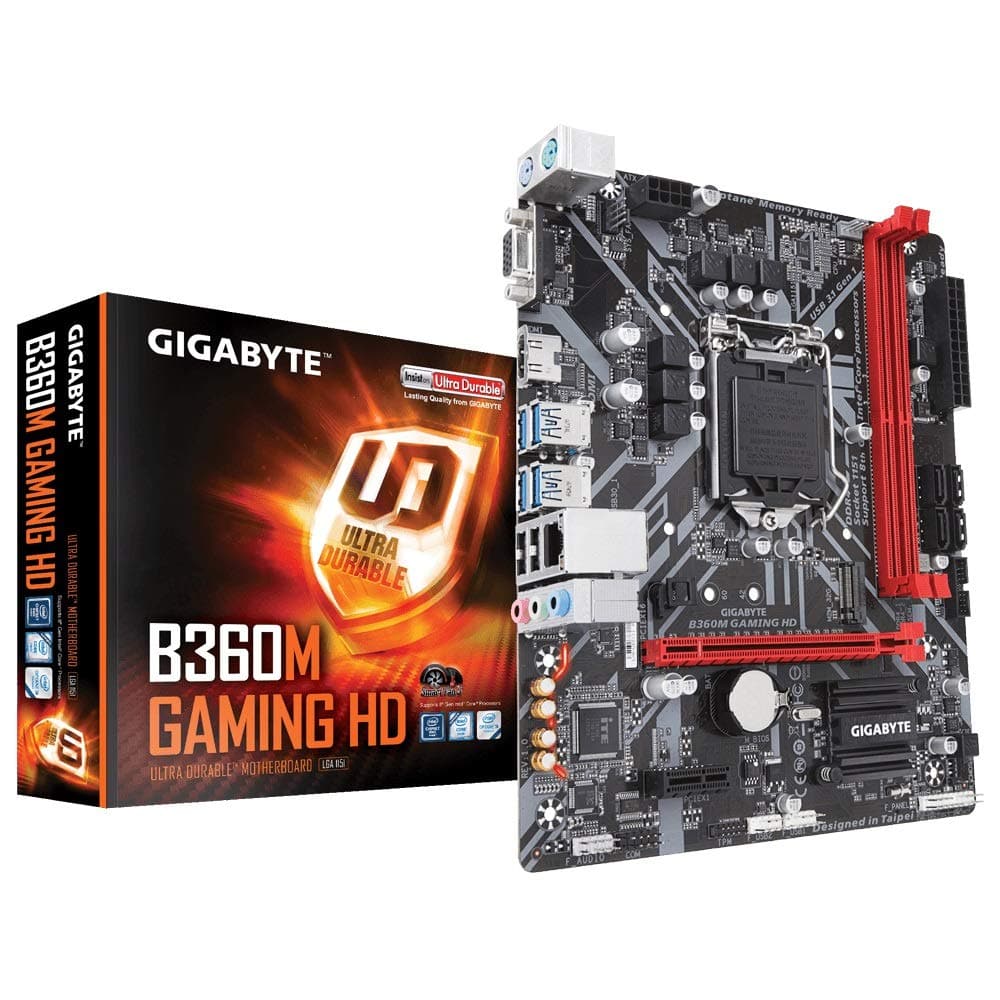

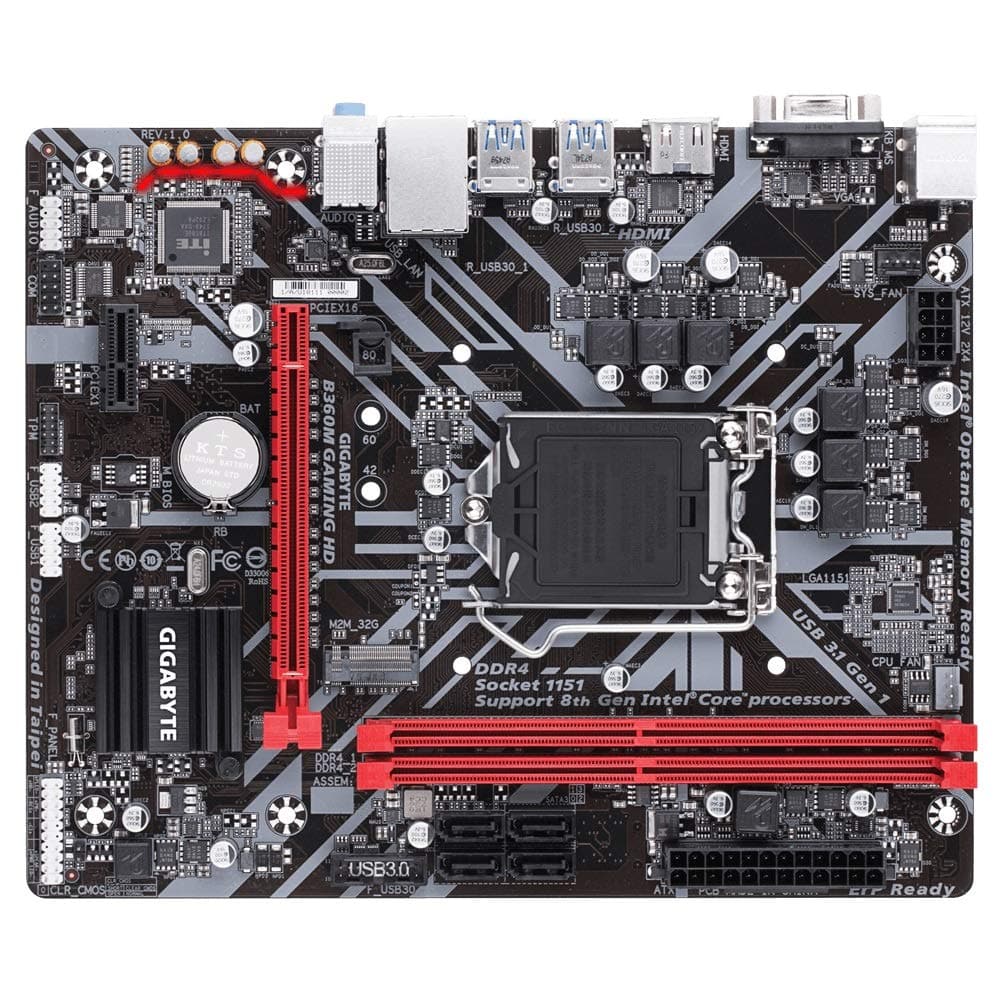

GIGABYTE B360M Gaming HD DDR4 Intel Motherboard
Rs. 5,700.00
Rs. 5,000.00
Out Of Stock
Brand : Gigabyte
Gigabyte-B360M-Gaming-HD
Safe Payment
Pay with the world’s most payment methods.
Confidence
Protection covers your purchase
Worldwide Delivery
Ship to over 200 countries & regions.
Hotline
+91-99250 02827
Features of GIGABYTE B360M Gaming HD DDR4 Intel Motherboard
- Supports 9th and 8th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4
- New Hybrid Digital PWM Design
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
- GIGABYTE B360M Gaming HD Exclusive 8118 Gaming LAN with Bandwidth Management
- CEC 2019 Ready, Save the Power as Easy as One Click
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
- Ultra Durable™ 15KV Surge LAN Protection
- Intel® Optane™ Memory Ready
Specifications of GIGABYTE B360M Gaming HD DDR4 Intel Motherboard
| CPU |
Support for 9th and 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel®Pentium® processors/ Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU |
| Chipset | Intel® B360 Express Chipset |
| Memory |
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor. |
| Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB Actual support may vary by CPU |
| Audio |
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots |
1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Storage Interface |
Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready |
| USB |
Chipset: 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper |

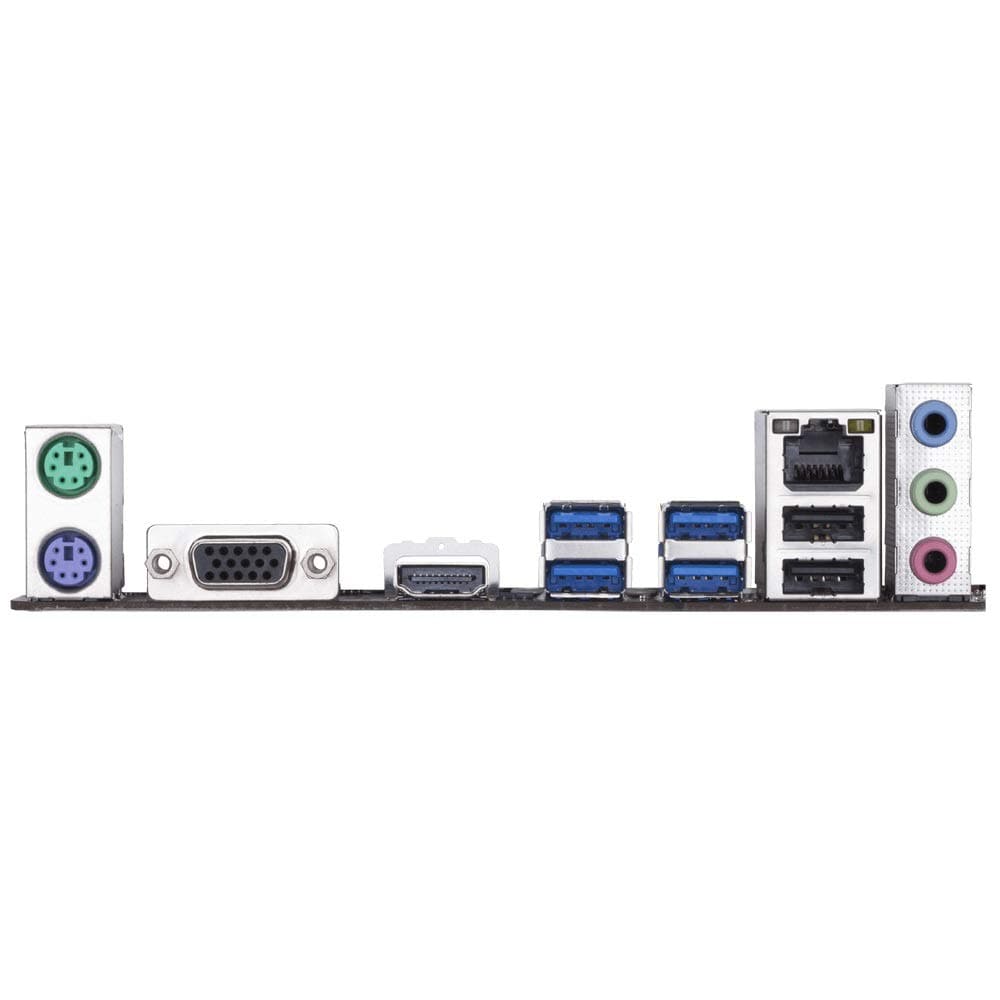

| Back Panel Connectors |
1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS |
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install |
| Bundle Software |
Norton® Internet Security (OEM version) Realtek 8118 Gaming LAN bandwidth Control Utility |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
