GIGABYTE A320 MA -M2 DDR4 AMD Motherboard

360˚

- 28%

Motherboard

GIGABYTE A320 MA -M2 DDR4 AMD Motherboard

Rs. 6,750.00 Rs. 4,809.00

Availability : Out Of Stock

Brand : Gigabyte

SKU : GIGABYTE-A320-MA-M2-Motherboard

Tags : CATP_GIGABYTE, CATQ_Motherboard, Gigabyte, MOB12_1, MOB13_Gen3, MOB14_Gen3, MOB15_Black, MOB16_0, MOB17_4, MOB18_6, MOB19_0, MOB1_A320, MOB20_0, MOB21_0, MOB22_1, MOB23_55, MOB24_AMD Motherboard, MOB2_MATX, MOB3_AM4, MOB4_64, MOB5_3200, MOB6_2, MOB7_DDR4, MOB8_1

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of Gigabyte A320 MA-M2 DDR4

Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Fast USB 3.1 Gen 2 with USB Type-A
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
Smart Fan 5 features 5 Temperature Sensors and 3 Hybrid Fan Headers
GIGABYTE™ UEFI BIOS
All New GIGABYTE™™ APP Center, Simple and Easy Use

Specifications of Gigabyte A320 MA-M2 DDR4

CPU	AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors
Chipset	AMD A320
Memory	4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 3200(O.C.)/2933(O.C.)/2667/2400/2133 MHz memory modules Support for higher than DDR4 2667 MHz may vary by CPU. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz* Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 2 GB * Actual support may vary by CPU.
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16)* Actual support may vary by CPU.(The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots(The PCI Express x1 slots conform to PCI Express 2.0 standard.
Storage Interface	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) Actual support may vary by CPU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
USB	Chipset: 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 3 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 2 x serial port headers 1 x Trusted Platform Module (TPM) header 1 x parallel port header 1 x Clear CMOS jumper

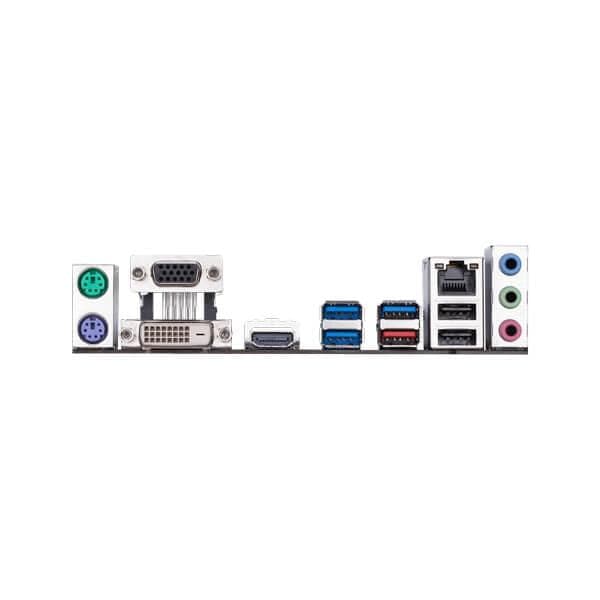

Back Panel Connectors	1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x USB 3.1 Gen 2 Type-A port (red) 3 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control* Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS 3D OSD Ambient LED AutoGreen BIOS Setup Cloud Station Color Temperature EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup Smart Keyboard Smart TimeLock System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install
Bundle Software	Norton® Internet Security (OEM version) cFosSpeed
Operating System	Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
