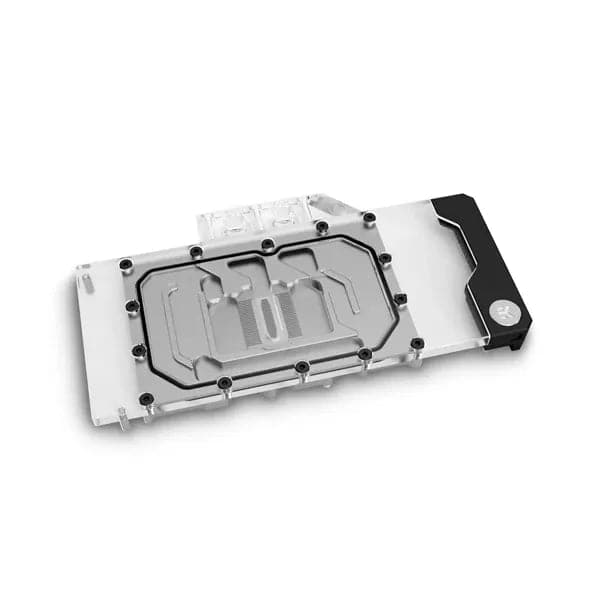

Features of EK - Quantum Vector Trinity RTX 3080/3090 D-RGB - Nickel + Plexi

This is the 2nd generation EK - Quantum Vector Trinity RTX 3080/3090 D-RGB - Nickel + Plexi, designed for Zotac® Trinity RTX 3080 and 3090 graphics cards based on the latest NVIDIA® Ampere™ architecture.

• EK-Quantum Vector Trinity RTX 3080/3090 D-RGB series high-performance water block
• Mounting mechanism with screw-in brass standoffs
• Necessary mounting screws, nuts, and washers
• 2x Nickel plated brass plug G1/4”
• EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
• Thermal pads
• Thermal grease EK-TIM Ectotherm (1g)

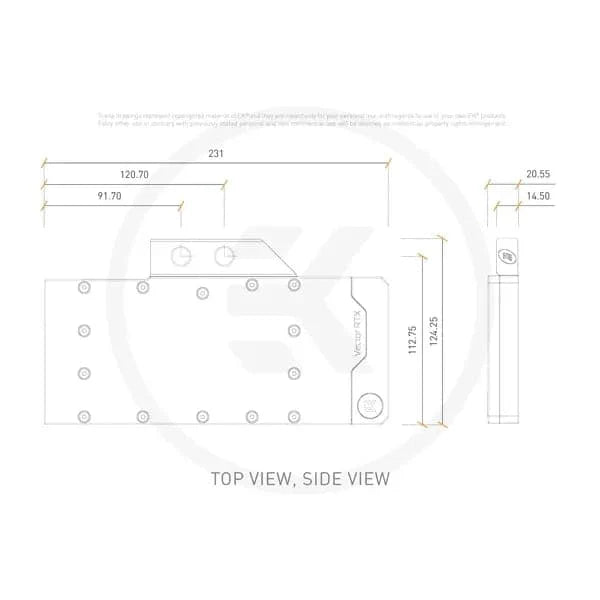

• Dimensions: (LxHxW) - 231x124x20.5mm
• D-RGB cable length: 500mm

• D-RGB LED count: 5

• D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
• Material / Design / Color option - Nickel Plexi

• Threads - G1/4

• Chip Manufacturer - Nvidia Geforce

An EK water block for Nvidia GeForce RTX 3080 and 3090

EK-Quantum Vector Trinity 3080/3090 D-RGB water block is compatible with Zotac Trinity RTX 3080 and 3090 graphics cards. The Vector water block actively cools the GPU, VRAM (on the front), MOSFETs, and chokes in the VRM (voltage regulation module)

The Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module) as a cooling liquid is channeled right over these critical areas.

These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. Additionally, this new design allows the terminal to be screwed directly onto the copper cold plate of the GPU block, making it more rigid and reducing the chances of damaging the water block.

The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.

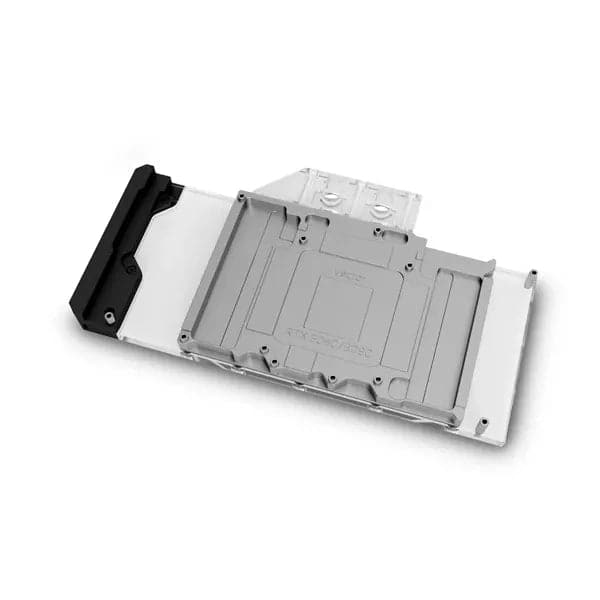

The base of the block is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of glass-like cast Acrylic. These 2nd generation Vector GPU water blocks also feature plexi terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure.

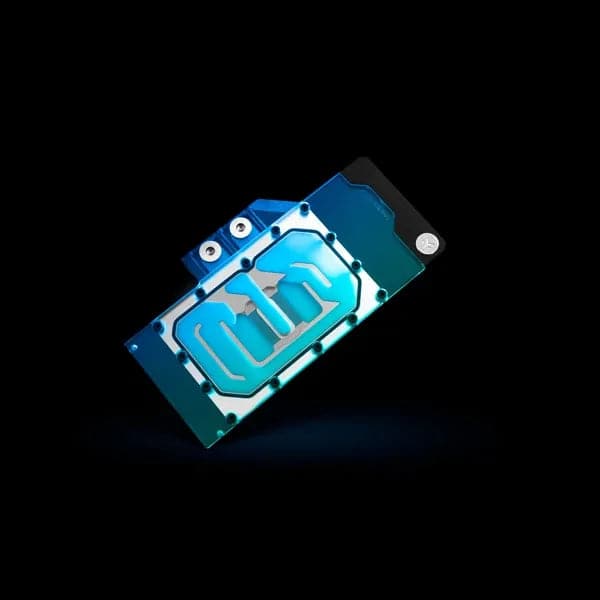

D-RGB lighting on EK-Quantum Vector Trinity RTX 3080/3090 D-RGB water block

The aesthetic end-piece is housing the addressable D-RGB LED strip. This water block boasts a total of 5 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.

Backplate for the 3080/3090 water block

EK recommends the purchase of a retention backplate, especially for the 3090 models of graphics cards. The backplate improves the overall aesthetics of your graphics cards and also provides additional passive cooling for the GPU core, VRAM on the 3090 cards, and backside of the printed circuit board VRM section.

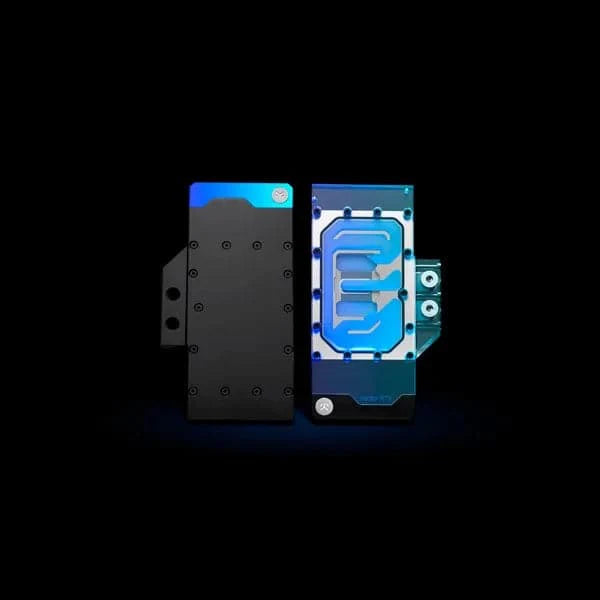

If you desire ultimate cooling performance and unrivaled aesthetics, EK recommends the purchase of an active backplate. The brand new Vector Active Backplate directly cools all PCB hotspots found on the backside of the GPU core and VRM (voltage regulation module). In the case of RTX 3090, the VRAM located on the backside is being cooled, while the PCB on RTX 3080 GPUs is being cooled around the front-mounted VRAM. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks, allowing maximum cooling.

Specifications of EK - Quantum Vector Trinity RTX 3080/3090 D-RGB - Nickel + Plexi
