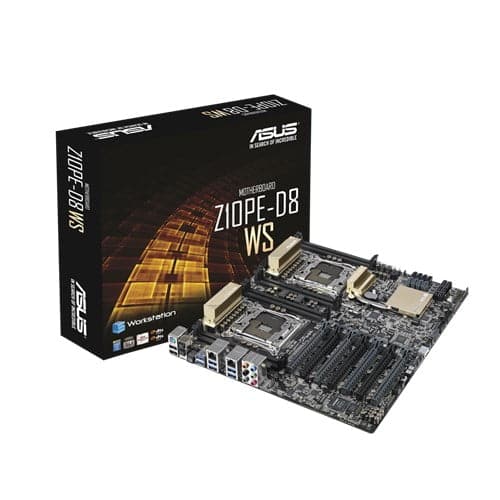

ASUS Z10PE-D8 WS DDR4 Intel Motherboard

Rs. 53,150.00 Rs. 41,994.00

Availability : Out Of Stock

Brand : ASUS

SKU : ASUS-Z10PE-D8-WS

Tags : Asus, CATP_Asus, CATQ_Motherboard, MOB12_0, MOB13_Gen3, MOB14_Gen3, MOB15_Black, MOB16_0, MOB17_8, MOB18_8, MOB19_0, MOB1_Z10, MOB20_1, MOB21_2, MOB22_0, MOB23_75, MOB24_Intel Motherboard, MOB2_ATX, MOB3_LGA2011, MOB4_512, MOB5_2400, MOB6_8, MOB7_DDR5, MOB8_1

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of ASUS Z10PE-D8 WS DDR4

Build in Intel® Socket 2011-3: Square type (80x80mm; The maximum length of the heatsink screw thread is 3.7mm.) Processors
Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v4 product family
Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v4 product family

Specifications of ASUS Z10PE-D8 WS DDR4

CPU	Build in Intel® Socket 2011-3: Square type (80x80mm; The maximum length of the heatsink screw thread is 3.7mm.) ProcessorsIntel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v4 product familyIntel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v4 product family
Chipset	Intel® C612 PCH
Memory	8 x DIMM, Max. 512GB, DDR4 1866*/2400/2133/1600/1333 MHz RDIMM, LR-DIMM MemoryQuad Channel Memory Architecture
Graphic	ASpeed AST2400 32MBVGA port*1- Supports VGA with max. resolution 1920 x 1200 @ 60 Hz
Multi-GPU Support	Supports NVIDIA® 4-Way SLI™ TechnologySupports AMD 4-Way CrossFireX Technology
Storage	Intel® C612 chipset :4 x SATA 6Gb/s port(s), gray, 3,4 x SATA 6Gb/s port(s), black, 3,1 x SATA Express port, gray, 41 x M.2 Socket 3, 5Support Raid 0, 1, 5, 10ASMedia® SATA Express controller :1 x SATA Express port, gray, , Compatible with 2 x SATA 6.0 Gb/s ports
Expansion Slots	4 x PCIe 3.0/2.0 x16 (dual x16 or quad x8) 22 x PCIe 3.0/2.0 x16 (dual x16) 21 x PCIe 3.0/2.0 x16 (dual x8) *2
LAN	Intel® I210-AT, 2 x Gigabit LAN Controller(s)
Audio	Realtek® ALC1150 8-Channel High Definition Audio CODEC- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)Audio Feature :- DTS Ultra PC II- DTS Connect- Optical S/PDIF out port(s) at back panel- BD Audio Layer Content Protection- Absolute Pitch 192khz/24bit true BD lossless sound
USB Ports	Intel® C612 chipset :4 x USB 3.1 Gen 1 port(s) (4 at back panel, ) Intel® C612 chipset : 4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board) ASMedia® USB 3.1 Gen 1 controller : 6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board)
Workstation Feature	7 x PCIe x 16 slot(s)ASWM EnterpriseASUS Dr. Power12K hours CapacitorsProCool Power ConnectorQ-Code LoggerUSB BIOS Flashback™ASUS PIKE SAS upgrade kit(Optional)
Special Features	ASUS Digital Power Design :- Industry leading Digital 8 Phase Power Design - Industry leading Digital 2 Phase DRAM Power Design ASUS Exclusive Features : - Front Panel USB 3.0 Support ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-pipe solution ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-Slot - ASUS Q-DIMM
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s)2 x LAN (RJ45) port(s)6 x USB 3.1 Gen 1 (blue)2 x USB 2.0 *61 x Optical S/PDIF out1 x USB BIOS Flashback® Button(s)1 x Q-Code Logger button1 x 8-channel Audio I/O
Internal I/O Ports	1 x AAFP connector2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)2 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports1 x M.2 Socket 31 x TPM connector(s)1 x COM port(s) connector(s)8 x SATA 6Gb/s connector(s)2 x CPU Fan connector(s) (2 x 4 -pin)7 x Chassis Fan connector(s) (7 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)2 x 8-pin ATX 12V Power connector(s)1 x RAID key header(s)1 x VGA connector(s)1 x AUX panel header(s)1 x SMBus header(s)1 x System panel(s)1 x Power-on button(s)1 x Reset button(s)1 x Clear CMOS button(s)1 x Dr.Power switch(es)1 x Serial Port header1 x ASMB8-iKVM connector1 x 6-pin EATX 12V_3 Power connector
Accessories	I/O Shield1 x COM port cable(s)12 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x 3-Way SLI bridge(s)1 x 4-Way SLI bridge(s)1 x SLI bridge(s)1 x 2-port USB 2.0 module(s)1 x VGA bracket(s)1 x ASWM Enterprise SDVD
BIOS	128 Mb Flash ROM, UEFI BIOS, PnP, WfM2.0, SMBIOS 2.6.1, ACPI 3.0, ASUS EZ Flash Utility, ASUS CrashFree Technology
Manageability	WfM 2.0, DMI 2.0, WOL by PME, PXE
Support Disc	Drivers、ASUS Utilities、ASUS Update
Operating System	Windows® Server 2012 R2Windows® Server 2012Windows® Server 2008 Enterprise R2 SP1 64-bitWindows® 7 32/64-bitWindows® 8.1 32/64-bitWindows® 8 32/64-bit
Form Factor	EEB Form Factor12 inch x 13 inch ( 30.5 cm x 33.02 cm )
Weight	Color Box (1-in-1)Net Weight : 1.5 KGGross Weight : 3.4 KGBulk Pack(5-in-1)Net Weight : 7.5 KGGross Weight : 10.2 KG
Environment	Operation temperature: 10℃ ~ 35℃Non operation temperature: -40℃ ~ 70℃Non operation humidity: 20% ~ 90% ( Non condensing)
Warranty	3 Years
Note	2400MT/s is supported only when installing E5-2600 v4/E5-1600 v4 CPUs1 with bracket2 This motherboard is ready to support PCIe 3.0 SPEC. Functions will be available when using PCIe 3.0-compliant devices. Please refer to www.asus.com for updated details3 4 x gray from SATA controller, 4 x black from sSATA controller4 Compatible with 2 x SATA 6.0 Gb/s ports from SATA controller 5 M.2 Socket 3 supports M Key and type 2260/2280/22110 storage devices6 1 supports USB BIOS Flashback®, 1 supports Q-Code Logger***Features, Price and Specifications are subject to change without notice.
