ASUS WS X299 Sage DDR4 Intel Motherboard

360˚

- 52%

Motherboard

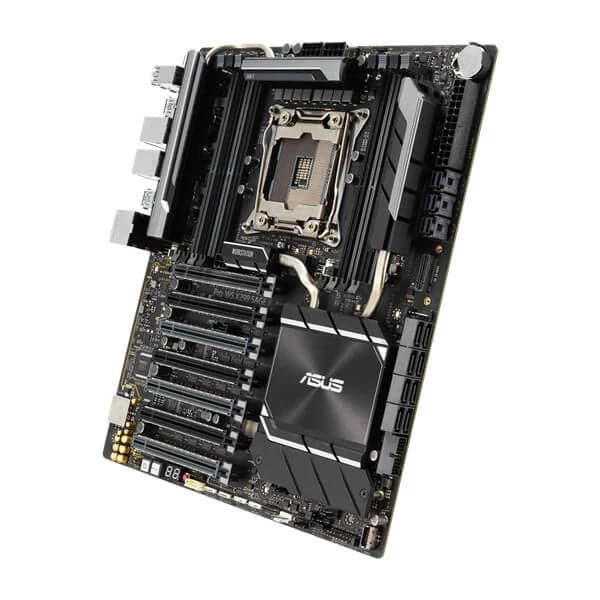

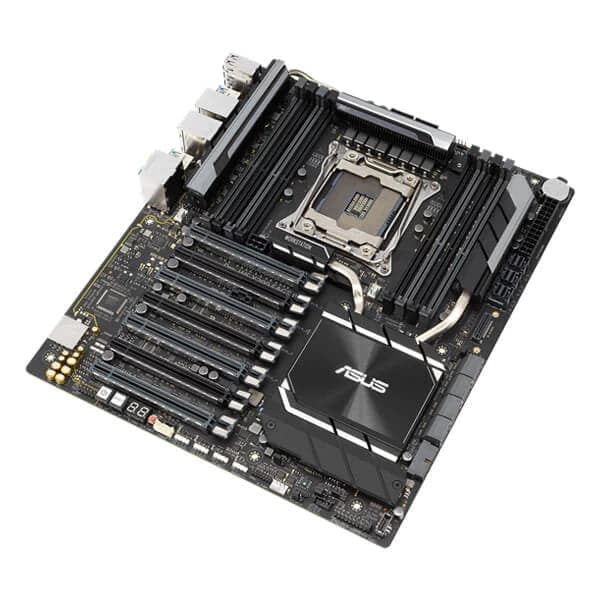

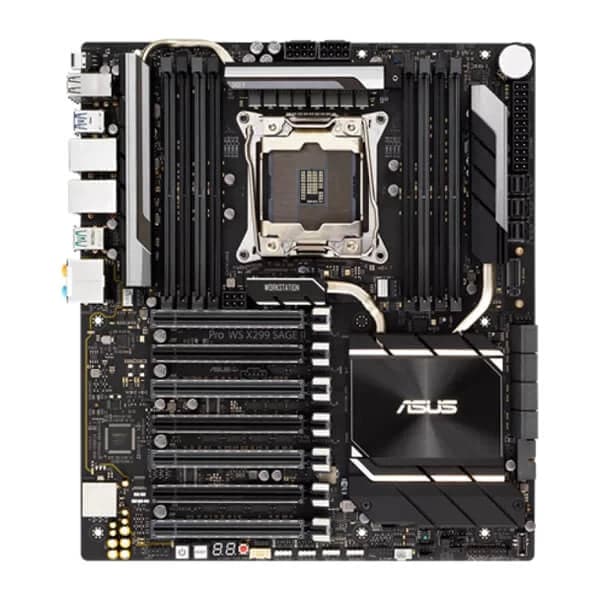

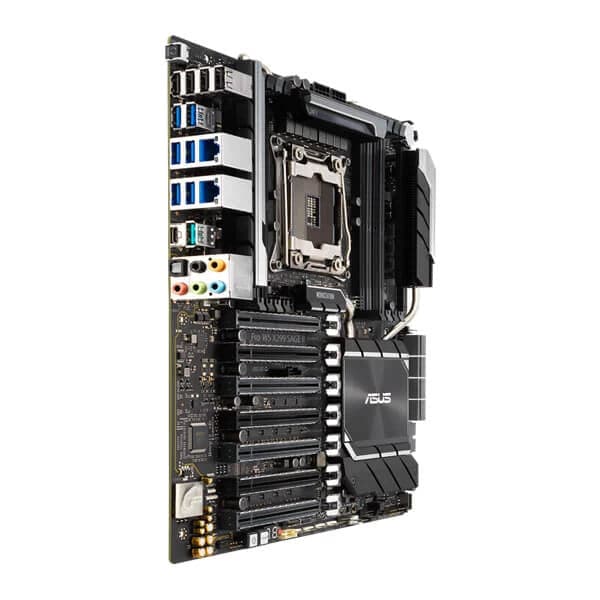

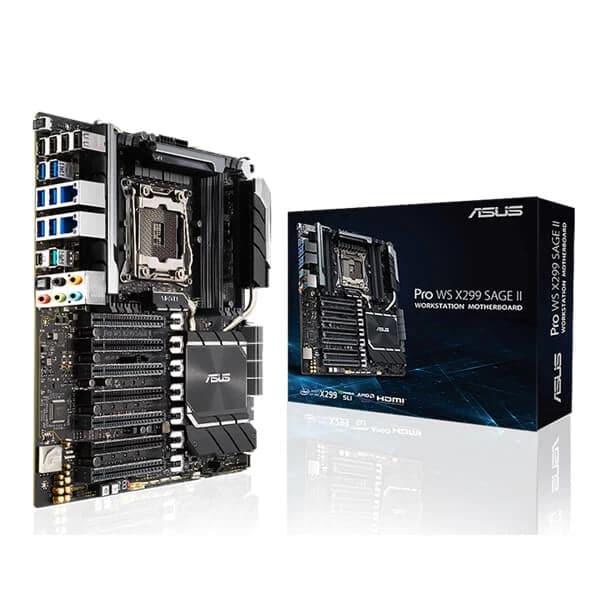

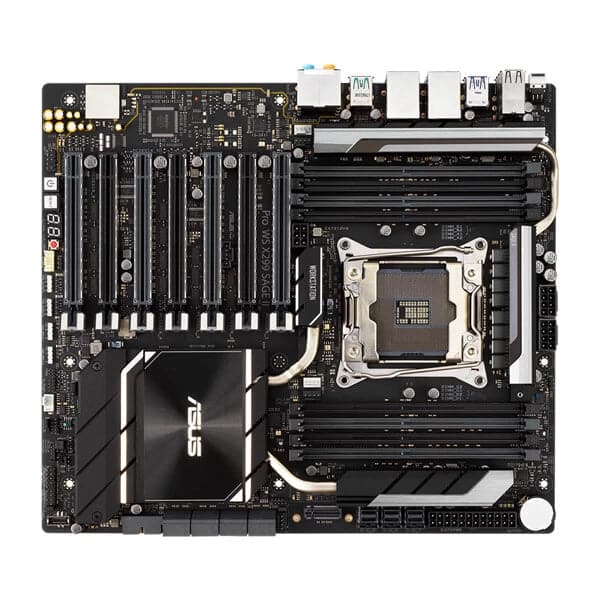

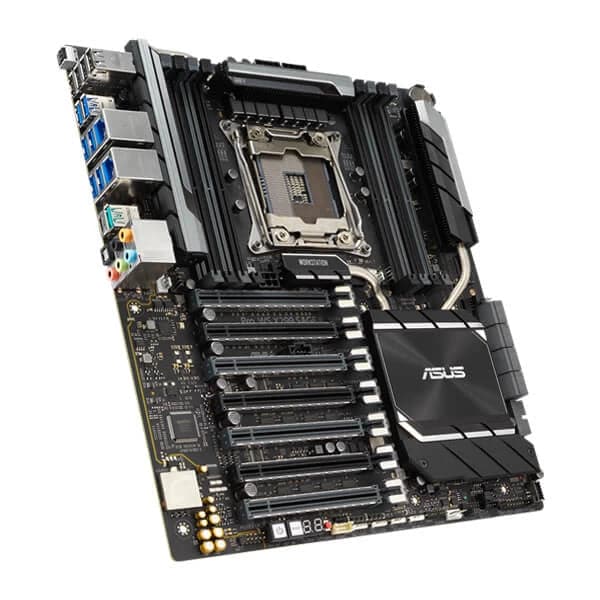

ASUS WS X299 Sage DDR4 Intel Motherboard

Rs. 75,000.00 Rs. 35,690.00

Availability : Out Of Stock

Brand : ASUS

SKU : ASUS-WS-X299-SAGE

Tags : Asus, CATP_Asus, CATQ_Motherboard, MOB10_None, MOB11_5, MOB12_0, MOB13_Gen3, MOB14_Gen3, MOB15_Black, MOB16_1, MOB17_8, MOB18_11, MOB19_0, MOB1_X299, MOB20_1, MOB21_1, MOB22_0, MOB23_100, MOB24_Intel Motherboard, MOB2_EATX, MOB3_LGA2066, MOB4_256, MOB5_4200, MOB6_8, MOB7_DDR4, MOB8_2, MOB9_0

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Features of ASUS WS X299 SAGE Motherboard

Intel® Socket 2066 Core™ X-Series Processors
Supports Intel® Virtual RAID on CPU (VROC)
Supports Intel® Extreme Memory Profile (XMP)
Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Only on Select SKUs, With 1 DIMM per channel. Additional DIMM loading on any channel may impact maximum memory speed by one bin.

Specifications of ASUS WS X299 Sage DDR4 Intel Motherboard

CPU	Intel® Socket 2066 Core™ X-Series Processors Supports Intel® Virtual RAID on CPU (VROC)* The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
Chipset	Intel® X299
Memory	Intel® Core™ X-series Processors (6-core above)8 x DIMM, Max. 128GB, DDR4 4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Intel® Core™ X-series Processors (4-core)4 x DIMM, Max. 64GB, DDR4 4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP)* Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Multi-GPU Support	Supports NVIDIA® 4-Way SLI™ Technology Supports AMD 4-Way CrossFireX Technology
Expansion Slots	7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)
Storage	Intel® X299 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)8 x SATA 6Gb/s port(s)2 x U.2 connector*1Support Raid 0, 1, 5, 10Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAIDSupports Intel® Smart Response TechnologyIntel® Rapid Storage Technology 15 supportIntel® Optane™ Memory Ready Intel® Virtual RAID (VROC) support for CPU RAID
LAN	Intel® I210-AT, 1 x Gigabit LAN Controller(s)Intel® I219-LM , 1 x Gigabit LAN Controller(s)
Audio	Realtek® ALC S1220A 7.1-Channel High Definition Audio CODEC - Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in)Audio Feature :- DTS Connect- DTS Headphone:X - Audio amplifier: Provides the highest-quality sound for headphone and speakers- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity- Unique de-pop circuit: Reduces start-up popping noise to audio outputsSeparate layer for left and right track, ensuring both sound deliver equal quality
USB Ports	Intel® X299 Chipset : 8 x USB 3.1 Gen 1 port(s) (6 at back panel, , 2 at mid-board)Intel® X299 Chipset : 4 x USB 2.0 port(s) (4 at back panel, )ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM)ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at mid-board)
Special Features	OC Design - ASUS PRO Clock II Technology5-Way Optimization by Dual Intelligent Processors 5- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core AppTPUFan Xpert4- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling controlASUS 5X Protection III :- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protectionASUS EPU :- EPU ASUS Digital Power Design :- Industry leading Digital 8 Phase CPU Power Design- Industry leading Digital 2 Phase DRAM Power DesignAURA :- Aura RGB Strip Headers- Aura Addressable Strip Header(s)ASUS Exclusive Features :- AI Suite 3- Ai Charger+- Crystal Sound 3ASUS EZ DIY :- ASUS CrashFree BIOS - ASUS EZ Flash - ASUS USB BIOS Flashback - Multi-language BIOSASUS Q-Design :- ASUS Q-Shield- ASUS Q-Code- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMM - ASUS Q-ConnectorM.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)Asus Control Center (ACC) IT management software supported
Operating System Support	Windows® 10 64-bit
Back I/O Ports	2 x LAN (RJ45) port(s)1 x USB 3.1 Gen 2 (teal blue)Type-A1 x USB 3.1 Gen 2 (black)USB Type-CTM6 x USB 3.1 Gen 1 (blue) 4 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x Optical S/PDIF out1 x USB BIOS Flashback Button(s)1 x 8-channel Audio I/O
Internal I/O Ports	1 x Aura Addressable Strip Header(s)2 x U.2 port1 x AAFP connector1 x Aura RGB Strip Header1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)1 x TPM header1 x COM port(s) connector(s)8 x SATA 6Gb/s connector(s)1 x VROC_HW_Key1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 6-pin ATX Power connector2 x 8-pin ATX 12V Power connector(s)1 x EZ XMP switch1 x 5-pin EXT_FAN(Extension Fan) connector1 x Power-on button(s)1 x Reset button(s)1 x Clear CMOS button(s)1 x Water Pump header (4-pin)1 x System panel connector1 x Thermal sensor connector1 x USB 3.1 Gen 2 front panel connector1 x CPU_OV jumper1 x MemOK! Button1 x M.2 Fan Header
Accessories	User's manualASUS Q-Shield1 x Vertical M.2 bracket set1 x COM port cable(s)8 x SATA 6Gb/s cable(s)1 x M.2 screws1 x Supporting DVD1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)1 x 3-Way SLI bridge(s)1 x 4-Way SLI bridge(s)1 x SLI HB BRIDGE(2-WAY-M)1 x Q-Connector
Form Factor	CEB Form Factor 12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
