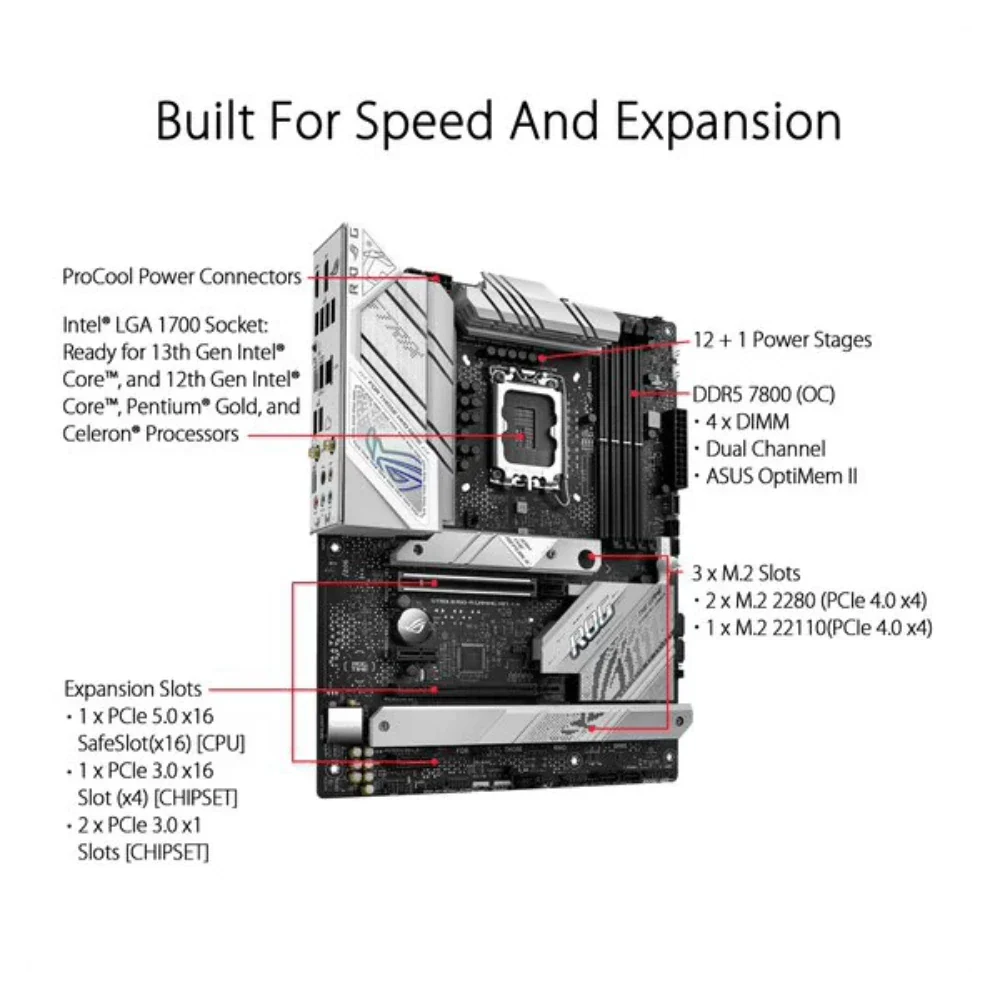

1. Intel^® LGA 1700 socket: Ready for 13th Gen Intel^® Core^™ processors and 12th Gen Intel^® Core^™, Pentium^® Gold, and Celeron^® processors
2. Robust Power Solution: 12 + 1 power stages, ProCool power connectors, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors

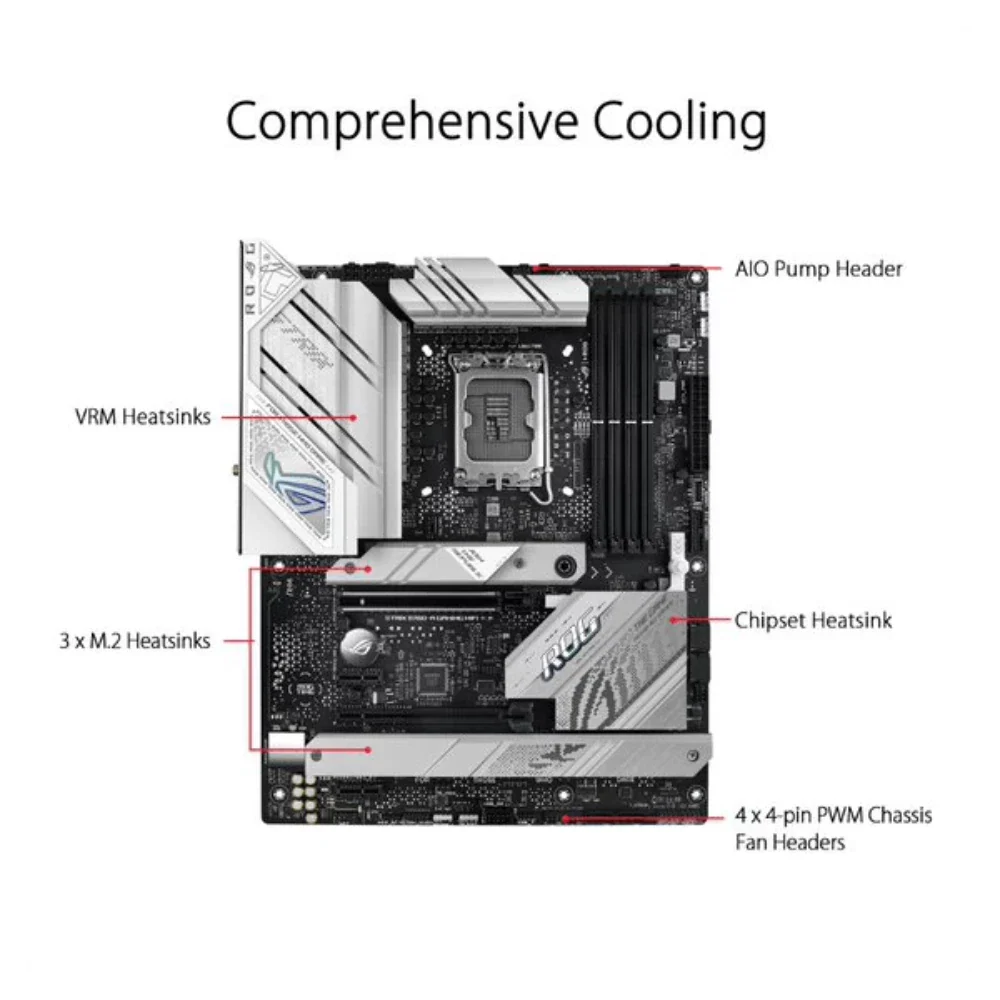

3. Optimized VRM Thermals: Thick heatsinks bridged to the VRM with high-conductivity thermal pads keep the solution cool during heavy workloads
4. Ample M.2 Support: Three PCIe 4.0 M.2 slots with heatsinks maintain optimal temperatures for maximum data transfer speed
5. Next-Gen Networking: On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5G Ethernet with ASUS LANGuard

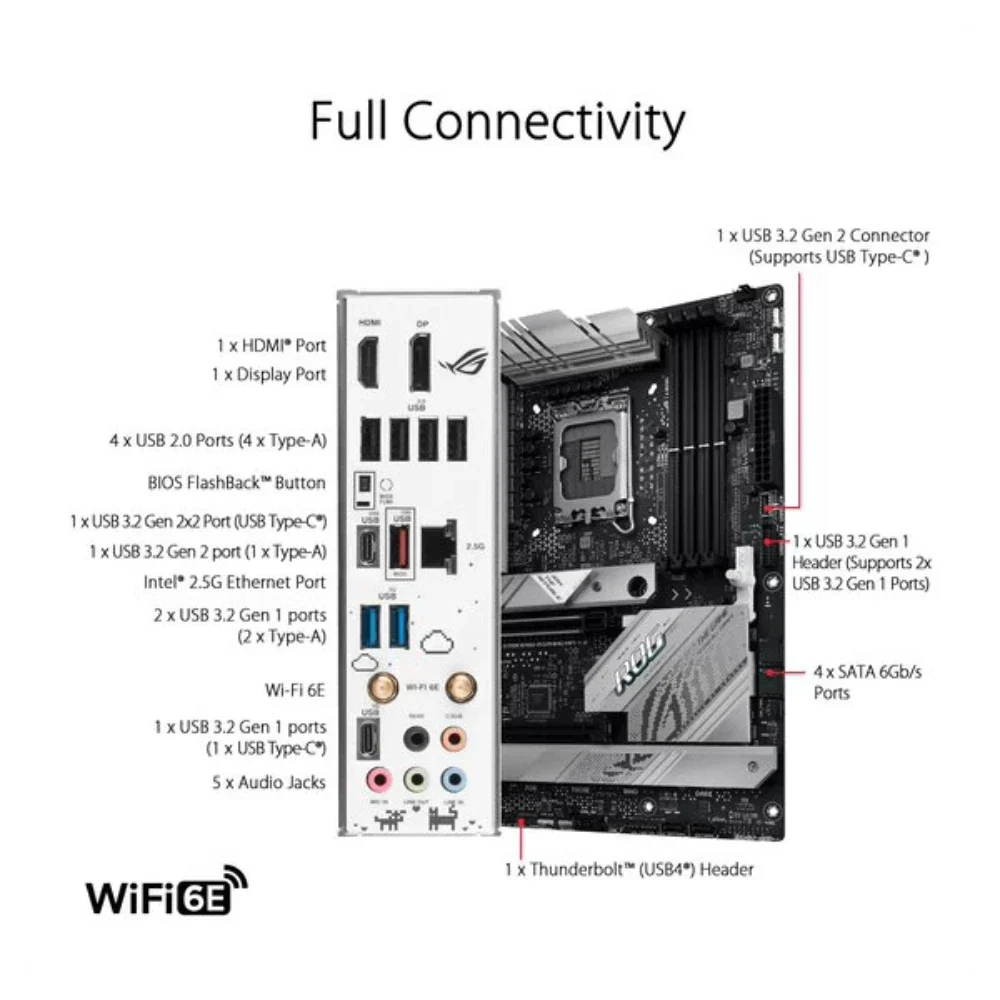

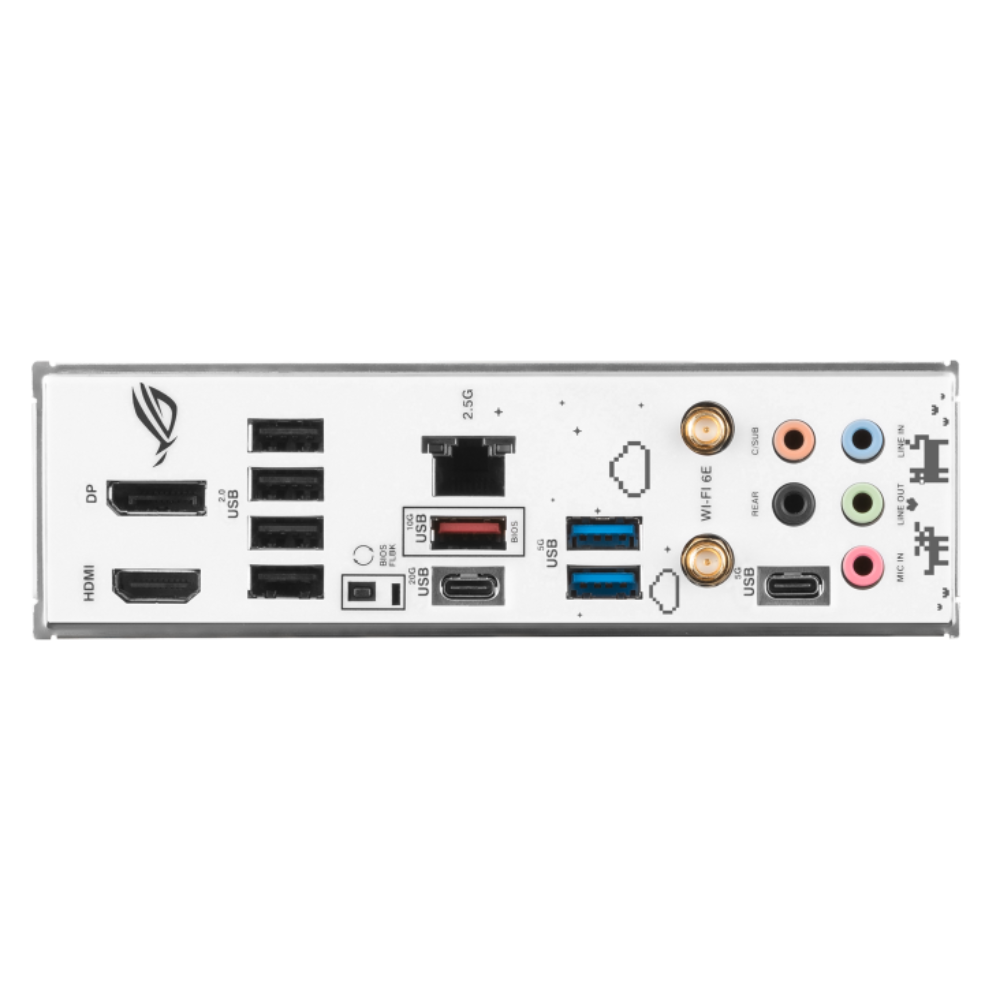

6. Abundant Connectivity: USB 3.2 Gen 2x2 Type-C^® rear I/O port, eight additional USB ports, USB 3.2 Gen 2 front-panel connector, PCIe 5.0 x16 SafeSlot, HDMI^® 2.1, and DisplayPort^™ 1.4
7. Intelligent Control: ASUS-exclusive AI Networking and Two-Way AI Noise Cancelation simplifies setup and improves performance
8. DIY-Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack^™ button, and Q-LED

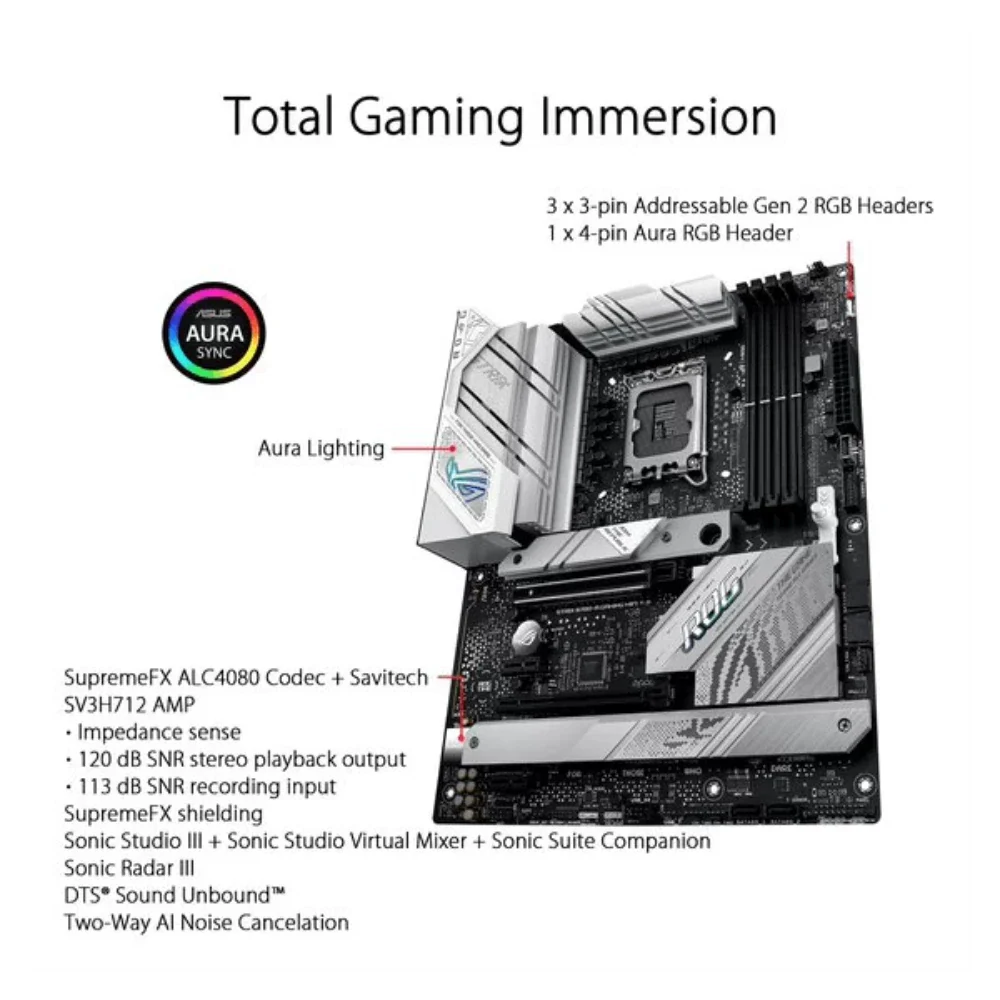

9. Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS^® Sound Unbound^™ and Sonic Studio III
10. Renowned Software: Bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86.

PCIE® SLOT Q-RELEASE

A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

POWER ARCHITECTURE

12 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.

ALLOY CHOKES AND DURABLE CAPACITORS

High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

SIX-LAYER PCB

A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

LEADING CONNECTIVITY

The Strix B760-A is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.

UNDENIABLY ROG STRIX

Diagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix B760-A bears all of them with pride. Its white, silver, and black color scheme pairs well with both dark and lighter-colored components. 8-bit accents show some gaming pride.

TWO-WAY AI NOISE CANCELATION

This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.

Specifications of ASUS ROG Strix B760-A Gaming Wifi DDR5
