Motherboard

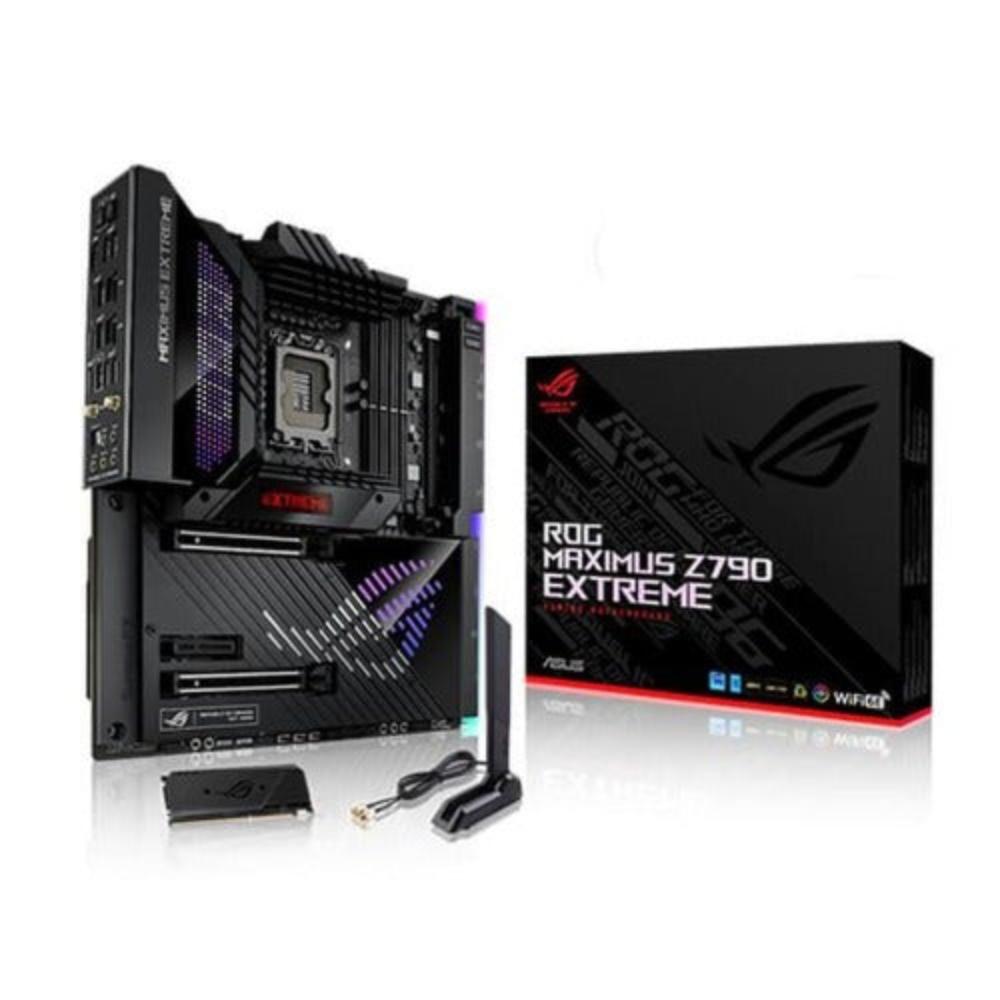

ASUS ROG Maximus Z790 Extreme Wifi DDR5 Intel Motherboard
Rs. 110,000.00
Rs. 98,994.00
Out Of Stock
Brand : ASUS
Asus-ROG-Maximus-Z790-Extreme-DDR5
Safe Payment
Pay with the world’s most payment methods.
Confidence
Protection covers your purchase
Worldwide Delivery
Ship to over 200 countries & regions.
Hotline
+91-99250 02827
Features of ASUS ROG Maximus Z790 Extreme Wifi DDR5 Intel Motherboard
With the ASUS ROG Maximus Z790 Extreme, every PCIe lane and I/O port is made available for your choice in cutting-edge hardware. Heavyweight heatsinks and cooling options to tame the thermals of any and all configurations. And the overclocking chops to easily take Intel 13th Gen processors well beyond 6GHz.

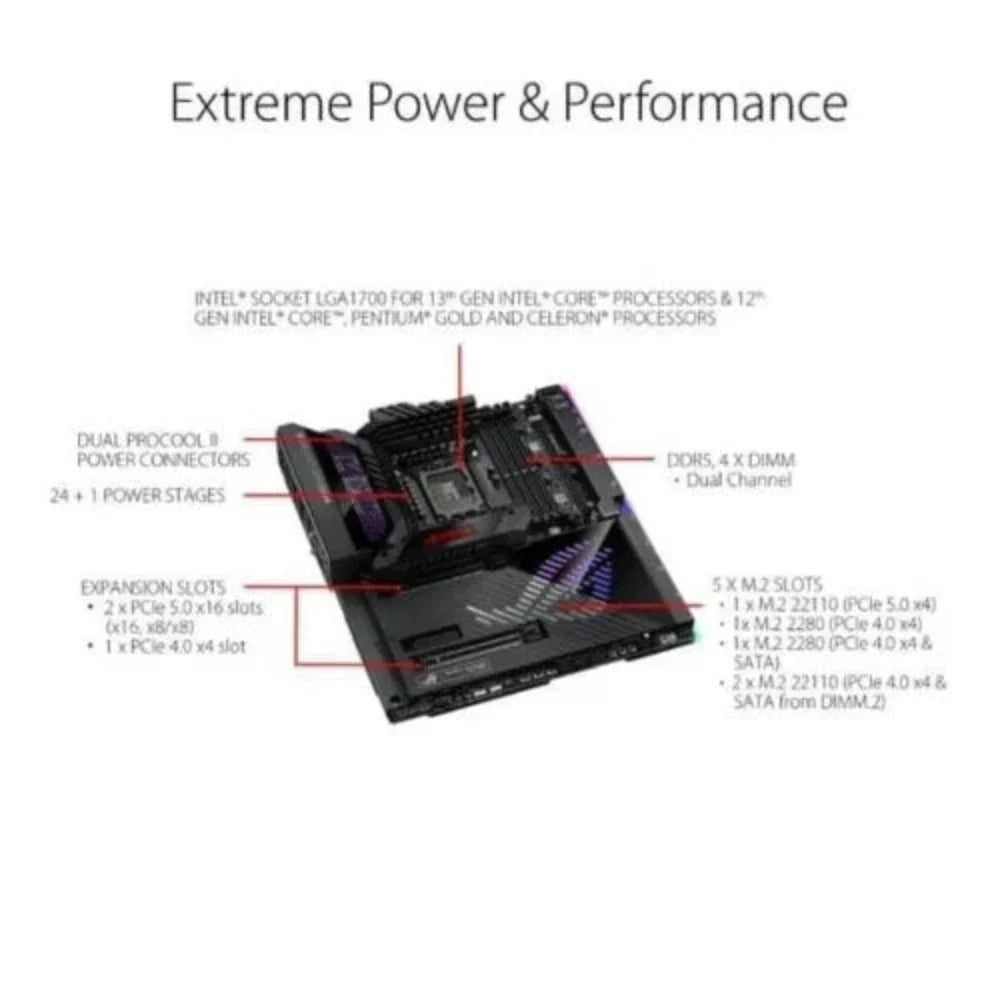

PERFORMANCE
Boundless power and advanced ROG firmware allow you to impose your will on Intel 13th Gen processors and DDR5 memory.

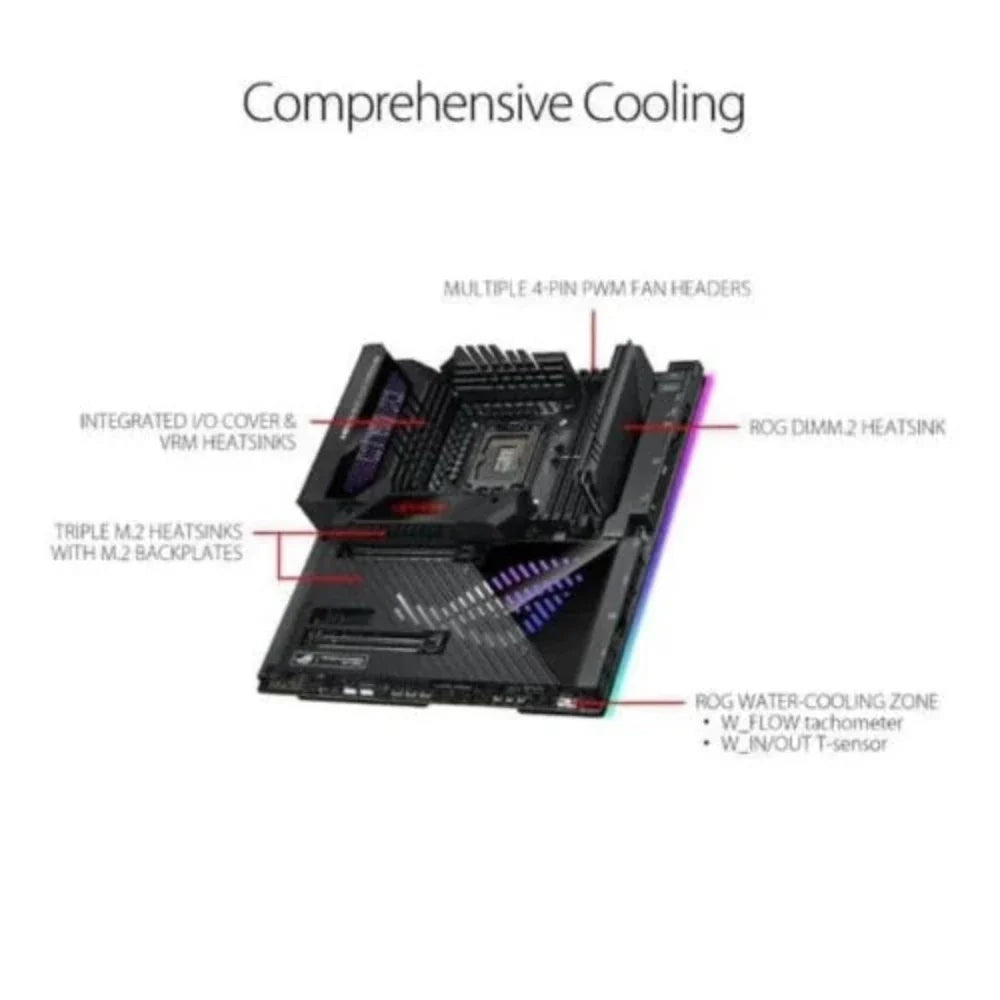

COOLING
All the headers and controls needed for complex fan setups and custom loops, and large heatsinks to keep high-speed drives and power components at optimum temperatures. Deploy your choice in CPU and GPU cooling and rock menacing horsepower with minimal noise.
CONNECTIVITY
Take system bandwidth to the extreme with future-ready ports for graphics, storage, and peripherals, and light up network connections with ultraspeed WIFI and Ethernet. Plug in to your heart’s content and then get deeper into the game with high-fidelity onboard audio.
OPTIMIZATION
A bevy of innovative tools are at your fingertips to control every aspect of your extreme system.
PERSONALIZATION
Uniquely you. Customizable lighting and onboard displays allow you to subtly accent system components or boldly cast a unified theme through your build.
Specifications of ASUS ROG Maximus Z790 Extreme
| CPU |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® Z790 Chipset |
| Memory |
4 x DIMM, Max.128GB, DDR5 7800+/7600/7400/7200/7000/6800/6600/6400/ 6200/ 6000/ 5800/ 5600/ 5400/ 5200/ 5000/4800 Non-ECC,Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration |
| Graphics |
1 x HDMI® port 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots |
Intel® 13th & 12th Gen Processors * 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) Intel® Z790 Chipset** 1 x PCIe 4.0x4 slot M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled. - To ensure compatibility of the device installed, |
| Ethernet |
1 x Intel® 2.5Gb Ethernet 1 x Marvell® AQtion 10Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth |
Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Supports Intel® Double Connect Technology Bluetooth® v5.3** |
| USB |
Rear USB (Total 10 ports) 1 x Thunderbolt™ 4 ports (1 x USB Type-C®) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) Front USB (Total 10 ports) 1 x Thunderbolt™ 4 connector (supports USB Type-C®) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |

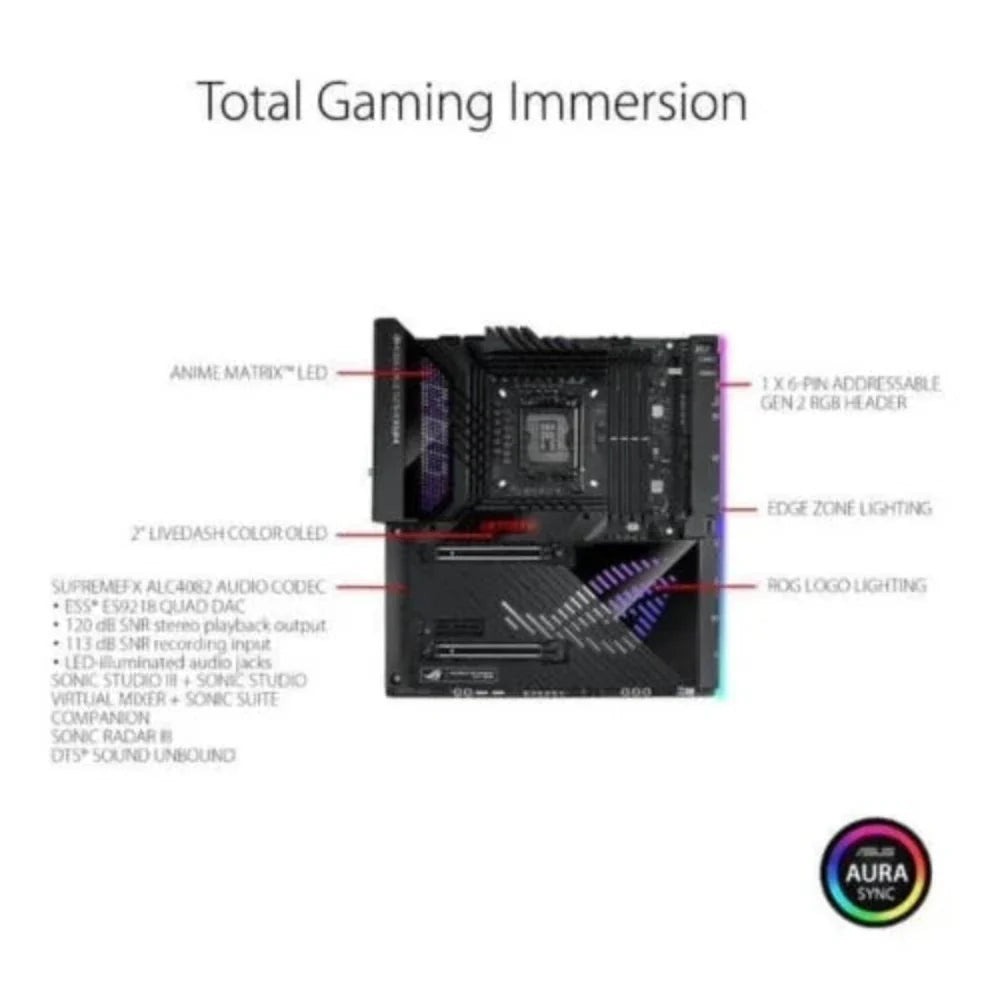

| Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - ESS® ES9218 QUAD DAC - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |

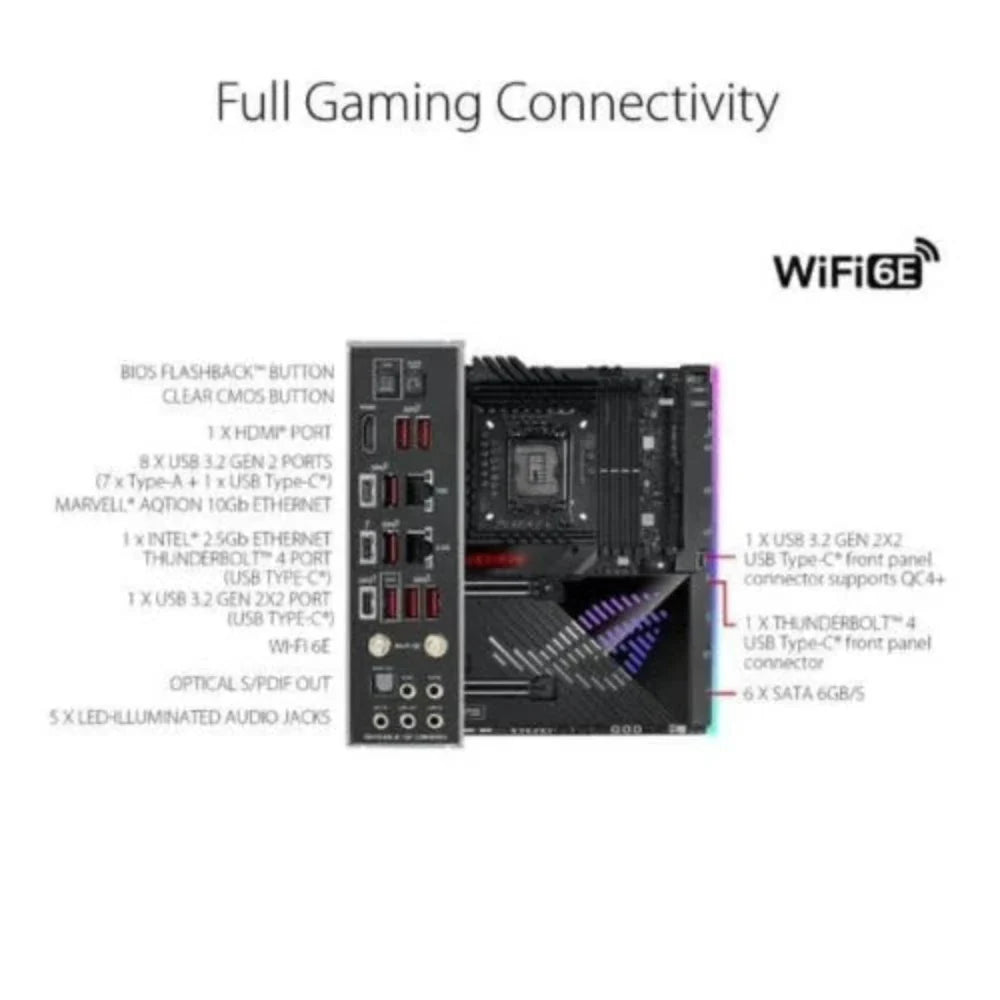

| Back Panel I/O Ports |
1 x Thunderbolt™ 4 USB Type-C® port 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 1 x Marvell® AQtion 10Gb Ethernet port 5 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal I/O Connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x WB_SENSOR header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x Thunderbolt™ 4 USB Type-C® port 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 1 x Addressable Gen 2 header 1 x Aura RGB header 2 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x Osc sence header 12 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD switch 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x V_Latch switch 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| Special Features |
Extreme OC Kit FlexKey button LN2 Mode ProbeIt ReTry button Safe boot button Start button Slow Mode Extreme Engine Digi+ 10K Black Metallic Capacitors MicroFine Alloy Choke ASUS Q-Design M.2 Q-Latch PCIe Slot Q-Release Q-Code Q-Connector Q-DIMM Q-LED (CPU Q-Slot ASUS Thermal Solution M.2 heatsink backplate M.2 heatsink Metal backplate VRM heatsink design ASUS EZ DIY BIOS FlashBack™ button Clear CMOS button CPU Socket lever protector ProCool II Pre-mounted I/O shield SafeSlot SafeDIMM Aura Sync ROG Aura Sync backplate Aura RGB header Addressable Gen 2 headers Dual BIOS 2" LiveDash Color OLED Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support Support: up to 60W charging* Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A Compatible with PD3.0 and PPS * To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W will be supported. |
| Software Features |
ROG Exclusive Software GameFirst VI ROG CPU-Z ROG True Voltician Sonic Studio III Sonic Studio Virtual Mixer Sonic Suite Companion Sonic Radar III DTS® Sound Unbound BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate AIDA64 Extreme (1 year full version) Aura Creator Aura Sync Fan Xpert 4 (with AI Cooling II) Power Saving AniMe Matrix™ Two-Way AI Noise Cancellation OLED Display AI Suite 3 Easy Optimization with AI Overclocking TPU DIGI+ Power Control Turbo app PC Cleaner MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode MemTest86 |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

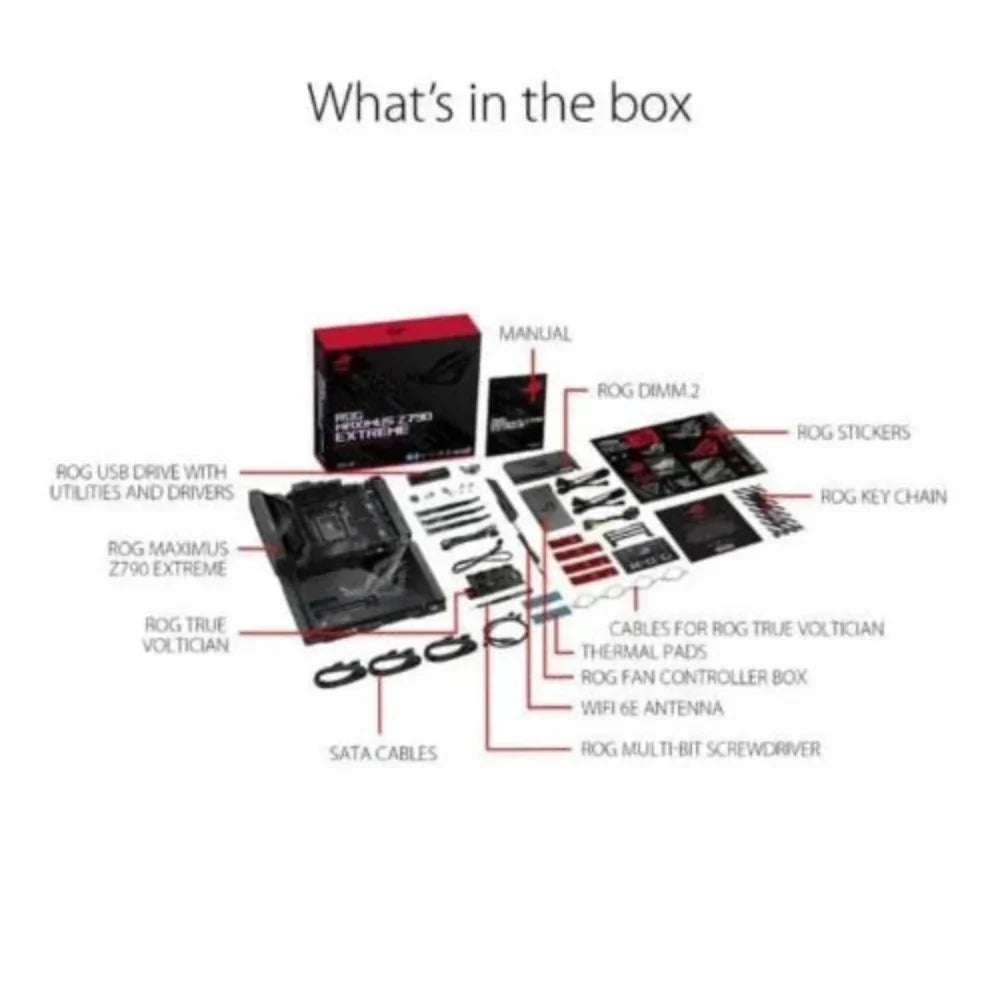

| Accessories |
Cables 1 x 1-to-3 ARGB splitter cable 1 x 1-to-2 ARGB splitter cable 2 x 1-to-4 fan splitter cable 3 x ROG weave SATA 6G cables 1 x 3-in-1 Thermistor cables pack ROG Fan Controller 1 x ROG Fan Controller 1 x Fan EXT PWR cable 1 x ARGB input cable 1 x USB input cable 1 x ROG Fan Controller velcro tape 1 x Fan Controller manual ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 ROG True Voltician 1 x ROG True Voltician 4 x cables for ROG True Voltician Additional Cooling Kit 1 x Thermal pad for M.2 1 x DDR5 Fan holder Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Q-connector 1 x ROG key chain 1 x ROG logo plate sticker 1 x ROG multi-bit screwdriver 1 x ROG stickers 1 x ROG VIP card 1 x Screw package for M.2 SSD Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor |
E-ATX Form Factor 12 inch x 10.9 inch (30.5 cm x 27.7 cm) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
