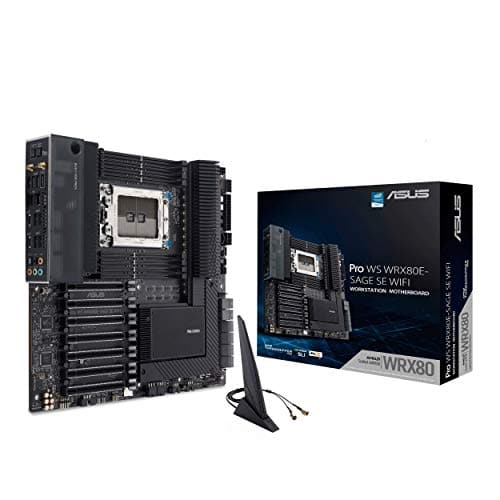

Feature of ASUS Pro WS WRX80E Sage SE Wifi DDR4

1. AMD sWRX8 Socket: Ready for AMD Ryzen Threadripper PRO Series Processors
2. Innovative Cooling and Robust Power and Comprehensive Cooling:16 power stages, ProCool II connectors, 6-pin power connectors, aluminum VRM and M.2 heatsink, semi-passive SOC and DRAM heatsink
3. Ultrafast Connectivity: USB 3.2 Gen 2x2 Type-C port, 10 USB 3.2 Gen 2 ports, triple M.2 PCIe 4.0, HYPER M.2 X16 Gen 4 card and Intel X550-AT2 dual 10Gb Ethernet and WiFi 6 onboard
4. Server-grade Remote Management - ASMB9-iKVM: BMC (Baseboard Management Controller) chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency
5. 24/7 Stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security

ASUS Pro WS WRX80E-Sage SE Wifi DDR4 is engineered to unleash the incredible power of the latest AMD® Ryzen® Threadripper™ Pro series processors and is a reliable foundation for professional creative workloads that benefit from multi-core CPUs, such as video editing and 3D rendering. Additionally, seven PCIe 4.0 slots with SafeSlot fortification deliver exceptional performance with the latest high-power graphics cards.

Low-profile professionalism

With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS WRX80E-SAGE SE WIFI presents a professional, low-profile look for content creators.

Multi-GPU support

Pro WS WRX80E-SAGE SE WIFI features seven PCIe® 4.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling and simulation, and rendering applications.

3 M.2 PCIe 4.0

Pro WS WRX80E-SAGE SE WIFI includes three M.2 and two U.2 slots wired to PCIe 4.0 x4 bandwidth. Creators working with massive video files can RAID together multiple NVMe devices for massive I/O bandwidth and seamless playback in their editing bays. These three slots rest under dedicated heatsinks to prevent SSD throttling under heavy loads.

More storage

With NVMe RAID support for Ryzen™ Threadripper™ PRO processors, unused CPU PCIe® 4.0 lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs to provide incredible throughput — up to 8x faster than individual PCIe® 3.0 x4 SSDs. RAID can also be configured with PCIe® 3.0 SSDs.

ECC memory support

AMD Ryzen™ Threadripper™ PRO processors offer unrivaled memory bandwidth and supports 8 memory channels, up to 2048 GB. It supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure your creativity consistency and stability.

Specifications of ASUS Pro WS WRX80E Sage SE Wifi DDR4
