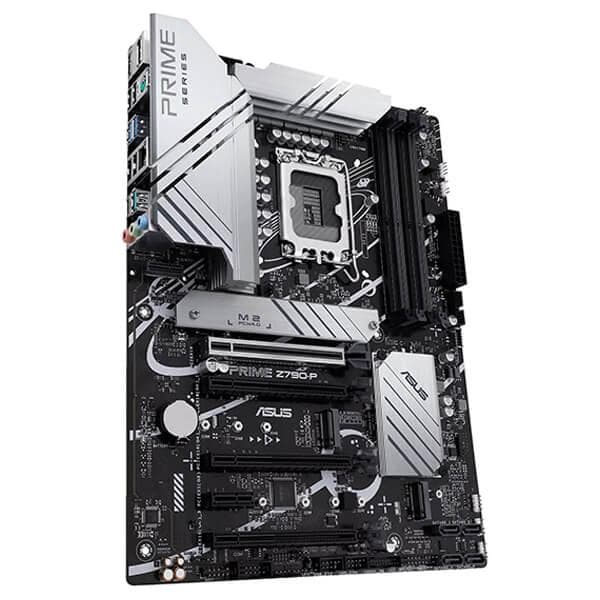

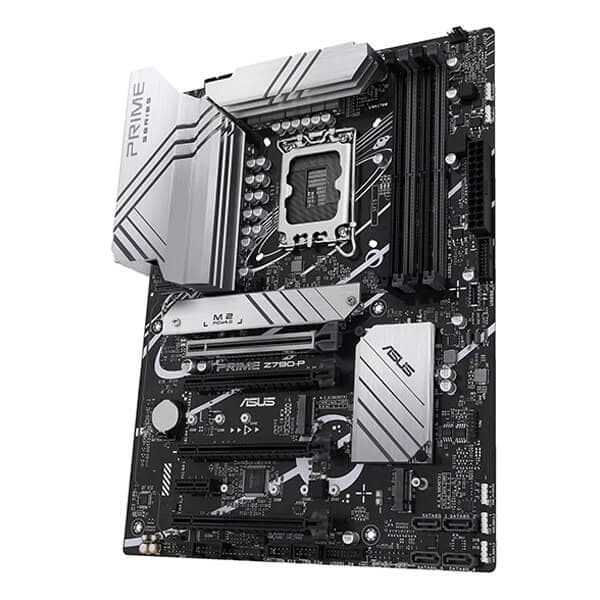

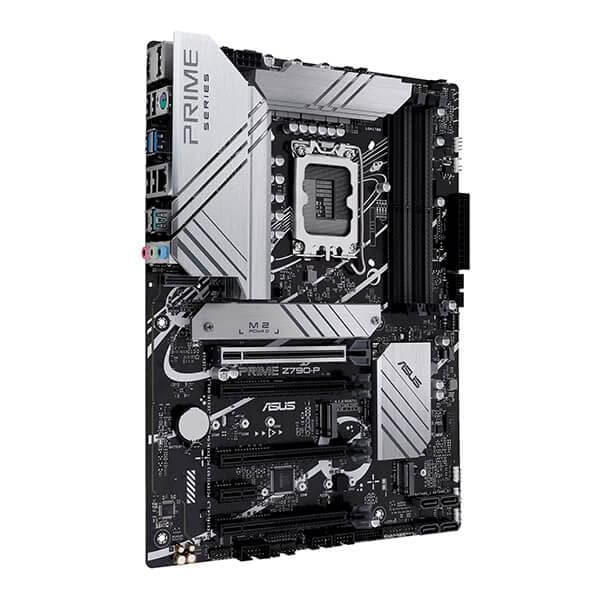

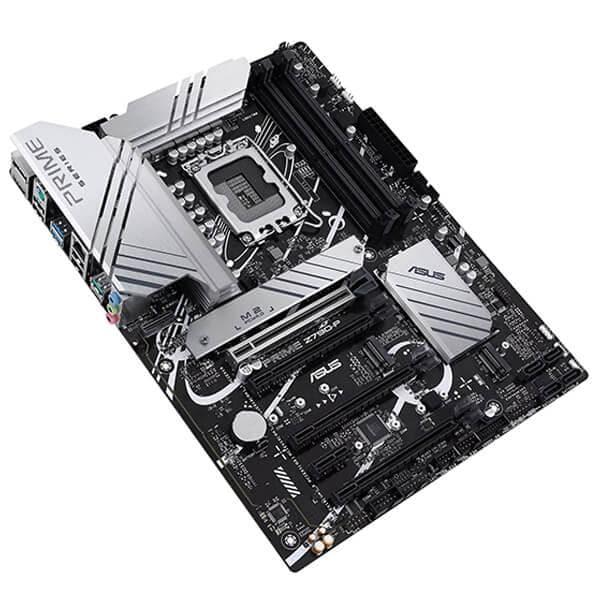

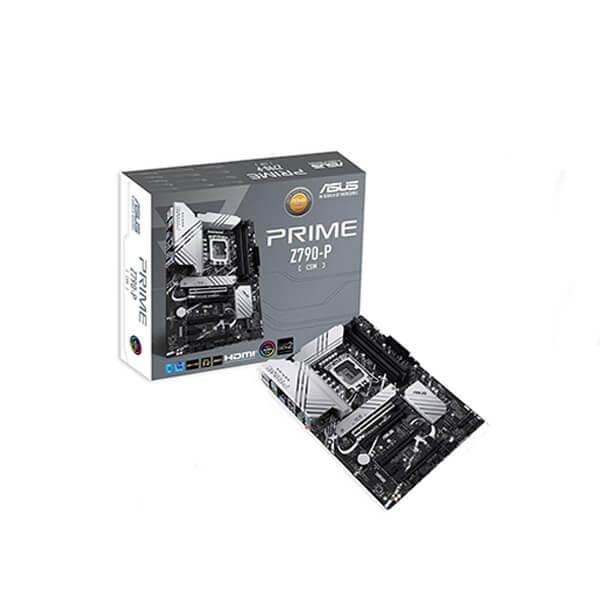

Features of ASUS Prime Z790-P CSM DDR5 Intel Motherboard

1. Intel® LGA 1700 socket: Ready for 12th and 13th Gen Intel® processors
2. Enhanced power solution: 14+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
3. Next-gen connectivity: DDR5 memory, PCIe® 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®) header support, 3 PCIe® 4.0 M.2
4. Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
5. Comprehensive cooling: Large VRM heatsinks, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II
6. ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection

• 14 + 1 power stages combine high-side and low-side MOSFETS and drivers into packages rated for 50 amperes each, delivering power, efficiency, stability and performance to latest Intel processors.
• PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and compatibility with previous versions of PCI Express.

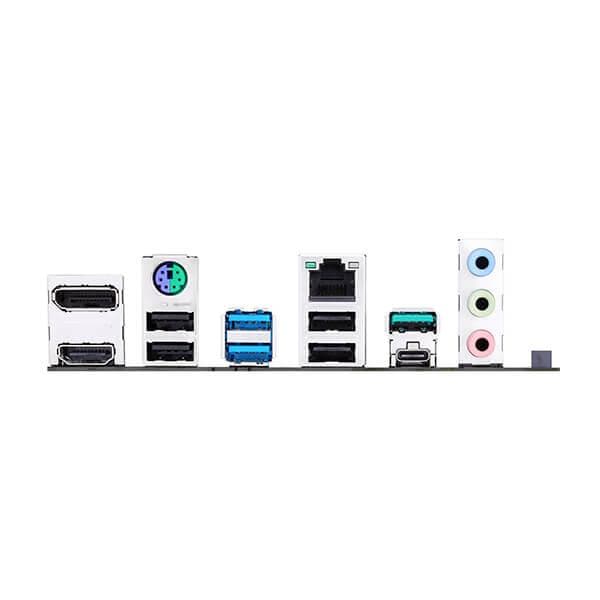

• A batch of USB ports support high-end rigs loaded with peripherals, including the rear USB Type-C connectors with ultrafast USB 3.2 Gen 2×2 for transmission speeds of up to 20 Gbps
• ASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.
• The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
• AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
• A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
• Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
• PRIME Z790-P-CSM motherboard features USB4 support via a Thunderbolt (USB4) header. With an ASUS add-on card*, PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.
• PRIME Z790-P-CSM offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veteran\

AI Cooling ll

AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

COOLING

PRIME Z790-P-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 Heatsink

The flexible M.2 heatsink with removable captive screws can take care of the M.2_1 or M.2_3 slot, warding off throttling that can occur with M.2 storage during sustained transfers.

VRM Heatsinks and Thermal Pads

The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design

PRIME Z790-P-CSM features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Specifications of ASUS Prime Z790-P CSM DDR5 Intel Motherboard
