Description

Feature of ASUS ROG Maximus XII Formula DDR4 Intel Motherboard

LGA 1200 socket for 10th-gen Intel® Core™ desktop processors
AI Feature: AI Overclocking, AI Cooling and AI Networking (GameFirst VI)
Robust power delivery: Optimized power solution with 16 power stages, ProCool II power connectors, MicroFine Alloy chokes and 10K capacitors
Cooling & Performance: OptiMem III, CrossChill EK III, 16 teamed power stages with extended heatsink, high conductive thermal pad, ROG water cooling zone, M.2 heatsink and backplate
Connectivity: Intel® Wi-Fi 6, 10 Gb Ethernet and Intel® 2.5 Gb Ethernet, triple M.2 slots
Customization: 2″ LiveDash OLED, 2X addressable header + 2X 4-pin RGB header

ASUS ROG Maximus XII Formula DDR4 series motherboards are designed to explore the upper echelons of gaming and overclocking. The Formula is plumbed for custom liquid cooling and includes other enhancements to punctuate premium systems. The CrossChill EK III VRM block, co-developed with EK Water Blocks, help cope with higher VRM loads associated with Intel Comet Lake CPUs. Aesthetically, Maximus XII Formula has a stealthy black finish with intricate patterns cut into its reflective armor. The latest-generation Formula is all set to make your showcase rig shine.

AI Overclocking

Tuning is now faster and smarter than ever before. AI Overclocking profiles the CPU and cooling to predict the optimal configuration for each system.

AI Cooling

AI Cooling automatically manages and controls motherboard-connected fans, ensuring the most efficient settings depending on the current system load and temperature.

AI Networking

GameFirst VI optimizes and organizes network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay.

COOLING

The focus on maximizing performance would be futile without similar dedication to improving the cooling that allows systems to sustain faster speeds. The CrossChill EK III VRM block enables Maximus XII Formula to cope with the high VRM loads of ten core CPUs. The hybrid cooling system sits atop of a heatpipe that’s directly linked to the extended VRM heatsink, giving it cooling capabilities that surpass the requirements of this current generation.

OPTIMIZATION

Maximus XII Formula is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want.

CONNECTIVITY

Maximus XII Formula is well equipped to deliver supersmooth wireless connectivity and compatibility with multiple input sources and PCIe extensions, all of which are a must-have for gaming setups.

PERSONALIZED FOR YOU

In addition to extraordinary performance, Maximus XII Formula provides extensive styling and customization options to let you build a system that truly stands apart.

Specifications of ASUS ROG Maximus XII Formula DDR4 Intel Motherboard

CPU	Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Supports Intel® 14nm CPU * Refer to www.asus.com for CPU support list
Chipset	Intel® Z490
MEMORY	4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C) /4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.) /3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.) 3333(O.C.)/3200(O.C.)/ 3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * OptiMem III * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Supports Intel® Extreme Memory Profile (XMP) Dual Channel Memory Architecture
Multi-GPU Support	Supports NVIDIA 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots	1 x PCIe 3.0 x1 3 1 x PCIe 3.0 x16 (x4 mode) 2 Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) *1 Intel® Z490 Chipset
Storage	1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)4 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)5 1 x M.2_3 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*6 Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel® Z490 Chipset : Intel® Rapid Storage Technology supports Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready 6 x SATA 6Gb/s port(s)
LAN	Intel® I225-V 2.5Gb Ethernet Marvell® AQtion AQC107 10Gb Ethernet ASUS LANGuard
Wireless Data Network	Intel® Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports CNVI interface Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports dual band frequency 2.4/5 GHz
Bluetooth	Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio	- Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220 - Premium Japanese audio capacitors - Audio Cover - SupremeFX Shielding™ Technology - Impedance sense for front and rear headphone outputs - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback - Gold-plated jacks - Optical S/PDIF out port(s) at back panel Audio Feature :
USB Ports	4 x USB 3.2 Gen 2 port(s)(3 x Type-A + USB Type-CTM) Front USB Port ( Total 9 ) Rear USB Port ( Total 10 ) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) 1 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
Operating System Support	Windows® 10 64-bit
Software Features	ROG Exclusive Software - Mem Tweakit - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - BullGuard Internet Security (1-year full version)ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - 5-way Optimization with AI Overclocking TPU EPU Digi+ Power Control Fan Xpert 4 Turbo app - EZ update AI Charger WinRARUEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey
ASUS Special Features	ROG Extreme OC kit - FlexKey button - ReTry button - Start buttonASUS Q-Design - ASUS Q-Code - ASUS Q-Connector - ASUS Q-DIMM - ASUS Q-LED (CPU , DRAM , VGA , Boot Device ) - ASUS Q-SlotASUS Thermal Solution - Aluminum M.2 heatsink - CrossChill EK III - Steel backplateASUS EZ DIY - BIOS Flashback™ button - Clear CMOS button - Procool II - Pre- mounted I/O shield - SafeSlot AURA Sync - ROG Aura sync Armor - Standard RGB header(s) - Addressable Gen 2 RGB header(s) LiveDash OLED 2"

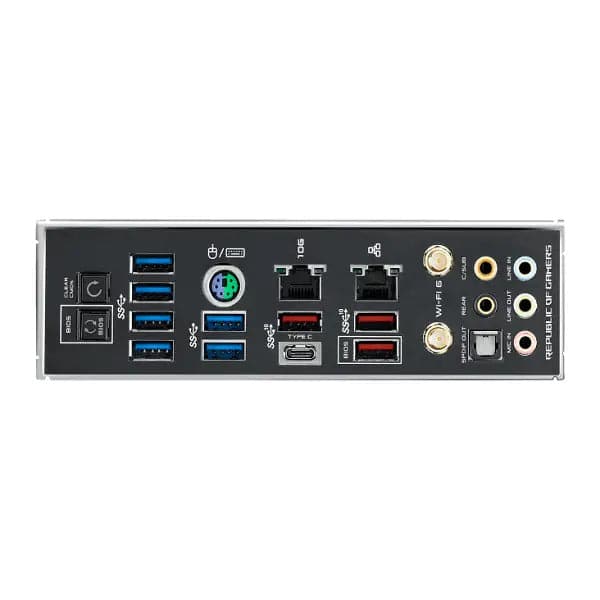

Back I/O Ports	1 x Intel® I225-V 2.5Gb Ethernet 1 x USB BIOS FlashBack™ Button(s) 4 x USB 3.2 Gen 2 6 x USB 3.2 Gen 1 1 x Aquantia AQC-107 10G LAN port 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks 1 x PS/2 keyboard/mouse combo port(s)
Internal I/O Ports	3 x W_FLOW header 3 x M.2 Socket 3 1 x FlexKey button 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x USB 3.2 Gen 2 front panel connector 2 x W_OUT header 1 x Thunderbolt header(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x W_IN header 1 x AAFP connector 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Thermal sensor connector(s) 1 x ReTry button 1 x System panel connector 1 x Speaker connector 1 x Start button 2 x Aura RGB Strip Headers
Accessories	Addressable LED extension cable 1 ROG key chain 1 x Extension Cable for RGB strips (40 cm) 2 x M.2 Screw Package 1 x ROG logo plate sticker 4 x SATA 6Gb/s cable(s) 1 x ROG big sticker 1 x Q-Connector 1 x Wi-Fi Antenna(s) 2 x ROG weave SATA 6G cable 1 x ROG Thank you card User´s manual 1 x Supporting DVD
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Form Factor	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) ATX Form Factor
Warranty	3 Years
Note*	Price, feature and specifications are subject to change without notice. 1 Support PCIe bifurcation for RAID on CPU function. 2 The PCIEX16_3 shares bandwidth wih M.2_3. When M.2_3 runs x4 mode, PCIEX16_3 will be disabled. When M.2_3 and PCIEX16_3 are both occupied, M.2_3 runs x2 mode, PCIEX16_3 runs X1 mode. 3 The PCIEX1 shares bandwidth with M.2_1. When M.2_1 runs x4 mode, PCIEX1 will be disabled. 4 M.2_1 shares bandwidth with PCIEX1. When PCIEX1 is occuppied, M.2_1 runs x2 or SATA mode (when M.2_1 runs SATA mode, SATA6G_2 will be disabled). 5 M.2_2 shares bandwidth with SATA6G_56. When M.2_2 runs x4 mode, SATA_56 will be disabled. M.2_2 runs x2 mode by default. 6 M.2_3 shares bandwidth with PCIEX16_3. When PCIEX16_3 runs x4 mode, M.2_3 will be disabled. When M.2_3 and PCIEX16_3 are both occoppied, M.2_3 runs x2 mode, PCIEX16_3 runs X1 mode.
