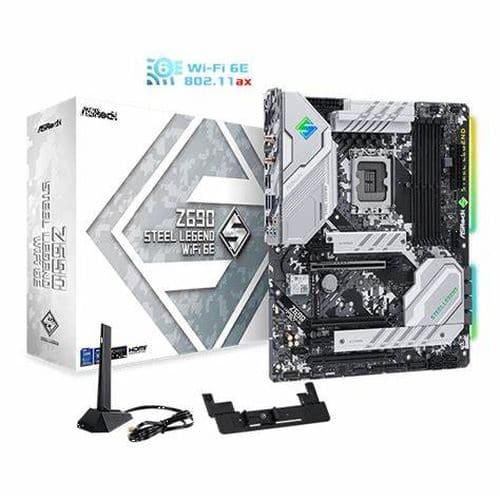

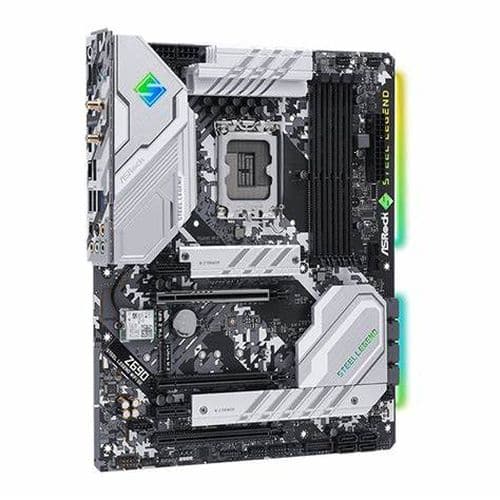

ASROCK Z690 Steel Legend Wifi 6E DDR4 Intel Motherboard

Rs. 31,899.00 Rs. 24,095.00

Availability : Out Of Stock

Brand : ASROCK

SKU : asrock-z690-steel-legend-wifi-6e

Tags : ASROCK, CATP_ASROCK, CATQ_Motherboard, MOB12_1, MOB13_Gen5, MOB14_Gen4, MOB15_White, MOB16_1, MOB17_8, MOB18_5, MOB19_1, MOB1_Z690, MOB20_0, MOB21_0, MOB22_1, MOB23_75, MOB24_Intel Motherboard, MOB2_ATX, MOB3_LGA1700, MOB4_128, MOB5_5000, MOB6_4, MOB7_DDR4, MOB8_3

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of ASRock Z690 Steel Legend WiFi 6E DDR4

Supports 12th Gen Intel^® Core™ Processors (LGA1700)
13 Phase Dr.MOS Power Design
Supports DDR4 5000MHz (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
8 SATA3
2 Hyper M.2 (PCIe Gen4 x4)
1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
1 USB 3.2 Gen2x2 Front Type-C
2 USB 3.2 Gen2 (Rear Type A+C)
8 USB 3.2 Gen1 (4 Rear, 4 Front)
Dragon 2.5G LAN
802.11ax (WiFi 6E) + Bluetooth
ASRock Graphics Card Holder

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

13 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

6 Layer PCB

ASROCK Z690 Steel Legend Wifi 6E 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

ASRock Graphics Card Holder

Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

Specifications of ASRock Z690 Steel Legend WiFi 6E DDR4

Form Factor	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
	2oz Copper PCB
Unique Feature	ASRock USB 3.2 Gen2
	ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb / s)
	ASRock USB 3.2 Gen2 Type-A Port (10 Gb / s)
	ASRock USB 3.2 Gen2 Type-C Port (10 Gb / s)
	ASRock Super Alloy
	XXL Aluminum Alloy Heatsink
	Premium 60A Power Choke
	50A Dr.MOS
	Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
	I / O Armor
	Matte Black PCB
	High Density Glass Fabric PCB
	2oz Copper PCB
	2.5G LAN 802.11ax Wi-Fi 6E
	ASRock Auto Driver Installer
	ASRock Steel Slot
	ASRock Full Coverage M.2 Heatsink
	ASRock Hyper M.2 (PCIe Gen4x4)
	ASRock Ultra USB Power
	ASRock POST Status Checker (PSC)
	ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
	ASRock Live Update & APP Shop
CPU	Supports 12th Gen Intel Core™ Processors (LGA1700)
	Digi Power design
	13 Power Phase design
	Supports Intel Hybrid Technology
	Supports Intel Turbo Boost Max 3.0 Technology
Chipset	Intel Z690
Memory	Dual Channel DDR4 Memory Technology
	4 x DDR4 DIMM Slots
	Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)*
	Supports ECC UDIMM memory modules (operate in non-ECC mode)
	Max. capacity of system memory: 128GB
	Supports Intel Extreme Memory Profile (XMP) 2.0
	15μ Gold Contact in DIMM Slots
	*Supports DDR4 3200 natively.
Slots	3 x PCIe x16 Slots (PCIE2 / PCIE3 / PCIE5: single at Gen5x16 (PCIE2); dual at Gen5x16 (PCIE2) / Gen4x4 (PCIE3); triple at Gen5x16 (PCIE2) / Gen4x4 (PCIE3) / Gen3x4 (PCIE5))*
	2 x PCIe Gen3x1 Slots
	Supports AMD Quad CrossFireX™ and CrossFireX™
	1 x M.2 Socket (Key E), supports type 2230 WiFi / BT PCIe WiFi module and Intel CNVi (Integrated WiFi / BT)
	15μ Gold Contact in VGA PCIe Slot (PCIE2)
	*Supports NVMe SSD as boot disks
Graphics	Intel Xe Graphics Architecture (Gen 12)
	Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
	Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
	Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz
	Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
	*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
	Supports Surge Protection
	Gold Audio Jacks
	15μ Gold Audio Connector
	Nahimic Audio
Lan	2.5 Gigabit LAN 10 / 100 / 1000 / 2500 Mb / s
	Dragon RTL8125BG
	Supports Dragon 2.5G LAN Software
	Smart Auto Adjust Bandwidth Control
	Visual User Friendly UI
	Visual Network Usage Statistics
	Optimized Default Setting for Game, Browser, and Streaming Modes
	User Customized Priority Control
	Supports Wake-On-LAN
	Supports Lightning / ESD Protection
	Supports Energy Efficient Ethernet 802.3az
	Supports PXE
WiFi	n/a

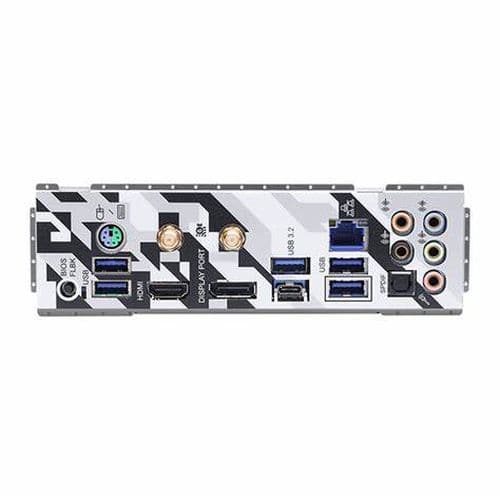

Rear Panel I/O	2 x Antenna Ports
	1 x PS / 2 Mouse / Keyboard Port
	1 x HDMI Port
	1 x DisplayPort 1.4
	1 x Optical SPDIF Out Port
	1 x USB 3.2 Gen2 Type-A Port (10 Gb / s) (ReDriver) (Supports ESD Protection)
	1 x USB 3.2 Gen2 Type-C Port (10 Gb / s) (ReDriver) (Supports ESD Protection)
	4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
	1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
	1 x BIOS Flashback Button
	HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
	*Ultra USB Power is supported on USB3_1_2 ports.
	ACPI wake-up function is not supported on USB3_1_2 ports.
Storage	8 x SATA3 6.0 Gb / s Connectors*
	1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260 / 2280 PCIe Gen4x4 (64 Gb / s) mode**
	1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230 / 2242 / 2260 / 2280 SATA3 6.0 Gb / s & PCIe Gen3x4 (32 Gb / s) modes**
	1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242 / 2260 / 2280 / 22110 PCIe Gen4x4 (64 Gb / s) mode**
	*If M2_2 is occupied by a SATA-type M.2 device, SATA3_7 will be disabled.
	**Supports Intel Optane™ Technology
	Supports Intel Volume Management Device (VMD)
	Supports NVMe SSD as boot disks
	Supports ASRock U.2 Kit
Connector	1 x SPI TPM Header
	1 x Power LED and Speaker Header
	1 x RGB LED Header*
	3 x Addressable LED Headers**
	1 x CPU Fan Connector (4-pin)***
	1 x CPU / Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
	5 x Chassis / Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
	1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
	2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
	1 x Front Panel Audio Connector (15μ Gold Audio Connector)
	1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
	2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
	1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb / s) (Supports ESD Protection)
	*Supports in total up to 12V / 3A, 36W LED Strip
	**Support in total up to 5V / 3A, 15W LED Strip
	***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
	****The CPU / Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
	*****The Chassis / Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
	CPU_FAN2 / WP and CHA_FAN1~5 / WP can auto detect if 3-pin or 4-pin fan is in use.
BIOS	256Mb AMI UEFI Legal BIOS with multilingual GUI support
	ACPI 6.0 Compliant wake up events
	SMBIOS 2.7 Support
	CPU Core / Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Support CD	Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Software and UEFI	Software
	ASRock Motherboard Utility (A-Tuning)
	ASRock Dragon 2.5G LAN Software
	ASRock Polychrome SYNC*
	UEFI
	ASRock EZ Mode
	ASRock Full HD UEFI
	ASRock My Favorites in UEFI
	ASRock Auto Driver Installer
	ASRock Instant Flash
	ASRock Internet Flash
	ASRock Easy RAID Installer
	*These utilities can be downloaded from ASRock Live Update & APP Shop.
Hardware Monitor	Fan Tachometer: CPU, CPU / Water Pump, Chassis / Water Pump Fans
	Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU / Water Pump, Chassis / Water Pump Fans
	Fan Multi-Speed Control: CPU, CPU / Water Pump, Chassis / Water Pump Fans
	Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIN AUX, +1.05V PROC, VCCSA, +1.8V PROC, +0.82V PCH, +12V, +5V, +3.3V
OS	Microsoft Windows 10 64-bit / 11 64-bit
Form Factor	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
	2oz Copper PCB
Certifications	FCC, CE
	ErP / EuP ready (ErP / EuP ready power supply is required)
	CEC Tier II ready
Accessories	Quick Installation Guide, Support CD
	2 x SATA Data Cables
	1 x ASRock WiFi 2.4 / 5 / 6 GHz Antenna
	3 x Screws for M.2 Sockets
	2 x Standoffs for M.2 Sockets
	1 x Graphics Card Holder
