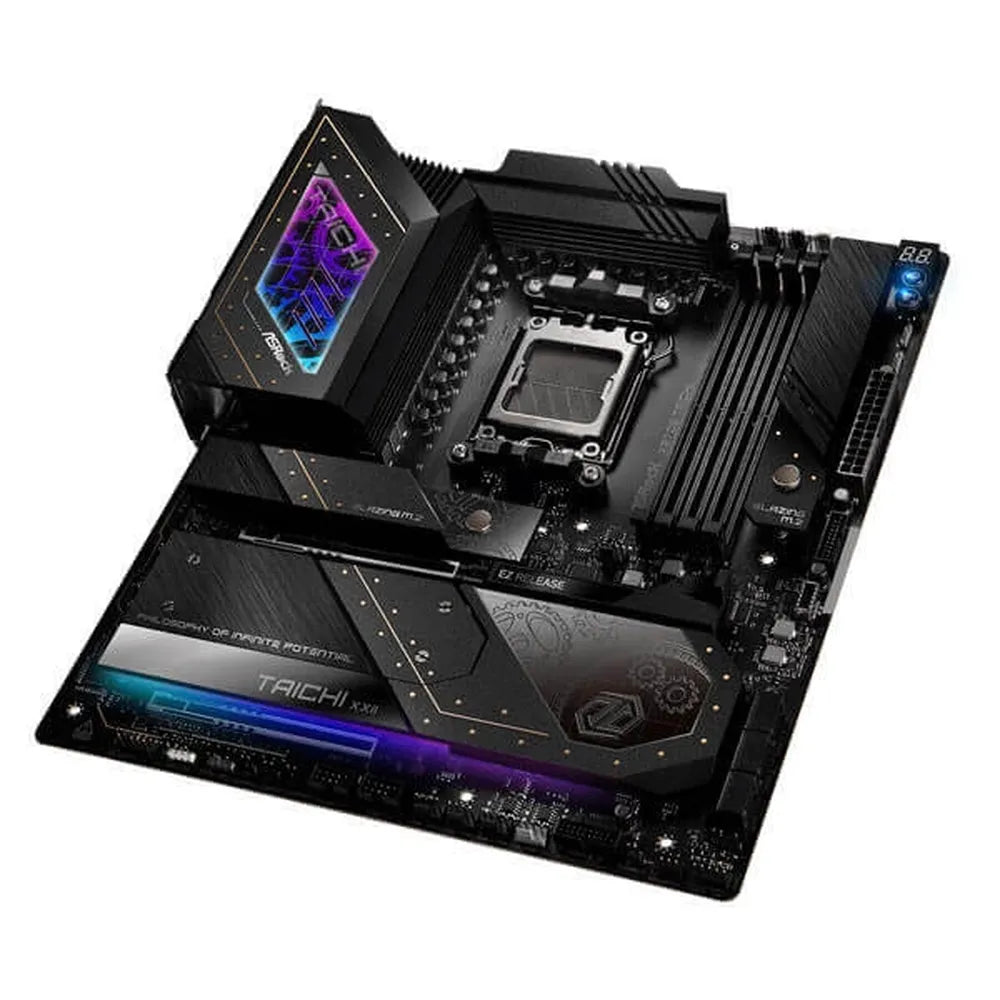

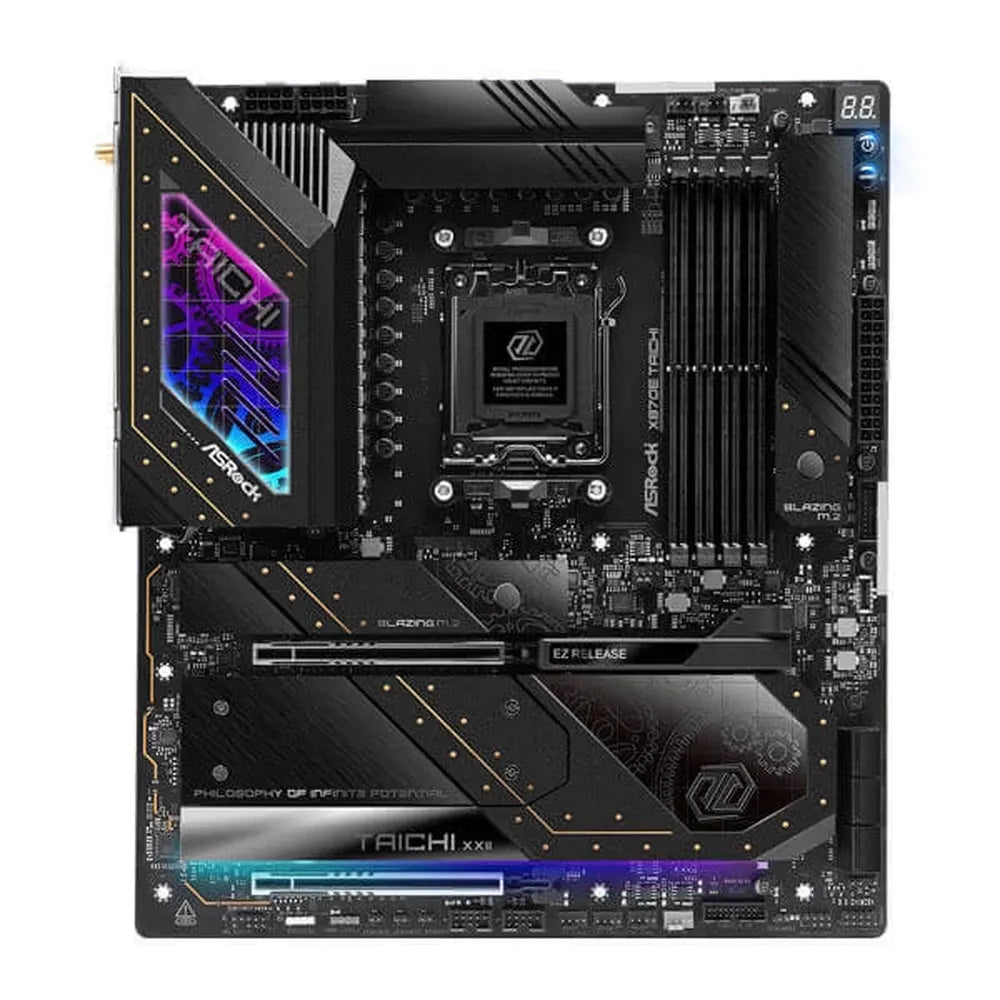

ASROCK X870E Taichi Wifi DDR5 AMD Motherboard

Features of ASROCK X870E Taichi Wifi DDR5 AMD Motherboard

Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation.

CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking.

The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel^® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

ASRock's 5Gb/s LAN Connector features an exclusive, patent-pending design, boasting superior electromagnetic interference resistance, ensuring high-speed stable performance and providing users with a better networking experience.

Model Number	X870E-TAICHI
Unique Feature	Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - Server-Grade Low-Loss PCB - 24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity - 5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer
CPU	- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* - Supports ASRock Hyper BCLK Engine
Chipset	- AMD X870E
Memory	- Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
Audio	- 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - WIMA Audio Capacitors (For Rear Outputs) - ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) - Individual PCB Layers for R/L Audio Channel - Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) - Nahimic Audio
LAN	- 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s - Realtek RTL8126
Wireless LAN	- 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO
Slots	CPU: - 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™
Storage	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode - 6 x SATA3 6.0 Gb/s Connectors
RAID	- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB	CPU: - 2 x USB4 Type-C (Rear) - 2 x USB 3.2 Gen2 Type-A (Rear) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 3 x USB 3.2 Gen2 Type-A (Rear) - 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front) - 6 x USB 2.0 (2 Rear, 4 Front)
Connector	- 3 x Thermistor Cable Headers - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED
Rear Panel I/O	- 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports (40 Gb/s) - 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) - 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.) - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack)
Software and UEFI	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Accessories	- 4 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 1 x ARGB Splitter Cable - 3 x Thermistor Cables
Form Factor	- EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm - 8 Layer PCB - 2oz Copper PCB
OS	- Microsoft Windows® 10 64-bit / 11 64-bit
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
