Motherboard

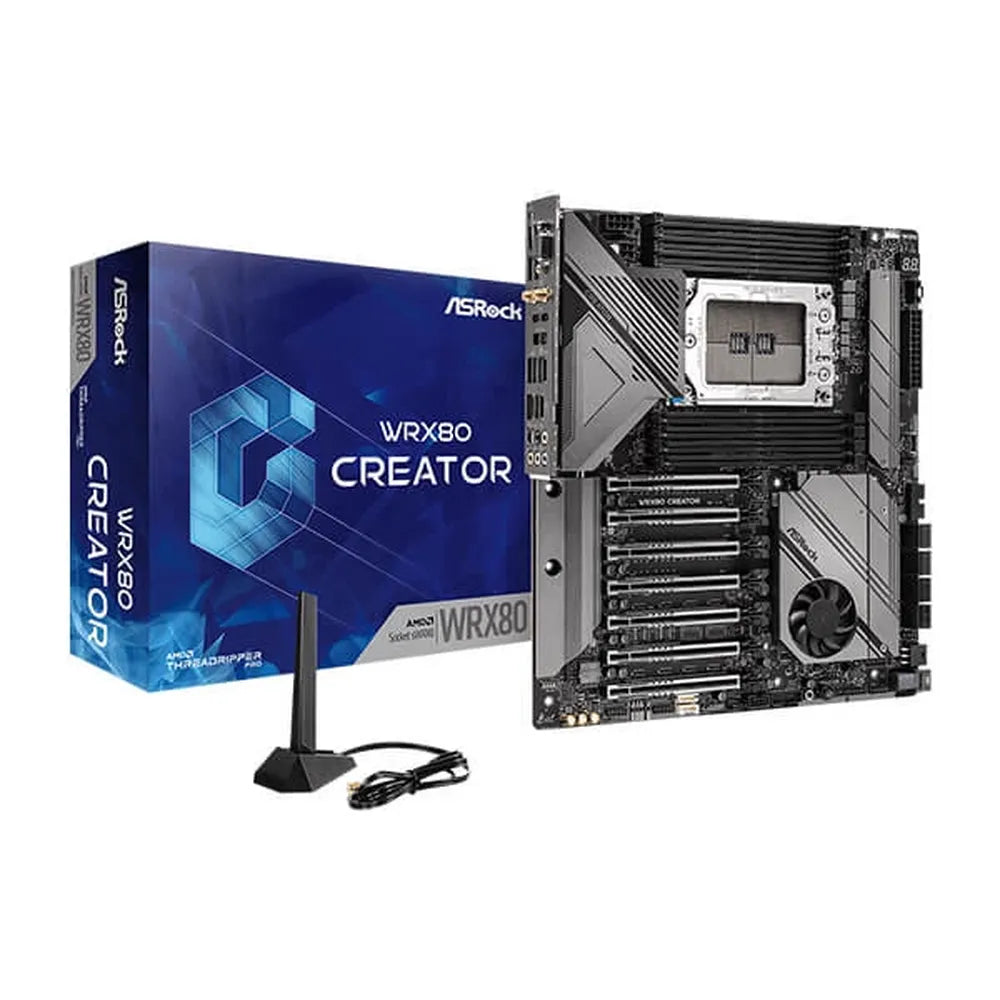

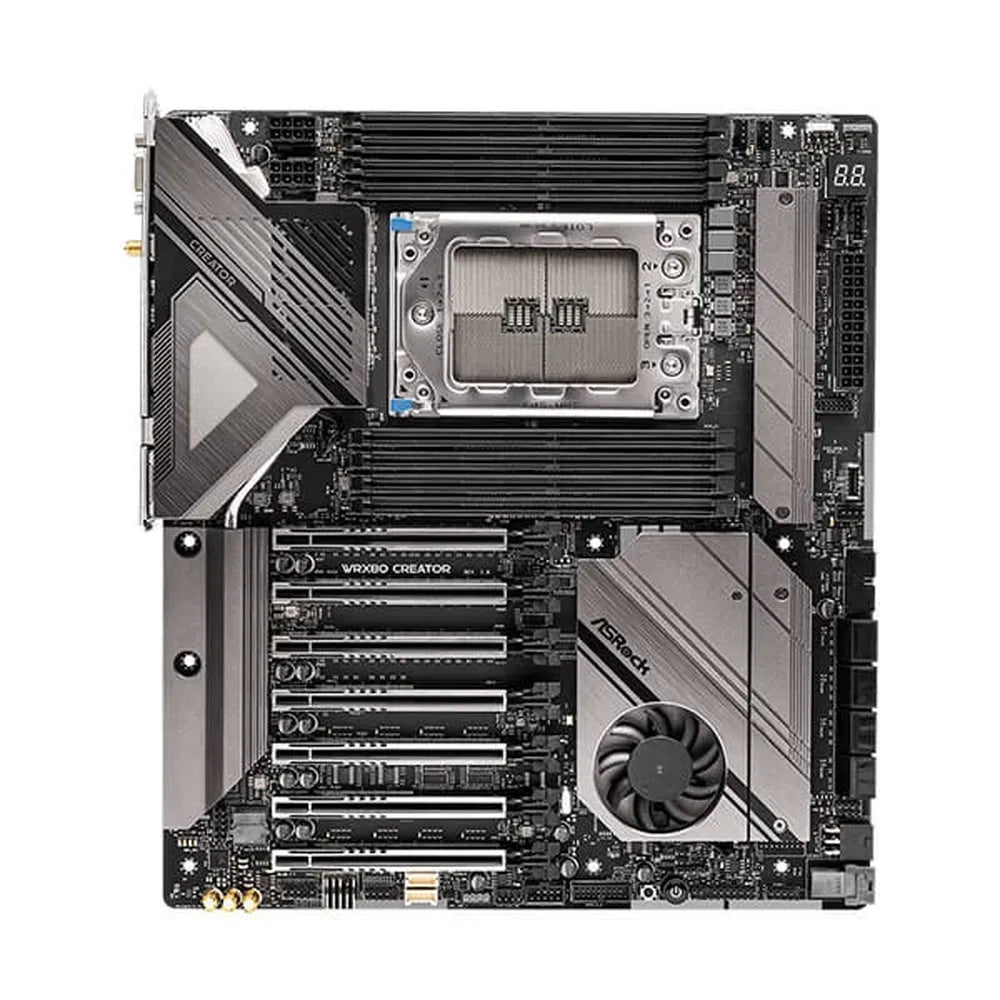

ASROCK WRX80 Creator R2.0 WIFI DDR4 AMD Motherboard
Rs. 88,999.00
Rs. 79,645.00
Out Of Stock
Brand : ASROCK
asrock-wrx80-ddr4
Safe Payment
Pay with the world’s most payment methods.
Confidence
Protection covers your purchase
Worldwide Delivery
Ship to over 200 countries & regions.
Hotline
+91-99250 02827
Features of ASROCK WRX80 Creator R2.0 WIFI DDR4 AMD Motherboard
ASRock WRX80 Creator R2.0 is a workstation motherboard supports 5 full speed PCIe gen4 x16 slots; deliver all the performance of PCIe 4.0 to users GPU. This workstation motherboard is good for gaming as it has Wi-Fi 6E 802.11ax for fast performance.
- Supports AMD Ryzen™ Threadripper™ PRO 3000WX/5000WX Series Processors
- 8 Power Phase Design, 105A SPS
- 14 Layer Server-Grade Low-Loss PCB
- Supports DDR4 4533+(OC)
- 7 PCIe 4.0 x16
- 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 U.2 (PCIe Gen3 x4)
- 2 Thunderbolt™ 4 Type-C, 5 USB 3.2 Gen2 (1 Front Type-C, 4 Rear), 6 USB 3.2 Gen1 (4 Front, 2 Rear)
- 7.1 CH HD Audio (Realtek ALC4050H+ALC1220), Nahimic Audio
- Dual Marvell (Aquantia) 10Gbe LAN, 1 Dedicated IPMI LAN
- Intel® 802.11ax (WiFi 6E) + Bluetooth 5.3
Specification of ASROCK WRX80 Creator R2.0 WIFI DDR4 AMD Motherboard
| Model | WRX80 Creator R2.0 |
| Unique Feature | ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium Power Choke - 105A Dr.MOS - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - Matte Black PCB - High Density Glass Fabric PCB - 14 Layer PCB - 2oz Copper PCB Server-Grade Low-Loss PCB Dual Marvell (Aquantia) 10GbE LAN 802.11ax Wi-Fi 6E ASRock Auto Driver Installer ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU | Supports AMD Socket sWRX8 for AMD Ryzen™ Threadripper™ PRO 5000WX and 3000WX Series Processors Intersil Digital PWM 8 Power Phase design Supports ASRock Hyper BCLK Engine III |
| Chipset | AMD WRX80 |
| Memory | Eight Channel DDR4 Memory Technology 8 x DDR4 DIMM Slots Supports DDR4 ECC & non-ECC, buffered and un-buffered memory (U-DIMM) up to 4400+(OC) Supports DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, buffered and un-buffered memory (R-DIMM and 3DS R-DIMM) Max. capacity of system memory: 2048 GB 15μ Gold Contact in DIMM Slots |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment |
| Graphics | Aspeed AST2500 BMC Controller Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |
| Audio | 7.1 CH HD Audio (Realtek ALC4050H+ALC1220) Premium Blu-ray Audio support Supports Surge Protection NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) Pure Power-In Direct Drive Technology PCB Isolate Shielding Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Gold Audio Jacks 15μ Gold Audio Connector Nahimic Audio |
| LAN | 2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell (Aquantia) AQC113CS) Support Wake-On-LAN Supports PXE 1 x Dedicated IPMI (ASPEED AST2500) Supports iKVM and vMedia |
| Wireless LAN | 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ax Supports Dual-Band 2x2 160MHz with extended 6GHz band support* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth + High speed class II Supports MU-MIMO |
| Slots | CPU: 7 x PCIe 4.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE5/PCIE7 at x16; PCIE4/PCIE6 at x8) Chipset: 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Supports AMD 4-Way CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ 15μ Gold Contact in VGA PCIe Slots (PCIE1, PCIE2,PCIE3, PCIE5 and PCIE7) |
| Storage | CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 8 x SATA3 6.0 Gb/s Connectors 1 x U.2 Connector |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| Connector | 1 x SPI TPM Header - 1 x COM Port Header - 1 x Intelligent Platform Management Bus Header - 1 x PSU SMBus Header - 1 x BMC SMBus Header - 1 x Auxiliary Panel Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Right Angle Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) - 1 x Non Maskable Interrupt Button Header - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button |

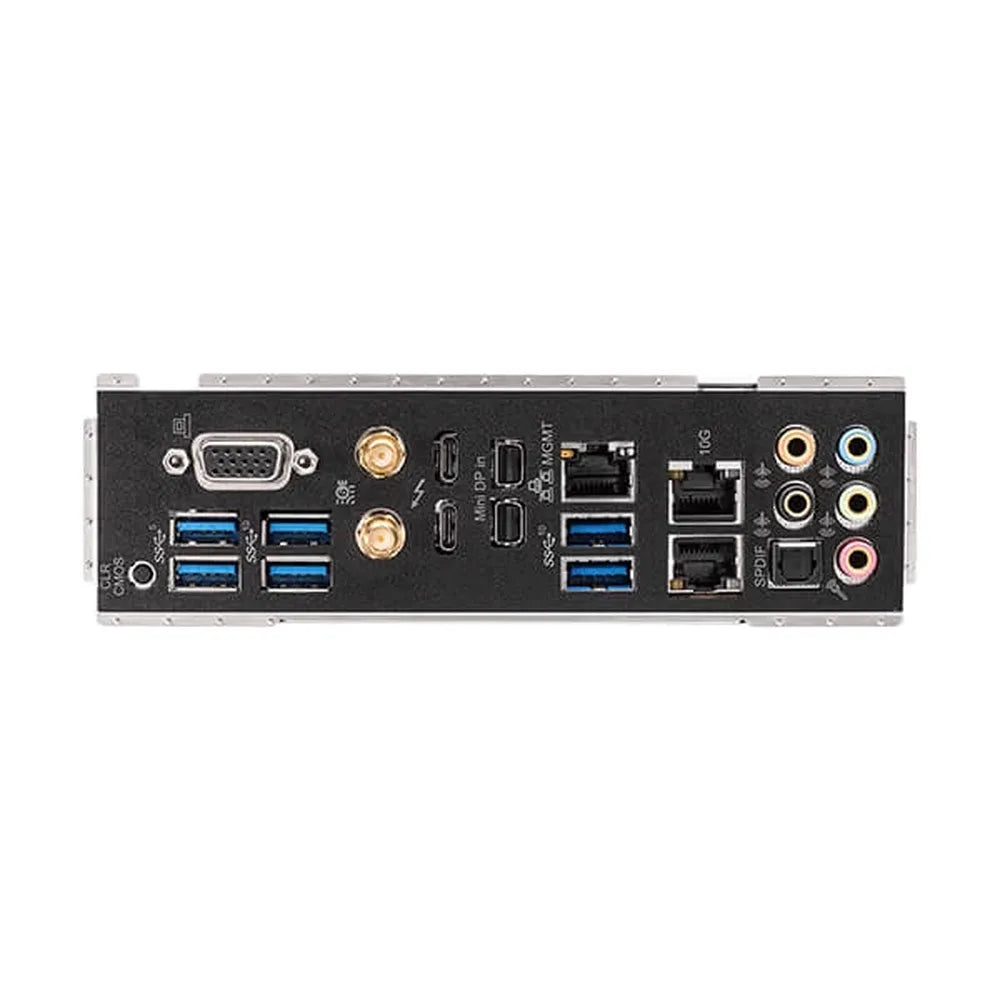

| Rear Panel I/O | - 2 x Antenna Ports - 1 x D-Sub Port - 1 x Optical SPDIF Out Port - 2 x USB 4.0 Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol) (Supports ESD Protection) - 2 x Mini DisplayPort Input Ports(For Thunderbolt) - 4 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x RJ45 Dedicated IPMI LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| Software and UEFI | Software ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC UEFI ASRock Full HD UEFI ASRock Instant Flash |
| Accessories | Quick Installation Guide 4 x SATA Data Cables 1 x ASRock WiFi 2.4/5/6 GHz Antenna 2 x Screws for M.2 Sockets 2 x Standoffs for M.2 Sockets |
| Hardware Monitor | Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, PREM VDDCR_SOC, +1.8V |
| Form Factor | EATX Form Factor: 12.0-in x 10.7-in, 30.5 cm x 27.2 cm 14 Layer PCB 2oz Copper PCB |
| OS | Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) CEC Tier II ready |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
