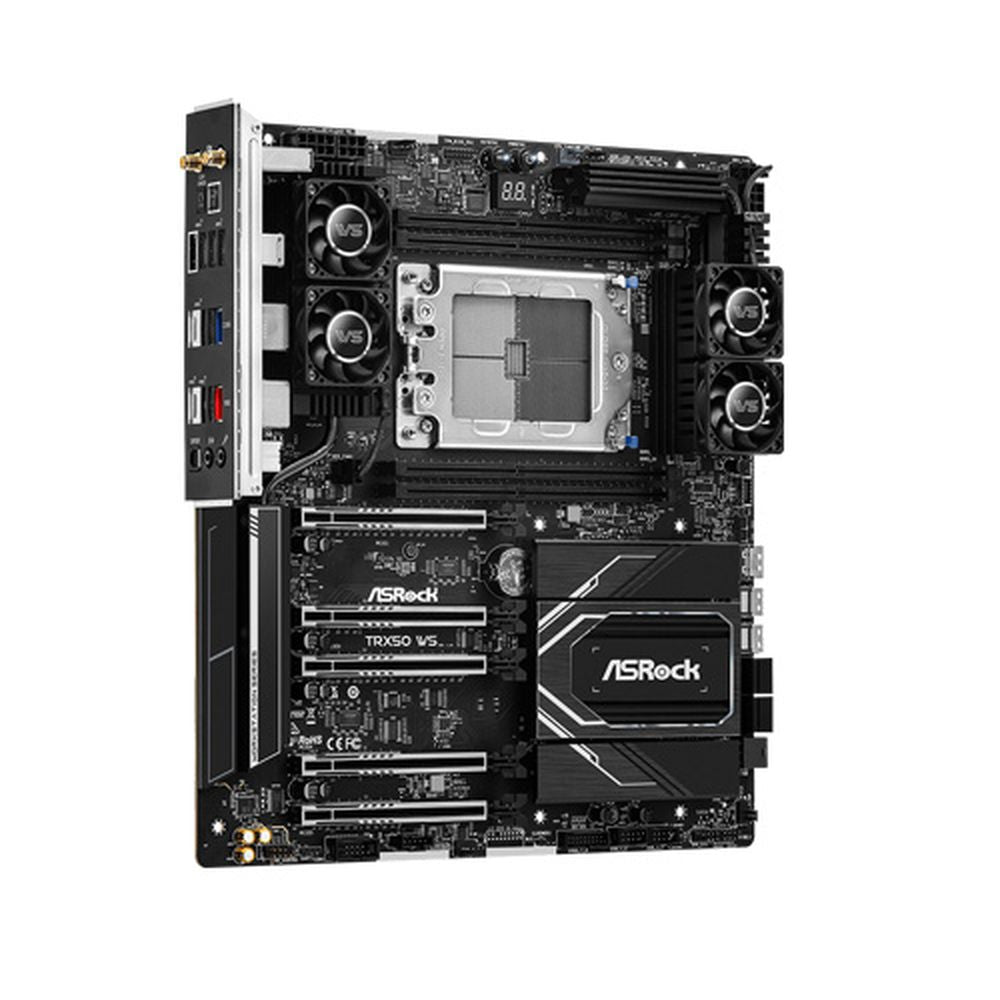

Features of ASROCK TRX50 WS Amd Ryzen 7000 EATX DDR5 STR5 Threadripper Motherboard

• Supports AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series Processors
• 18+3+3 Power Phase Design, 110A SPS for VCore
• Supports 4 DIMMs DDR5 ECC Registered memory
• 3 PCIe 5.0 x16, 2 PCIe 4.0 x16
• Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio
• 4 SATA3,
  -1 Blazing M.2 (PCIe Gen5 x4),1 Hyper M.2 (PCIe Gen4 x4),1 MCIO (PCIe Gen5 x4),2 SlimSAS (PCIe Gen4 x4 / 4 SATA3)
• 1 USB 3.2 Gen2x2 Type-C (Rear), 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 4 USB 3.2 Gen2 Type-A (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 4 USB 2.0 (Front)
• Marvell 10 GbE LAN, Realtek 2.5 Gigabit LAN
• 802.11ax WiFi 6E + Bluetooth

Server Grade Ultra Low Loss PCB

The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

12 Layer PCB

The 12 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

Composite VRM Heatsink

It is equipped with a composite VRM heatsink active cooling fans, XXL aluminum heatsinks and heat pipe for maximum heat dissipation.

DDR5 ECC Memory Support

ASROCK TRX50 WS DIMMs DDR5 RDIMM ECC Memory overclocking with max capacity of 1TB. It can automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability with multiple memory modules.

Specifications of ASROCK TRX50 WS Amd Ryzen 7000 EATX DDR5 STR5 Threadripper Motherboard
