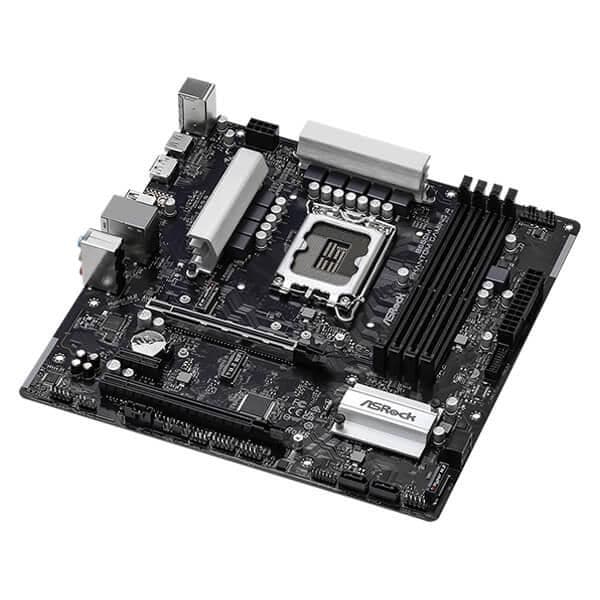

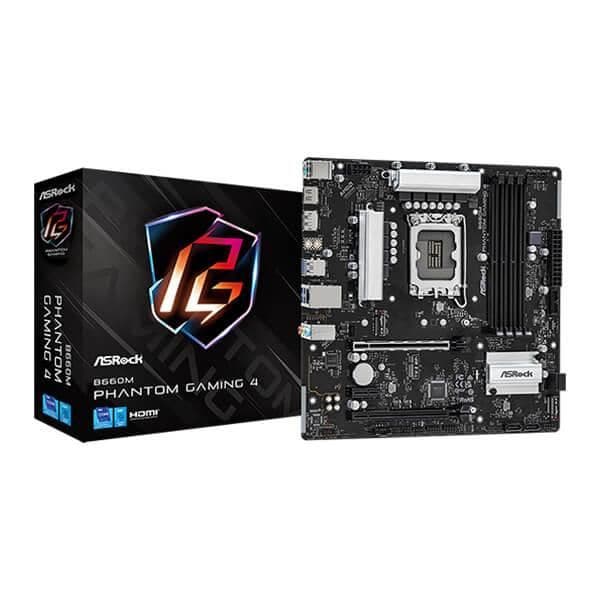

Features of ASROCK B660M Phantom Gaming 4 DDR4 Intel Motherboard

1. ASROCK B660M Supports 12th Gen Intel® Core™ Processors (LGA1700)
2. 8 Phase Power Design
3. Supports DDR4 5333MHz (OC)*
4. 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
5. 1 M.2 Key-E for WiFi
6. Graphics Output Options: HDMI, DisplayPort
7. Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
8. 4 SATA3
9. 2 Hyper M.2 (PCIe Gen4 x4)
10. 6 USB 3.2 Gen1 (4 Rear, 2 Front)
11. 6 USB 2.0 (2 Rear, 4 Front)
12. Intel® Gigabit LAN

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

This motherboard is capable of accomadating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Intel^® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

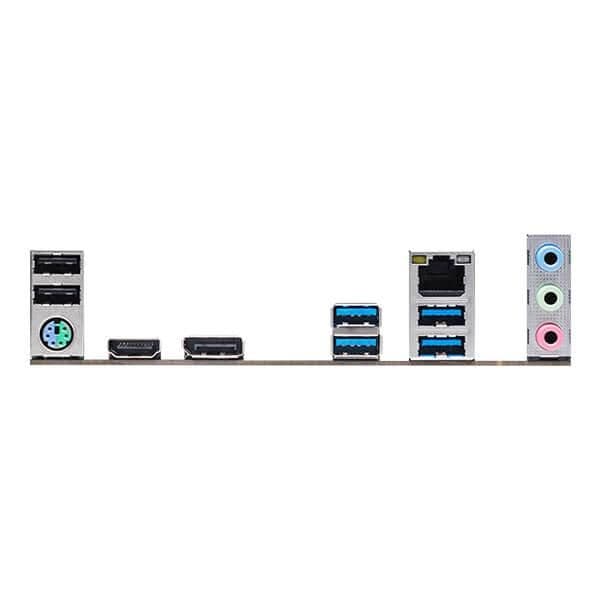

Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

Specifications of ASROCK B660M Phantom Gaming 4 DDR4 Intel Motherboard
