- 29%
Motherboard

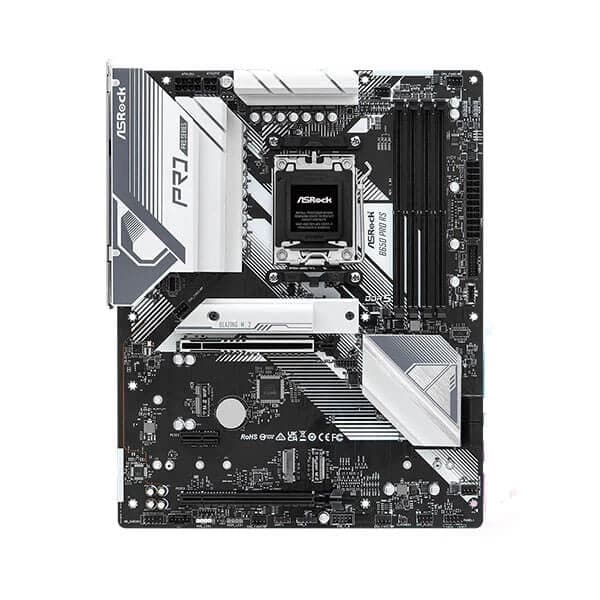

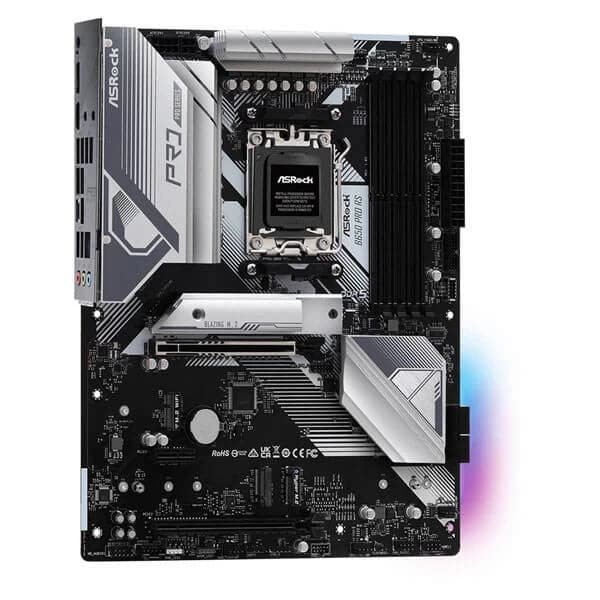

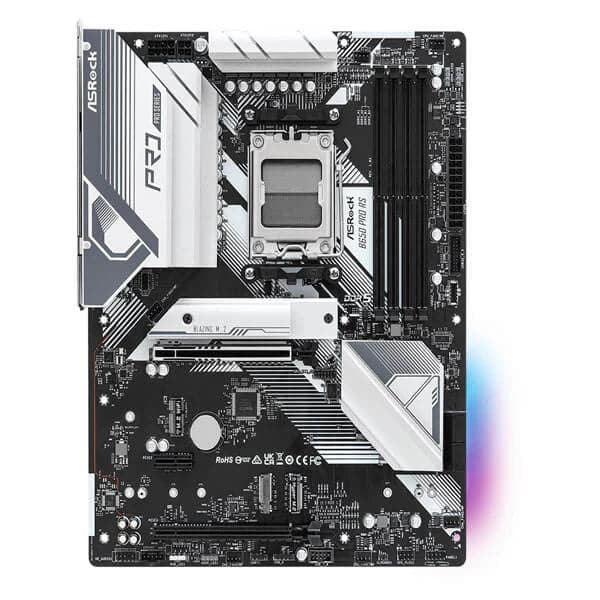

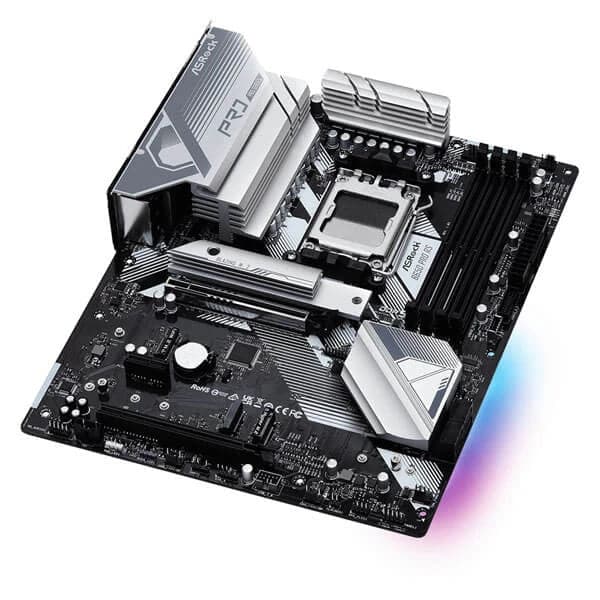

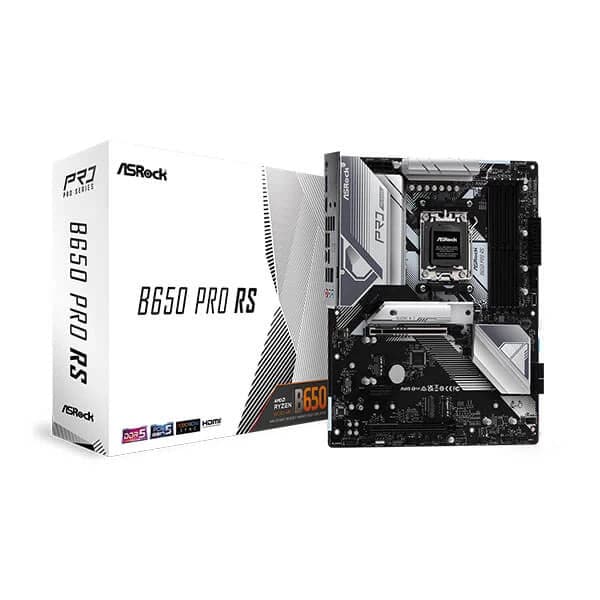

ASROCK B650 Pro RS DDR5 AMD Motherboard
Rs. 27,520.00
Rs. 19,295.00
Out Of Stock
Brand : ASROCK
Asrock-B650-Pro-RS
Safe Payment
Pay with the world’s most payment methods.
Confidence
Protection covers your purchase
Worldwide Delivery
Ship to over 200 countries & regions.
Hotline
+91-99250 02827
Features of ASROCK B650 Pro RS DDR5 AMD Motherboard
- ASROCK B650 Pro RS Supports AMD Ryzen™ 7000 Series Processors
- 14+2+1 Phase Power Design, SPS
- 4 x DDR5 DIMMs, supports up to 6200+(OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2 & SATA3), 4 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 9 USB 2.0 (6 Rear, 3 Front)
- Realtek 2.5G LAN
Specifications of ASROCK B650 Pro RS DDR5 AMD Motherboard
|
Unique Feature
|
Superb Productivity |
| - PCIe Gen5 (M.2) | |
| - Dual Channel DDR5 | |
| Rock-Solid Durability | |
| - 14+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor | |
| - Flexible Integrated I/O Shield | |
| Ultrafast Connectivity | |
| - 2.5G LAN EZ Update | |
| - BIOS Flashback Button | |
| - ASRock Auto Driver Installer | |
| EZ Troubleshooter | |
| - ASRock Post Status Checker | |
| CPU | - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors |
| Chipset | - AMD B650 |
|
Memory
|
- Dual Channel DDR5 Memory Technology |
| - 4 x DDR5 DIMM Slots | |
| - Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC) | |
| - Max. capacity of system memory: 128GB | |
| - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
|
Graphics
|
Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) |
| - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz | |
| - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz | |
|
Audio
|
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| - Nahimic Audio | |
|
LAN
|
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| - Dragon RTL8125BG | |
| - Supports Dragon 2.5G LAN Software | |
| - Smart Auto Adjust Bandwidth Control | |
| - Visual User Friendly UI | |
| - Visual Network Usage Statistics | |
| - Optimized Default Setting for Game, Browser, and Streaming Modes | |
| - User Customized Priority Control | |
|
Slots
|
CPU: |
| - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* | |
| - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode* | |
| Chipset: | |
| - 1 x PCIe 4.0 x1 Slot (PCIE2)* | |
| - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module* | |
| - Supports AMD CrossFire™ | |
| - 15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
| *Supports NVMe SSD as boot disks | |
|
Storage
|
CPU: |
| - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* | |
| Chipset: | |
| - 1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* | |
| - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| - 2 x SATA3 6.0 Gb/s Connectors | |
| ASMedia ASM1061: | |
| - 2 x SATA3 6.0 Gb/s Connectors | |
| *Supports NVMe SSD as boot disks | |
| Supports ASRock U.2 Kit | |
|
Raid
|
- Supports RAID 0 and RAID 1 for SATA storage devices |
| - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* | |
| *Requires additional M.2 NVMe expansion cards to support RAID 10 | |
|
USB
|
- 1 x USB 3.2 Gen2x2 Type-C (Front) |
| - 1 x USB 3.2 Gen2 Type-C (Rear) | |
| - 1 x USB 3.2 Gen2 Type-A (Rear) | |
| - 4 x USB 3.2 Gen1 (2 Rear, 2 Front) | |
| - 9 x USB 2.0 (6 Rear, 3 Front) | |
| *All USB ports support ESD Protection | |
|
Connector
|
- 1 x SPI TPM Header |
| - 1 x Power LED and Speaker Header | |
| - 1 x RGB LED Header* | |
| - 3 x Addressable LED Headers** | |
| - 1 x CPU Fan Connector (4-pin)*** | |
| - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
| - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
| - 1 x 24 pin ATX Power Connector | |
| - 1 x 8 pin 12V Power Connector | |
| - 1 x 4 pin 12V Power Connector | |
| - 1 x Front Panel Audio Connector | |
| - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) | |
| - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) | |
| - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
| - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver) | |
| *Supports in total up to 12V/3A, 36W LED Strip | |
| **Support in total up to 5V/3A, 15W LED Strip | |
| ***CPU_FAN1 supports the fan power up to 1A (12W). | |
| **** CPU_FAN2/WP supports the fan power up to 2A (24W). | |
| *****CHA_FAN1~4/WP support the fan power up to 2A (24W). | |
| CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. | |
|

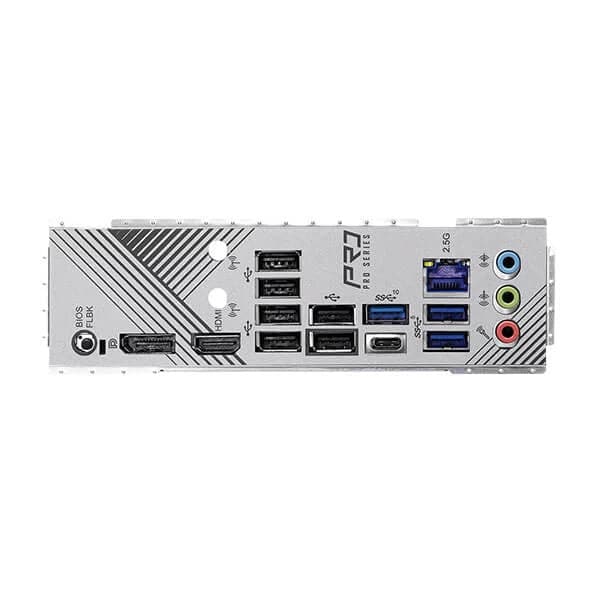

Rear Panel I/O
|
- 2 x Antenna Mounting Points |
| - 1 x HDMI Port | |
| - 1 x DisplayPort 1.4 | |
| - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) | |
| - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) | |
| - 2 x USB 3.2 Gen1 Ports | |
| - 6 x USB 2.0 Ports | |
| - 1 x RJ-45 LAN Port | |
| - 1 x BIOS Flashback Button | |
| - HD Audio Jacks: Line in / Front Speaker / Microphone | |
|
Software and UEFI
|
Software |
| - ASRock Motherboard Utility (A-Tuning) | |
| - ASRock Dragon 2.5G LAN Software | |
| - ASRock Polychrome SYNC* | |
| UEFI | |
| - ASRock Full HD UEFI | |
| - ASRock Auto Driver Installer | |
| - ASRock Instant Flash | |
| *These utilities can be downloaded from ASRock Live Update & APP Shop. | |
|
Accessories
|
- 1 x User Manual |
| - 2 x SATA Data Cables | |
| - 3 x Screws for M.2 Sockets | |
|
Form Factor
|
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| - 8 Layer PCB | |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
|
Certifications
|
- FCC, CE |
| - ErP/EuP ready (ErP/EuP ready power supply is required) |
