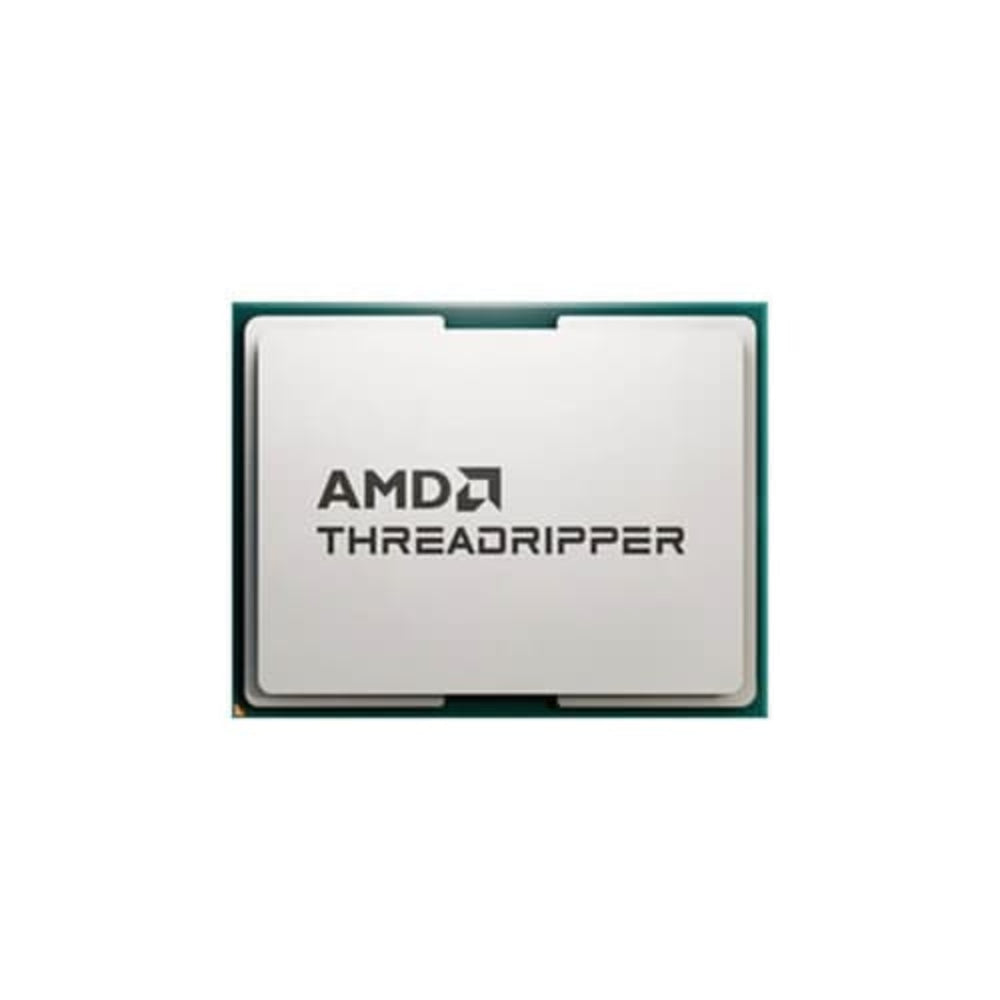

Features of AMD Ryzen Threadripper 7960X 7th Generation Processor ( 5.3GHz / 24 Cores / 48 Threads )

It is part of the Ryzen Threadripper lineup, using the Zen 4 (Storm Peak) architecture with Socket sTR5. Thanks to AMD Simultaneous Multithreading (SMT) the core-count is effectively doubled, to 48 threads. Ryzen Threadripper 7960X has 128 MB of L3 cache and operates at 4.2 GHz by default, but can boost up to 5.3 GHz, depending on the workload. AMD is building the Ryzen Threadripper 7960X on a 5 nm production process using 26,280 million transistors. The silicon die of the chip is not fabricated at AMD, but at the foundry of TSMC. You may freely adjust the unlocked multiplier on Ryzen Threadripper 7960X, which simplifies overclocking greatly, as you can easily dial in any overclocking frequency.

With a TDP of 350 W, the Ryzen Threadripper 7960X is extremely power hungry, which means you need top-notch cooling. AMD's processor supports DDR5 memory with a quad-channel interface. The highest officially supported memory speed is 5200 MT/s, but with overclocking (and the right memory modules) you can go even higher. ECC memory is supported, too, which is an important capability for mission-critical systems, to avoid data corruption. For communication with other components in the machine, Ryzen Threadripper 7960X uses a PCI-Express Gen 5 connection. This processor does not have integrated graphics, you will need a separate graphics card.

Hardware virtualization is available on the Ryzen Threadripper 7960X, which greatly improves virtual machine performance. Programs using Advanced Vector Extensions (AVX) will run on this processor, boosting performance for calculation-heavy applications. Besides AVX, AMD has added support for the newer AVX2 and AVX-512 instructions, too.

Specifications of AMD Ryzen Threadripper 7960X 7th Generation Processor ( 5.3GHz / 24 Cores / 48 Threads )
